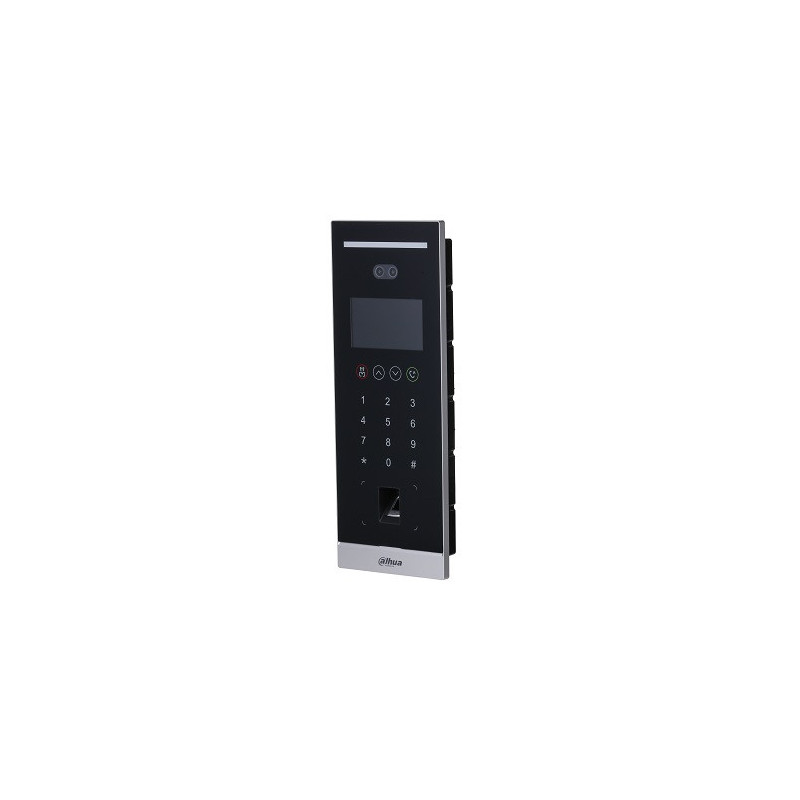

Apartment IP doorbell color camera, 2MP, 4.3' IPS screen, 2MP 1 / 2.7', 87°, IP65
Product reference:
14-6939554988141
Apartment IP outdoor doorbell color camera, 2MP 4.0mm lens, 87.42° viewing angle, Calling to monitors, control center, true WDR, 3D noise reduction, H.264, RJ-45 for internet connection, RS485 camera connection, 4.3'' IPS 800x480 resolution screen, works with SIP protocol, IC card reader, supports up to 20,000 subscribers, 10,000 face recognition, 10,000 fingerprints, 10,000 cards; alarm, door sensor, IP65, PC+ABS housing.
Apartment IP doorbell color camera, 2MP, 4.3' IPS screen, 2MP 1 / 2.7', 87°, IP65
Product reference:
14-6939554988141
Apartment IP outdoor doorbell color camera, 2MP 4.0mm lens, 87.42° viewing angle, Calling to monitors, control center, true WDR, 3D noise reduction, H.264, RJ-45 for internet connection, RS485 camera connection, 4.3'' IPS 800x480 resolution screen, works with SIP protocol, IC card reader, supports up to 20,000 subscribers, 10,000 face recognition, 10,000 fingerprints, 10,000 cards; alarm, door sensor, IP65, PC+ABS housing.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
4 - 5
business days
Short description:
Apartment IP outdoor doorbell color camera, 2MP 4.0mm lens, 87.42° viewing angle, Calling to monitors, control center, true WDR, 3D noise reduction, H.264, RJ-45 for internet connection, RS485 camera connection, 4.3'' IPS 800x480 resolution screen, works with SIP protocol, IC card reader, supports up to 20000 subscribers, 10000 face recognition, 10000 fingerprints, 10000 cards; alarm, door sensor, IP65, PC+ABS housing.
Brief technical characteristics:
• High quality microprocessor.
• Operating system LINUX OS.
• Touch buttons, IP65.
• H.264 Video Compression Technology.
• Video resolution: main stream: 720p, sub stream 1080p.
• Compression rate: main stream: 720P@25fps, sub stream 1080P@25fps.
• 4.3'' IPS 800x480 resolution screen.
• Bit rate: 256Kbps-2048Kbps.
• WDR 120dB.
• Integrated 1/2.7" camera 2MP CMOS FULL HD.
• 4.0 mm lens, F1.6.
• Camera viewing angle 87.42°(H), 46.48°(V), 104.13°(D).
• Night IR illumination.
• The camera allows you to view the image on a computer, IP SIP phone.
• IC card reader, supports 10000 cards.
• Capacity: cards 10000, face database 10000, fingerprints 10000.
• Door, gate opening: password, IC card, fingerprint, face recognition, remote.
• Face scanning distance 0.3-2.0 m, when human height: 1.1-2.4 m; distance from lens to ground: 1.4 m; scanning time 0.2s; accuracy 99.5%.
• Card scanning distance 1cm-5cm.
• The camera can be integrated into an NVR recording device.
• Integrated microphone.
• Integrated speaker.
• Two-way talk.
• 10/100 Mb/s network socket (Ethernet - RJ45) for connecting to the Internet, self-adaptive.
• Network protocols: SIP; P2P; IPv4; FTP; UPnP; DNS; DDNS; RTSP; RTP; TCP; UDP.
• Works with the SIP protocol.
• P2P iCloud technology (IE): Does not require a static IP address, does not need to open ports.
• Calling to monitors, control center, mobile phone, tablet.
• Relay lock control.
• Exit button connection: 1 pc.
• RS-485 connection: 1 pc.
• Wiegand: 1 input/output.
• Alarm: 2 inputs + 2 outputs.
• Door status detection: 1 pc.
• Group calling to no more than 200 VTH monitors.
• Max. supports up to 20000 subscribers, 10000 face recognitions, 10000 fingerprints and 10000 cards.
• Power supply: DC 12V 2A.
• Power consumption: standby mode: up to 5W, working mode: up to 18W.
• Working environment: -30°~+60°C, humidity 10%RH-90%RH (non-condensing).
• Housing material: PC+ABS.
• Protection class: IP65.
• Installation: surface / recessed.
• Dimensions: 388.5mm×145.5mm×43.5mm.
• Weight: 1.0 kg.
| Length | 50mm |
| Height | 160mm |
| Width | 100mm |
| Weight | 800g |
