Antennas - 5G LTE CBRS 2x2 MIMO 1.7-3.8GHz 2x 14dBi with 15m Cables
Product reference: 14-9990000992256
LTE/5G/CBRS 2x2 MIMO antenna operates in the 1710-2690MHz and 3300-3800MHz frequency bands, featuring 2x 14dBi gain. The kit includes two 15 m cables with SMA-male connectors, making it suitable for a variety of mobile network and Wi-Fi applications.
Antennas - 5G LTE CBRS 2x2 MIMO 1.7-3.8GHz 2x 14dBi with 15m Cables
Antennas - 5G LTE CBRS 2x2 MIMO 1.7-3.8GHz 2x 14dBi with 15m Cables
Antennas - 5G LTE CBRS 2x2 MIMO 1.7-3.8GHz 2x 14dBi with 15m Cables

Antennas - 5G LTE CBRS 2x2 MIMO 1.7-3.8GHz 2x 14dBi with 15m Cables

Product reference: 14-9990000992256
LTE/5G/CBRS 2x2 MIMO antenna operates in the 1710-2690MHz and 3300-3800MHz frequency bands, featuring 2x 14dBi gain. The kit includes two 15 m cables with SMA-male connectors, making it suitable for a variety of mobile network and Wi-Fi applications.
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
77,06 €
Product in warehouse

Guarantee
24 month

Delivery from Europe in
4 - 5
business days

Your message has been successfully sent!
Fill in the required fields*

5G / LTE / CBRS 2x2 MIMO Antenna, 1.7-3.8GHz, 2x 14dBi


LTE/5G/CBRS 2x2 MIMO antenna operates in the frequency range from 1710 to 2690MHz and from 3300 to 3800MHz, with 2x 14dBi amplification. The kit includes two 15 m cables with SMA-male connectors, suitable for various mobile network and Wi-Fi applications.


  • Supports LTE, 3G/4G/5G and CBRS applications with dual gradient polarization.
  • High 2x 14dBi gain, ensuring better signal strength and coverage.
  • The kit includes two 15 m long cables and is equipped with lightning protection to ensure durability.
  • Eco-friendly design with a wide operating temperature range from -40°C to +70°C.

Features

Product type 5G / LTE / CBRS 2x2 MIMO Antenna
Model 2x14dBi

Specifications

Frequency range 1710-2690MHz / 3300-3800MHz
Strengthening 2x 14dBi
VSWR lt;2
Impedance 50 ohms
Maximum power per port 50W
Connection SMA-man.
Cables RG58 copper x2
Cable length 15m

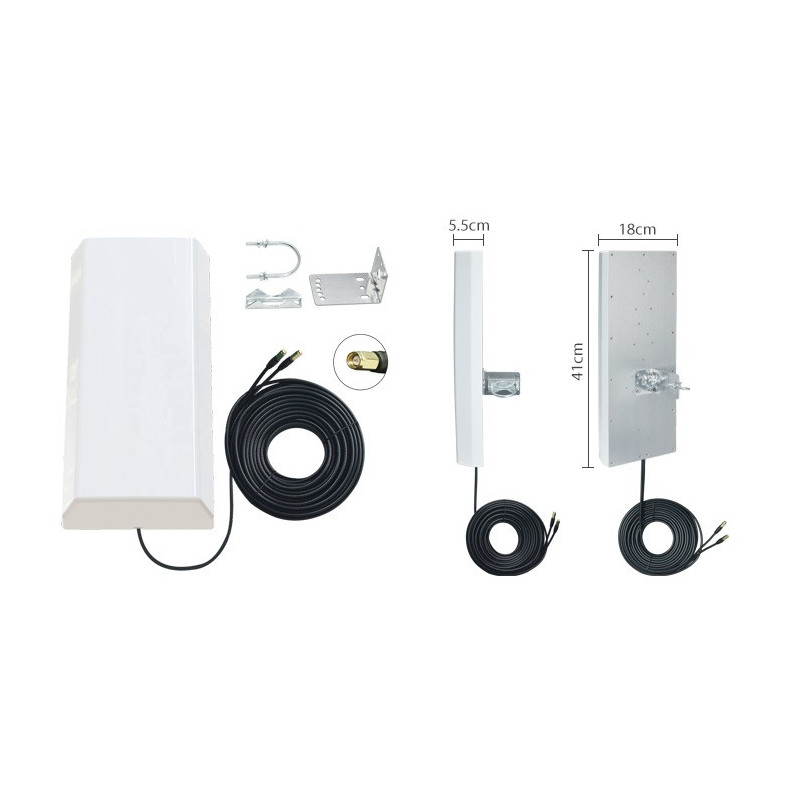

Installation On a pole: diameter 30-50 mm
Material PC, ABS
Dimensions 410 x 180 x 55 mm
Polarization Double slope +/-45°
Color White
Weight 2.5 kg
Operating temperature -40°C to +70°C
Operating humidity Up to 95% RH

Height450mm
Length450mm
Weight750 g
Width50mm
