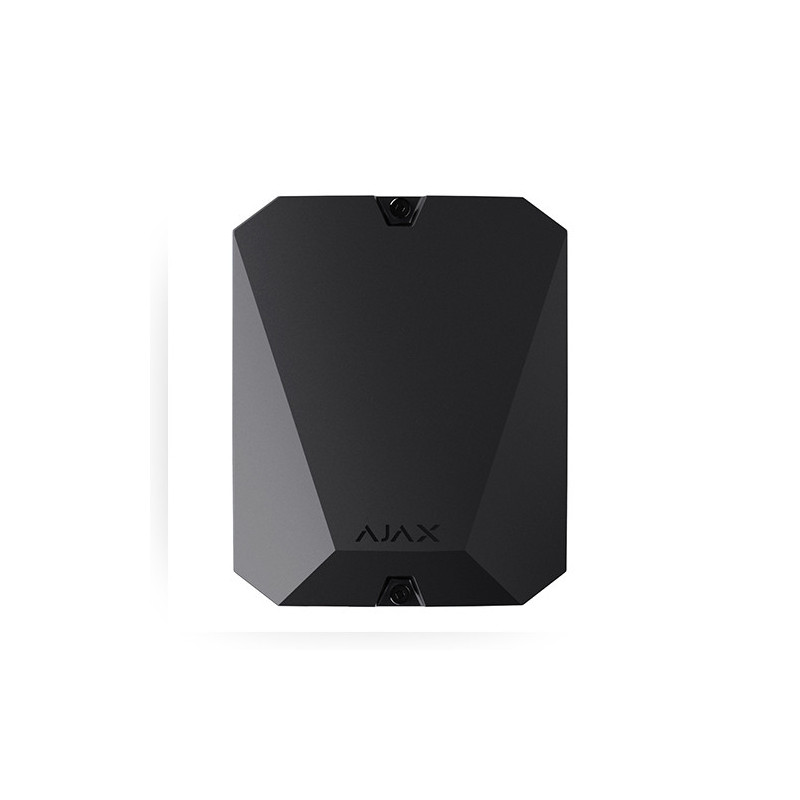

Ajax MultiTransmitter module (black)

Ajax MultiTransmitter module (black)

The Ajax MultiTransmitter module is designed to connect wired alarms to Ajax security systems via an app.
The second life of wired alarm systems
The MultiTransmitter module replaces the old security control module and ensures the connection of wired devices via radio with Ajax security systems. Easy device compatibility and a user-friendly app make alarm system updates simple. The module guarantees the stability of security systems, resistance to threats and the updating and improvement of functions.
More Ajax features
IR barriers, household gas, temperature, liquid level detectors and other devices are ready to expand the scope of Ajax. Connect them via the MultiTransmitter module and control the combined security system in the Ajax app.
Data-rich alarms
Using the Ajax MultiTransmitter module, you can specify the alarm type and room for each wired device. This feature makes notifications more informative. You know not only what happened, but also where. This information is displayed using a direct message, SMS, and is also sent to security companies, according to the corresponding codes. There are 5 types of alarm codes in total: intrusion, fire, medical assistance, panic button, gas leak.
Intrusion confirmation within 9 seconds
Connect the MotionCam motion detector with a camera to know for sure if there are intruders in the area. The camera is only turned on when the kai system is turned on and motion is detected. Unlike video surveillance systems, the detector securely captures images within seconds and transfers them to the app only to those users who have been granted viewing rights.
Easy assembly and installation
We made sure that the installation and setup process does not require additional time or effort. Ajax The MultiTransmitter module connects by scanning the QR code. Also, the system will warn if the device has not been connected properly.
Technical data:

• Dimensions: 196 x 238 x 100 mm.


• Weight: 805g.


• Color: black.


• Number of alarm zones: 18.


• Supported detector connection types: NO, NC (without R), EOL (NC with R), EOL (NO with R).


• Main power supply: 110-255 V, 50/60 Hz.


• Backup power: 12 V DC.


• Detector power supply: 12 V DC, up to 1A for all detector power outputs.


• Radio signal frequency: 868.0-868.6 MHz or 868.7-869.2 MHz, depending on the region.


• Compatibility: works with all Ajax control panels and range extenders.


• Maximum radio signal power: up to 7.29 mW (25 mW limit).


• Radio signal range: line of sight to 2000m.


• Operates at temperatures: from -10°C to +40°C.

Package:

• MultiTransmitter module.


• Installation kit.


• Power cable.


• Instruction.
