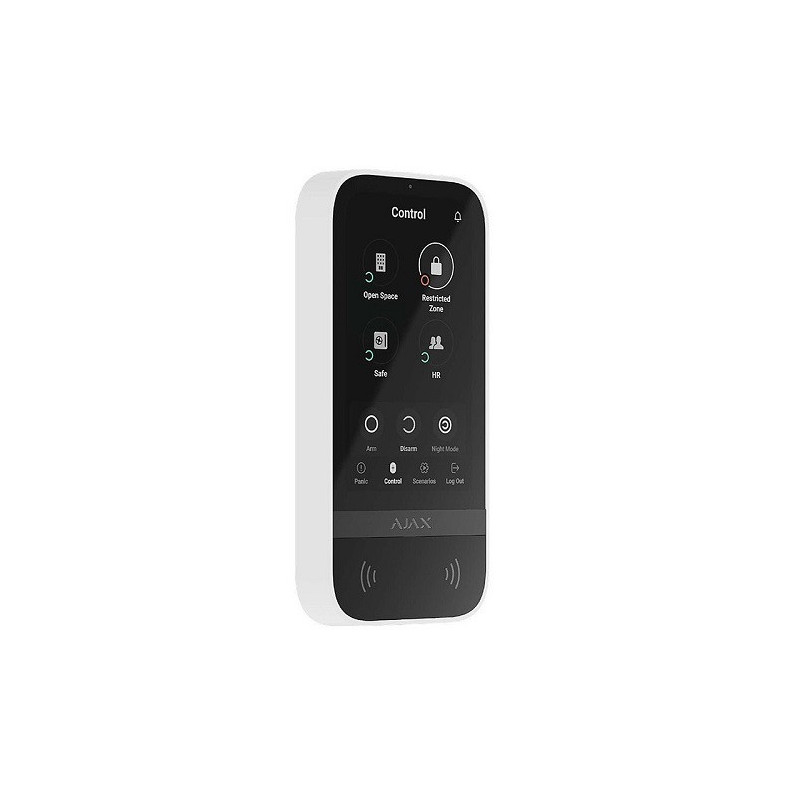

Ajax KeyPad TouchScreen wireless control keyboard with touch screen (white)

Ajax KeyPad TouchScreen wireless control keyboard with touch screen (white)
Ajax KeyPad TouchScreen wireless control keyboard is designed to control the Ajax security system - arm, disarm, activate certain zones. Safe and convenient to use - the protection is activated by touching just one button or entering a code. Also supports remote access RFID tags and remote access cards.
Long distance is not an obstacle
Freedom to choose the location of the device is also provided by the unique Jeweler/Wings wireless technology, which not only guarantees an extremely reliable and fast connection between the wireless control keyboard and the smart control panel Ajax Hub. The device can be mounted up to 1700 meters away from the system control center Ajax Hub. Jeweler is a patented wireless communication technology for transmitting commands, alarms and events. Wings is a patented wireless communication technology designed to transmit a list of groups, rooms and detectors for creating a fault list.
Highest level of data protection
Fast and secure user authentication using DESFire® technology, which is based on the international ISO 14443 standard and combines comprehensive 128-bit encryption and protection. This technology is also used in European capital transport systems and NASA access systems.
Versatile burglary protection system:
Users and security receive a notification when the keypad is removed from the holder. Password guessing lockout: three consecutive incorrect codes enter the keypad and activate the alarm. If an invalid card or token is attempted, the system activates the alarm. Synchronization intervals: the system detects a loss of communication with the keypad in less than a minute. In case of a break-in, a silent alarm signal is sent to the monitoring station as soon as an attempt to disarm the system is detected.
Danger code - for special cases
The wireless control keyboard Ajax KeyPad TouchScreen provides the ability to enter an alarm code, which when entered, the system immediately sends an alarm signal to the security service. In addition, the keyboard simulates the system shutdown, without arousing suspicion in the criminal.
100% protection
Ajax KeyPad TouchScreen has special protection against the methods used by criminals to suppress security systems - a unique system that prevents communication signals from being suppressed by an encrypted signal. The smart control panel, periodically sending signals, also constantly checks the operation of the detectors.
Easy installation and management
You can connect the wireless control keyboard Ajax KeyPad TouchScreen to the Ajax security system by scanning the QR code on the packaging with a smart device and performing a few steps in the "Ajax Security System" app (Android, iOS). The wireless control keyboard Ajax KeyPad TouchScreen supports two-way communication with the smart control center Ajax Hub, so you will always receive confirmation that the command has been executed. In addition, thanks to the special "SmartBracket" holder, you can easily attach the device to vertical surfaces.
Quick and easy user connection
Ajax systems support up to 200 tokens or cards. There is no need to create Ajax accounts for new users, just specify the device and define access permissions.
Unique touchscreen control experience
The high-resolution screen accommodates all the necessary controls, ensuring a visually stunning and high-quality image. Thanks to automatic brightness adjustment and elegant glass material, the product is aesthetically pleasing and comfortable. The screen is bright during the day, not dazzling at night. It is protected from scratches, cracks, etc.
Exceptional autonomy
The wireless control keyboard Ajax KeyPad TouchScreen uses standard replaceable AA batteries. The device consumes energy extremely economically, so one set of batteries will last up to 1.5 years. The keyboard will warn the monitoring station and users in advance about the need to replace the batteries. It is possible to connect to a 12V power source to ensure uninterrupted operation, in which case the batteries will serve as an additional security guarantee.
Notes:

• The Ajax KeyPad TouchScreen wireless control keyboard is not a standalone device. It must be paired with the Ajax Hub smart control panel.


• You also need to have a smart device with Android or iOS with BLE 4.2 and above.


• Batteries are pre-installed in the device, and a 12V power supply is purchased separately.


• The backlight life is calculated for always-on display mode. It can be adjusted via Ajax to be activated as needed.


• The number of users specified is the number supported by the Ajax KeyPad TouchScreen. It depends on the Ajax Hub control panel module.


• The 24-month warranty period does not apply to batteries.

Technical data

• Connection type: wireless.


• Place of use: indoors only.


• Compatibility: Ajax Hub 2 (2G), Hub 2 (4G), Hub 2 Plus, Hub Hybrid (2G), Hub Hybrid (4G), ReX 2 connection extender.


• Sensor: capacitive.


• Screen diameter: 5 inches.


• Screen type: IPS.


• Screen resolution: 480x854 pixels.


• Brightness settings: automatic/manual.


• Backlight lifespan: 30,000 hours


• User codes: up to 200.


• Number of unregistered users: up to 99.


• Security code: yes.


• Additional security code: yes.


• Burglary protection: yes.


• On/off indicator: yes.


• Panic buttons: 3


• Violation signal: yes.


• Signal power: 20 mW.


• Communication protocols: Jeweller (868.0-868.6 MHz) / Wings (868.0-868.6 MHz).


• Maximum distance between detector and control panel: 1700 m (in open area).


• Contactless access: DESFire® EV1, EV2, ISO14443-A (13.56MHz); tokens, cards.


• Burglary protection: identification and alarm activation when using an invalid card/token; jam detection; blocking after entering an incorrect password 3 times; notifications about keyboard removal or loss of connection to the keyboard within 1 minute.


• Operating voltage: 10.5-14V (max. 0.4A).


• Nominal voltage: 12V (12V power supply purchased separately).


• Battery type: 6xAA.


• Battery life: up to 1.5 years.


• Battery charging indicator: yes.


• Operating temperature: from -10°C to + 40°C.


• Operating humidity: up to 75%RH.


• Dimensions: 172x82x26 mm.


• Weight: 327 g.


• Color: white.
