AJAX KeyPad Plus wireless control keyboard (white)

AJAX KeyPad Plus wireless control keyboard (white)

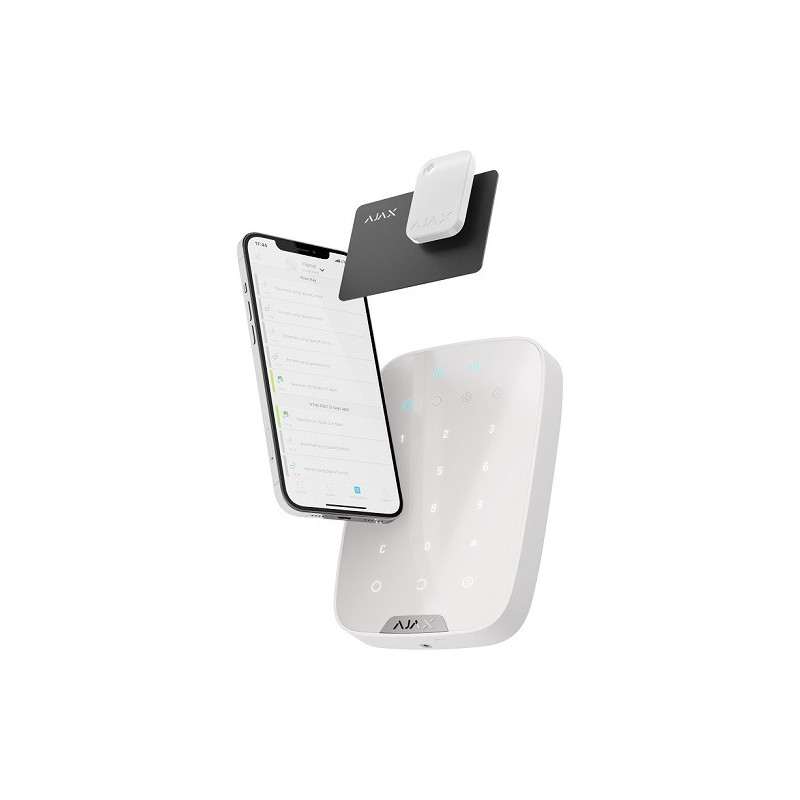

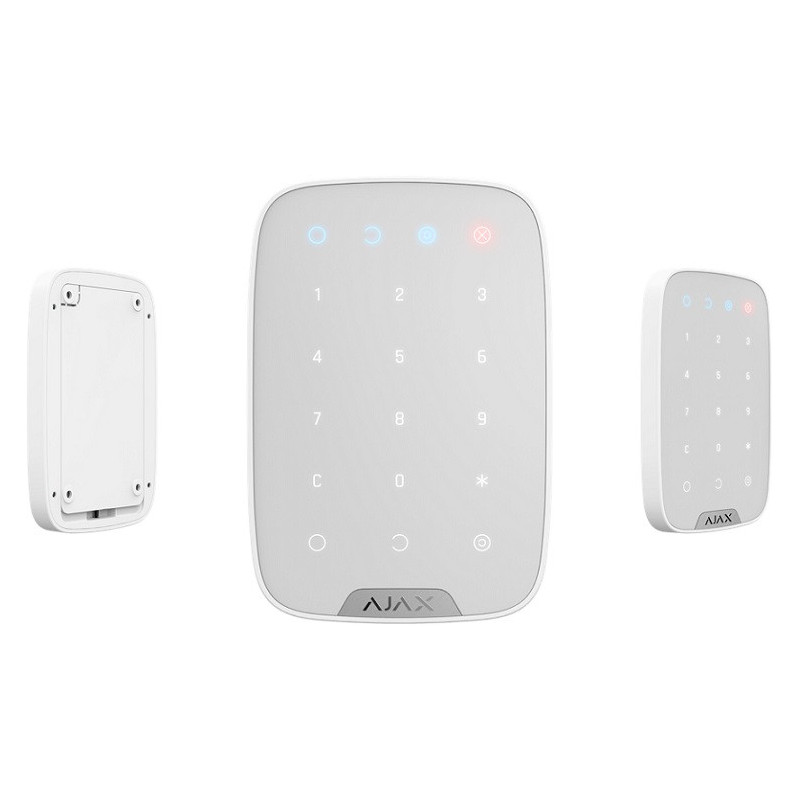

Ajax KeyPad Plus wireless control keyboard is designed to control the Ajax security system - arm, disarm, activate certain zones. Safe and convenient to use - the security is activated by pressing a button, entering a code or touching the Ajax with a card/token.
Long distance is not an obstacle
Freedom to choose the location of the device is also provided by the unique wireless technology Jeweler, which not only guarantees an extremely reliable and fast connection between the wireless control keyboard and the smart control center Ajax Hub. The device can be mounted up to 1700 meters away from the system control center Ajax Hub.
Highest level of data protection
Fast and secure user authentication using DESFire® technology, which is based on the international ISO 14443 standard and combines comprehensive 128-bit encryption and protection. This technology is also used in European capital transport systems and NASA access systems.
Smart security control panel allows you to create your own scenarios. For example, when the alarm is activated, the system turns off the lights, water and electrical appliances or closes the blinds with one press of a button.
Quick and easy user connection
Ajax systems support up to 200 tokens or cards. There is no need to create Ajax accounts for new users, it is enough to specify the device and define access permissions.
Versatile burglary protection system:
Users and security receive a notification when the keypad is removed from the holder. Password guessing lockout: three consecutive incorrect codes enter the keypad and activate the alarm. If an incorrect card or token is attempted, the system activates the alarm. Synchronization intervals: the system detects a loss of communication with the keypad in less than a minute. In the event of a break-in, as soon as an attempt to disarm the system is detected, a silent alarm signal is sent to the monitoring station. The "danger (or duress) code" allows you to simulate disarming without arousing suspicion from the criminal, but the alarm signal is instantly transmitted to the central monitoring station.
Remote access control:
Set personal passwords to know who disarmed the system and when: the username is displayed in the message and in the event log. A card or token can also be assigned to a specific user with defined permissions to manage the security of certain groups or the entire territory. Ajax application allows you to manage access permissions in real time. You can limit, expand or instantly block access.
Exceptional autonomy
Completely new software takes full advantage of the pre-installed batteries. Even with daily use of the contactless identification function, the keypad will operate without changing the batteries for 3.5 years. When the card and token reader is turned off, the battery life reaches 4.5 years. The keypad will warn the monitoring station and users in advance about the need to change the batteries.
Easy installation
This keyboard is connected and configured in Ajax applications. No need to disassemble the case or insert batteries. You can add it to the system simply by scanning the QR code. The installation engineer only needs to test the device, add cards and set access permissions.
Note: Wireless control keyboard Ajax KeyPad Plus is not a standalone device. To use its full capabilities, it must be paired with the smart center Ajax Hub. You also need to have a smart device with Android 4.1, iOS 9 or a later version of these operating systems.
Technical data:

• Connection type: wireless.


• Place of use: indoors only.


• Compatibility: "Hub Plus", "Hub 2", "Hub 2 Plus", "ReX" with "OS Malevich 2.11" and later versions.


• Keyboard type: touch.


• Number of buttons: 15.


• Security code: yes.


• Burglary protection: yes.


• On/off indicator: yes.


• Personal codes: yes.


• Password guessing protection: yes.


• Contactless access: DESFire® EV1, EV2, ISO14443-A (13,56MHz); tokens, cards.


• Temperature sensor: yes.


• Violation signal: yes.


• On/off status indication: yes.


• Signal power: up to 20 mW.


• Communication protocol: Jeweller (868.0-868.6 MHz).


• Maximum distance between detector and control panel: 1700 m (in open area).


• Data encryption with a dynamic key.


• Sensor check: (optional) 12-300 s.


• Burglary protection: identification and alarm activation when using an invalid card/token; jam detection; blocking after entering an incorrect password 3 times; notifications about keyboard removal or loss of connection to the keyboard within 1 minute.


• Battery type: 4x AA lithium (FR6).


• Supply voltage: 1.5 V.


• Battery life: up to 4.5 years.


• Operating temperature: from -10°C to +40°C.


• Operating humidity: up to 75%.


• Dimensions: 165 x 113 x 20 mm.


• Weight: 267 g.


• Color: white.

Package:

• Wireless control keyboard.


• Batteries x4 AA.


• Installation kit.


• Instructions for use.
