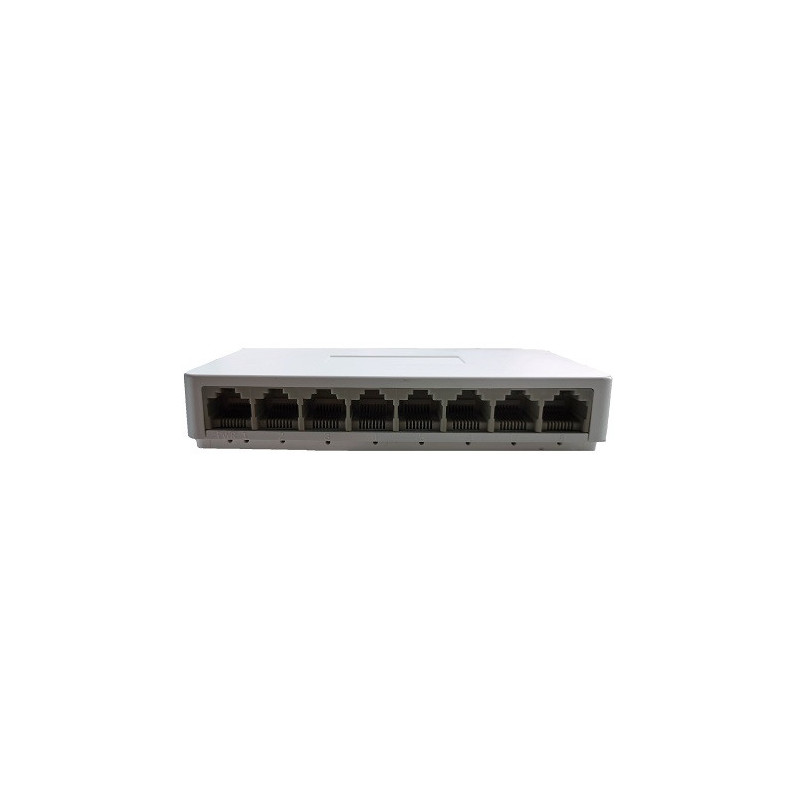

8-port Gigabit network hub

8-port 1000M Ethernet network hub.
Features:

• The hub has 8 RJ45 ports per 10/100/1000Mbps, auto MDI/MDIX (auto-sensing).


• PlugPlay, no configuration required. Automatic detection of parallel/crossed lines, simplified network structure and maintenance.


• Supports connection of IP cameras, wireless AP.


• Store-and-Forward data storage is supported.


• 1000M wired fast data transfer, 7x24val smooth network operation.


• Energy-saving device, maximum total energy consumption lt;6W.


• Convenient desktop/wall mounting.


• It is a security system network hub suitable for environments such as residential homes, school dormitories, offices and small-scale surveillance system, etc.

Technical data:

• Network protocols: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE802.3ab, IEEE802.3z.


• Ports: 8x10/100/1000Mbps auto-sensing RJ45 ports.


• MAC address table: 2000.


• Buffer memory: 4M.


• Input voltage: AC 100-240V. frequency: 50-60Hz, current 0.5A.


• External power adapter: 5V/1A.


• Power consumption: standby: 0.7W; full load: lt;6W.


• Operating temperature: -20°C ~ +55°C.


• Operating humidity: 10-90% RH.


• Size: 128x62x22 mm.


• Certificates: FCC; CE; RoHS.
