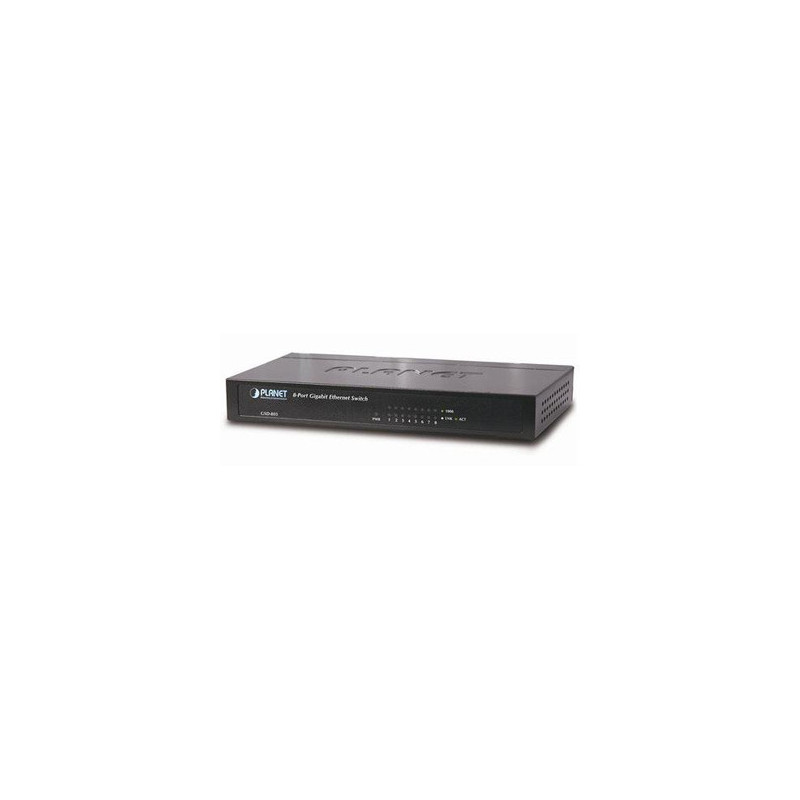

8-port Gigabit Internet Network Hub Planet GSD-805-EU

Short description:
• Gigabit Internet network hub 8-ports;
• 8 x 10/100/1000Mbps, metal housing;
• Auto-MDI/MDIX for all ports;
• Supports CSMA / CD protocols;
• Complies with Internet standards: IEEE 802.3, 10Base-T, IEEE 802.3u, 100Base-TX, IEEE 802.3ab 1000Base-T;
• MAC address memory: 8k Bit;
• Power supply 100-240V AC, 50/60Hz, 0.2A;
• Dimensions: 191(L) x 85.7(W) x 26.3 (H) mm .
Technical characteristics:
• 10/100/1000Base-T ports: 8
• Dimensions (W x H x D) 191 x 85 x 26 mm
• Weight: 390 g
• Power requirement: Internal power 100-240 V AC, 50/60 Hz, 0.2 A
• Power consumption / dissipation: 9.6 watts / 32 BTU
Switch specification
• Switch processing scheme: Store and forward
• Address table: 4K entries
• Shared data buffer: 1 Mbit chip frame buffer
• Flow Control: Half-duplex pressure, IEEE 802.3x pause frame for full-duplex communication
• Switching Fabric: 16 Gbps
• Throughput (packet per second): 11.9 Mpps
• Network Cables: 10/100/1000Base-T:Cat. 3, 4, 5, 5e, 6 UTP cable (100 meters, max.) EIA / TIA-568 100 ohm STP (100 meters, max.)
Standards Compliance
• Standards Compliance: IEEE 802.3: Ethernet IEEE 802.3u: Fast Ethernet IEEE 802.3ab: Gigabit Ethernet IEEE 802.3x: Full Duplex Flow Control
• Temperature Operating: 0-50 degrees C
• Storage: - 40-70 degrees C
• Humidity, operating: 5-90%
• Storage: 5-90% (non-condensing)
• Compliance FCC Part 15, Class A, CE
