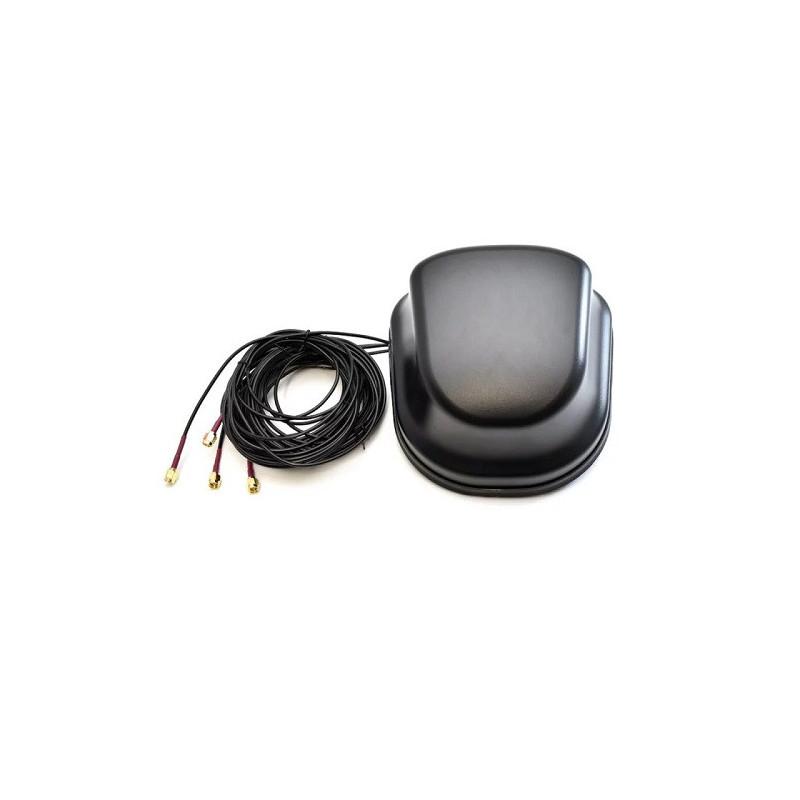

5G NR MIMOx4 antenna, 698~960 / 1710~2690 / 2900~3800 / 4400~5000MHz, 4dBi, IP67

5G NO MIMOx4 antenna, 698~960MHz / 1710~2690MHz / 2900~3800MHz / 4400~5000MHz, 4dBi, IP67
Features:

• Linear polarization 5G New Radio MIMOx4 antenna, 698~960MHz / 1710~2690MHz / 2900~3800MHz / 4400~5000MHz, 4dBi.


• 5G New Radio technology is adapted to the global 5G radio communication standard.


• With 4x 3m length cables.


• Environmentally friendly, complies with ROHS standards.

Technical specification:

• Frequency: 698~960 / 1710~2690 / 2900~3800 / 4400~5000 MHz.


• Gain: 4 dBi.


• VSWR: lt;3.0.


• Impedance: 50 ohms.


• Connector: SMA-male.


• Cable: LMR100 x4.


• Cable length: about 3m.

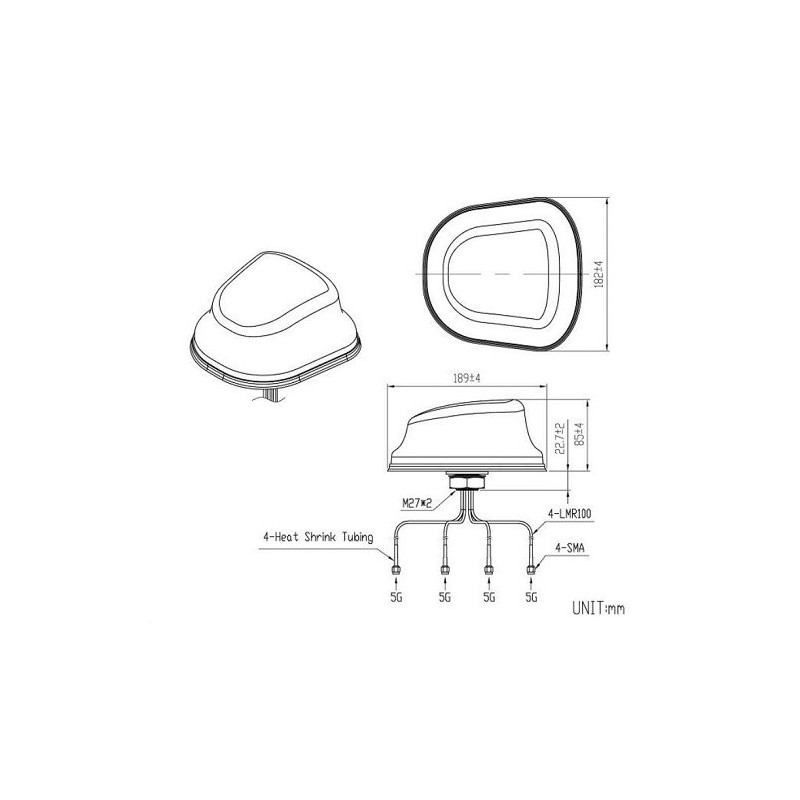

• Antenna dimensions: 189.6x85x182 mm.


• Fastening: screw.


• Material: PC, ABS.


• Security class: IP67.


• Linear polarization.


• Color: black.


• Operating temperature: -40°C~ +85°C.


• Operating humidity: up to 95%RH.
