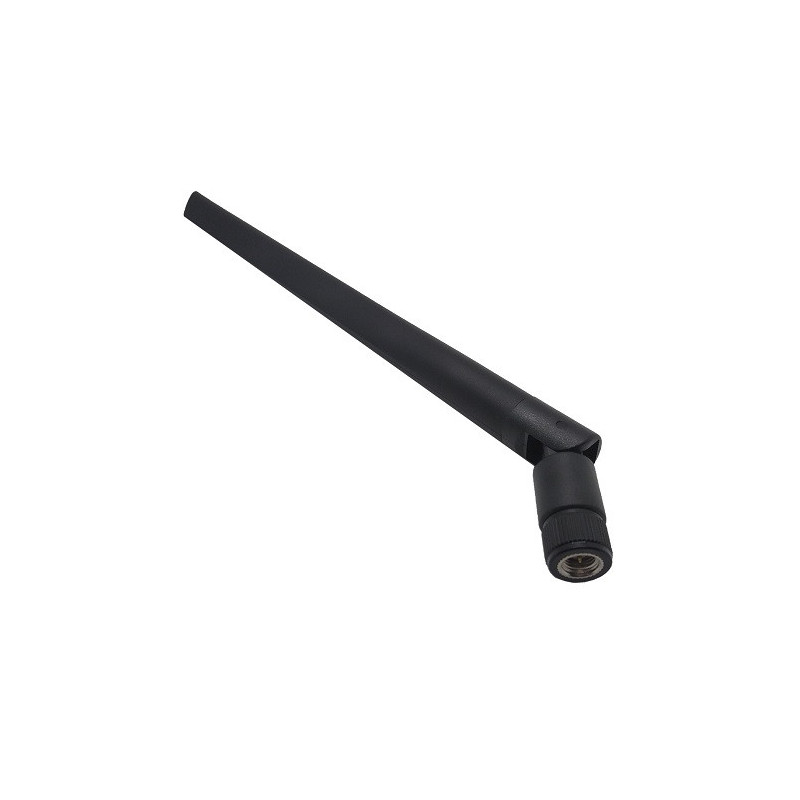

5G NR antenna, 617~960 / 1710~2690 / 3300~3800MHz, 3dBi, 18cm

5G NR antenna, 617~960 / 1710~2690 / 3300~3800 MHz, 3dBi, ~18cm
Features:

• Linear polarization 5G New Radio antenna, 617~960 / 1710~2690 / 3300~3800 MHz, 3dBi, about 18cm long.


• 5G New Radio technology is adapted to the global 5G radio communication standard.


• The antenna is straight, can be tilted up to 90 degrees.


• Environmentally friendly, complies with ROHS standards.

Technical specification:

• Frequency: 617~960 / 1710~2690 / 3300~3800 MHz.


• Gain: 3 dBi.


• VSWR: lt;3.0.


• Impedance: 50 ohms.


• Connector: SMA-male.

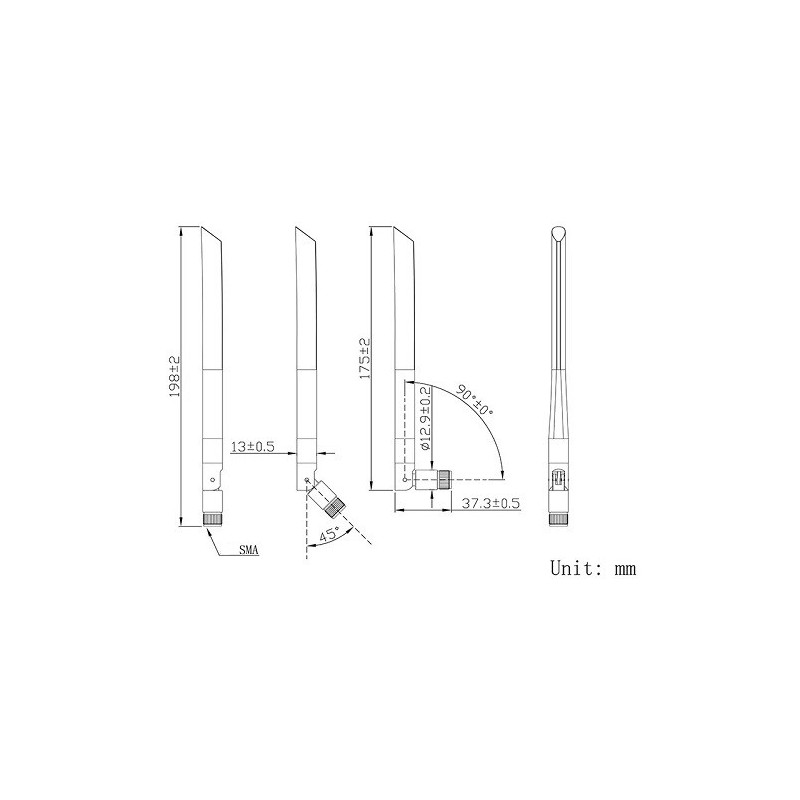

• Antenna dimensions: 175x13x13 mm, length with screw 198mm.


• Mounting: on a screw.


• Material: ABS.


• Linear polarization.


• Color: black.


• Operating temperature: -40°C~ +85°C.


• Operating humidity: up to 95%RH.
