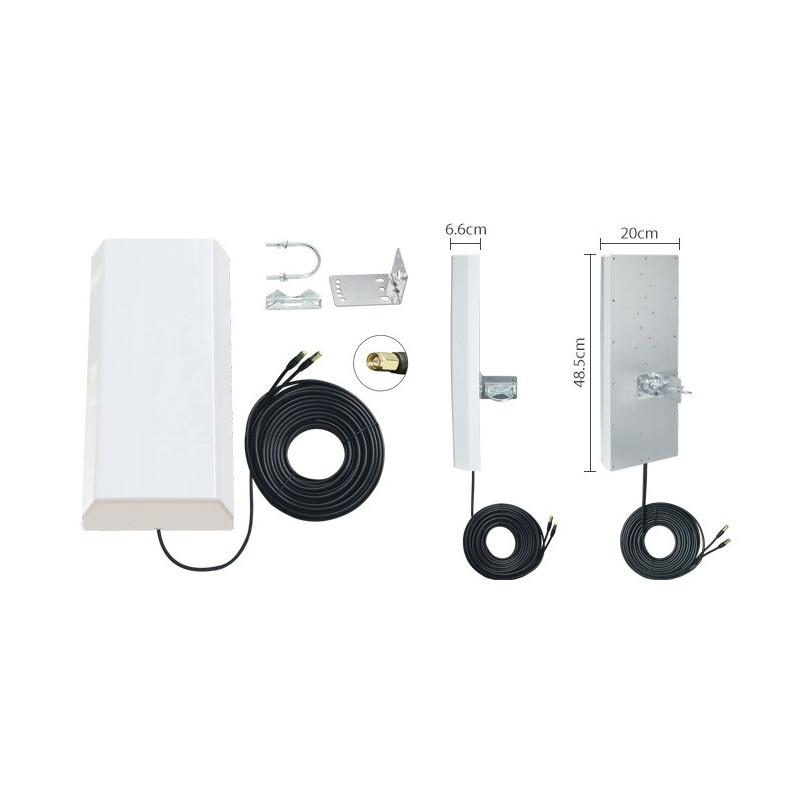

5G / LTE / CBRS 2x2MIMO antenna, 1.7-3.8GHz, 2x 18dBi

LTE/5G/CBRS 2x2 MIMO antenna, 1710-2690MHz / 3300-3800MHz, 2x 18dBi, SMA-Male connector
Features:

• Dual polarization panel design antenna, 1710-2690MHz / 3300-3800MHz, 2x 18dBi.


• Application: LTE, 3G/4G/5G, CBRS, mobile networks, DAS (Distributed Antenna Systems), Wi-Fi IEEE802.11b/g/n.


• With 2x 15m length cables.


• Lightning protection DC grounding.

Technical specification:

• Frequency: 1710-2690MHz / 3300-3800MHz.


• Gain: 2x 18 dBi.


• VSWR: lt;2.


• Impedance: 50 ohms.


• Max. power per port: 50W.


• Connector: 2x SMA-male.


• Cables: 2x RG58 copper.


• Cable length: about 15m.


• Mounting: on a pole with a diameter of 30-50mm.


• Material: PC, ABS.


• Dimensions: 485 x 200 x 66 mm.


• Polarization: dual polarization +/-45°.


• Color: white.


• Weight: 1.5kg.


• Operating temperature: -40°C~ +70°C.


• Operating humidity: up to 95%RH.
