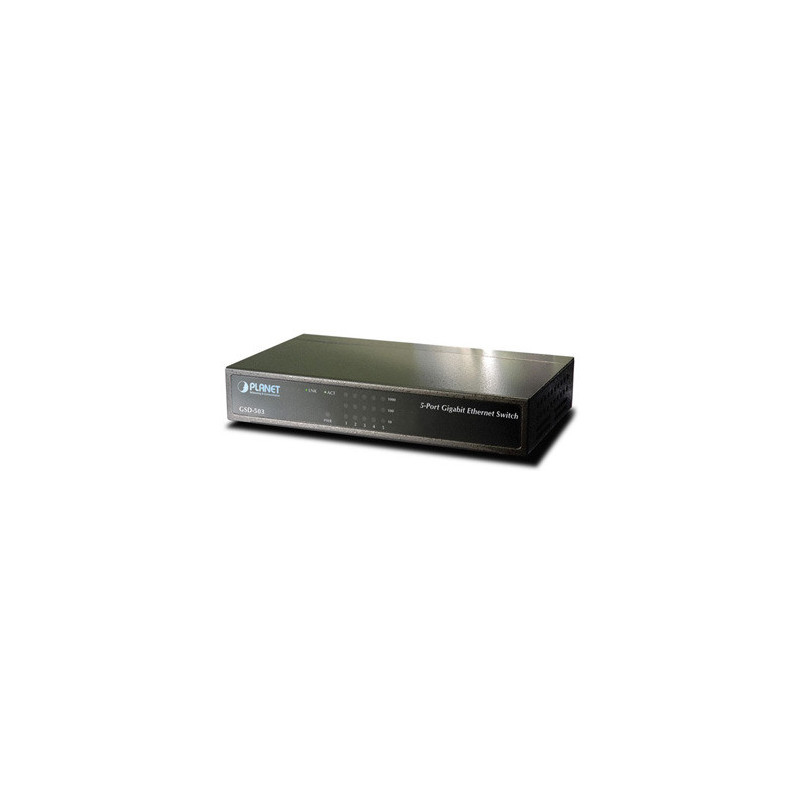

5-port Gigabit Internet Network Hub Planet GSD-503-EU

Short description:
• Gigabit Internet network hub 5-prievadų;
• 5 x 10/100/1000Mbps, metal housing;
• Auto-MDI/MDIX for all ports;
• Supports CSMA / CD protocols;
• Complies with Internet standards: IEEE 802.3, 10Base-T, IEEE 802.3u, 100Base-TX, IEEE 802.3ab 1000Base-T ;
• MAC address memory: 8k Bit;
• External power adapter 12V 0.5A;
• Dimensions: 155(L) x 86(W) x 26 (H) mm.
Technical characteristics:
• Hardware version: 5.0
• 10/100/1000Base-T Ports: 5 auto MDI /MDIX ports
• Housing: metal
• On/off button: 1
• Dimensions (W x D x H) 155 x 86 x 26 mm
• Weight (g)360
• Power requirement: external power adapter 12V, 500mA
• Power consumption / dissipation (fully operational): 4.4 watts / 15 BTU
switch specification
• Switching processing scheme: switch and forward
• Address table: 8K entries
• Flow control: Half-duplex pressure, IEEE 802.3x pause frame full-duplex diameter
• Switching fabric: 10 Gb/s
• Throughput (packet per second): 7.44 Mpps
• Jumbo packet size: 9K
Compliance with standards
• Standards Compliance: IEEE 802.3 (Ethernet) IEEE 802.3u (Fast Ethernet) IEEE 802.3ab (Gigabit Ethernet) IEEE 802.3x (Full Duplex Flow Control)
• Temperature Operating: 0-50°C
• Storage: -10-70°C
• Humidity, Operating, Storage: 5-90%, Storage: 5-90% (non-condensing)
• Regulatory Compliance FCC Part 15, Class A, CE
