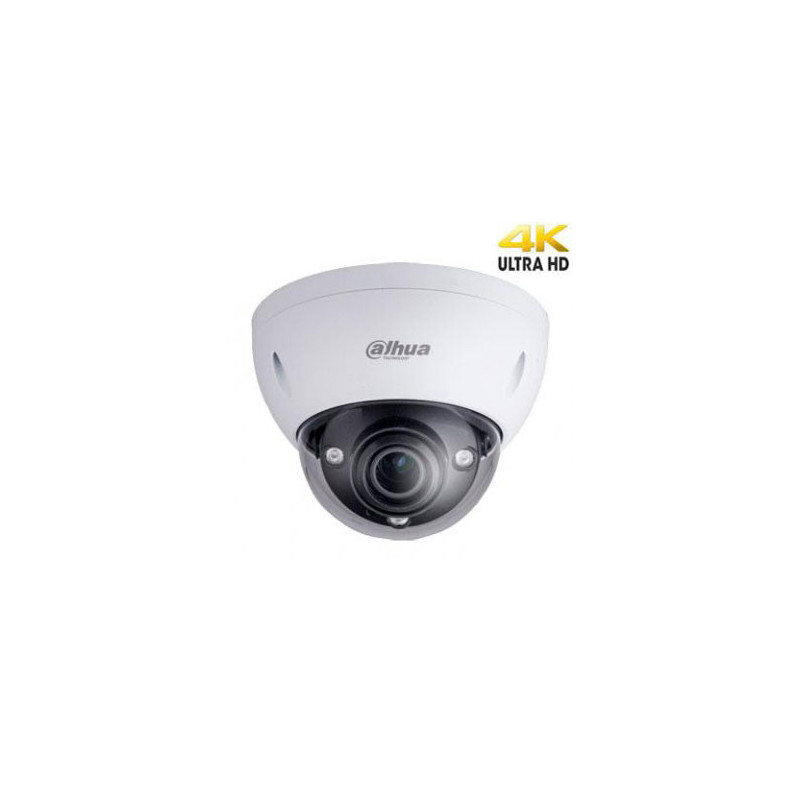

4K IP camera dome 12M, IR up to 50m., 1 / 1.7' 4.1~16.4mm, 12MP 20fps, IP67, IK10, IVS, DWDR, SSA

4K IP camera dome 12M, IR up to 50m., 1/1.7' 4.1~16.4mm, 12MP 20fps, IP67, IK10, IVS, DWDR, SSA

Short description:4K Smart IP camera 12 megapixel with night IR illumination up to 50 meters, 1/1.7' inch Day/Night, dome type camera, video compression H.265/ H.264, 12 MP RCMOS sensor, max. resolution 12MP(4000x3000), max. compression rate 12M 1~20fps) 8M(3840×2160)/1080P(1920×1080)/720P(1280×720) /D1(704×576) /CIF(352×288) (1~25fps), adjustable motorized lens 4.1mm~16.4mm (lens viewing angle from 105° to 35° Automatic iris, AWB / AGC / BLC / HLC / EIS/ ROI / DWDR / ESS / Ultra Defog/ 3DNR, people flow statistics, motion intensity recording (heat map), IP67 waterproof, IK10 shockproof, 3-axis adjustment, PoE, supports ONVIF 2.4, PSIA, CGI, SG model: DH-IPC-HDBW81230EP-ZH-S2Brief technical characteristics:• IVS functions: line crossing, perimeter intrusion, image change, missing object detection, appearing object detection, face detection; • People flow statistics; • Motion intensity recording (heat map); • 1/1.7' inch 12 MP Exmor RCMOS sensor; • Adjustable motorized lens: 4.1mm~16.4mm (lens viewing angle from 105° to 35°) Auto focus, automatic diaphragm; • High-performance Ambarella processor; • Video compression: H.265/ H.264; • Operating system LINUX; • Scanning system: Progressive; • Remote control and live monitoring via Ethernet (WEB): IE, chrome, firefox, safari; • Free software for camera control (DSS/PSS/SMART PSS), video viewing and archiving using a computer network or the Internet; • Free program that allows the user to monitor and view camera recordings from different objects, the program allows you to record the image to a computer; • Free program for monitoring via mobile phone or handheld computer (DMSS mobile phone surveillance software) suitable for phones: SYMBIAN, IPHONE, WINDOWS MOBILE, BLACKBERY, ANDROID, ANDROID PAD, IPAD, etc.; • IP camera can be used with software from other companies (VMS Partners): ALNET SYSTEMS, AXXON, DiGiFORT, Exacq Technologies, Genetech, GeoVision, Lenel, milestone, NETvision, NUUO, OnSSI, QNAP, Surveon, UNISIGHT, Aimetis, Cathexis solutions, GEUTEBRUCK, Kentima Solutions AB, LuxRiot AH Software House, Inc., Mirasys Ltd., SEEnergy Corp., Synology, Wavestore and others..; • Effective number of video elements 4000(H)x3000(V); • Available image resolution options: 12M(4000× 3000)/8M(3840× 2160)/6M(3072× 2048)/5M(2560× 1920)/3M(2048× 1536)/3M(2304x1296)1080P(1920× 1080)/1.3M(1280× 960)/720P(1280× 720)/D1(704× 576/704x480) /VGA(640x480)/CIF(352× 288/342x240); • Compression rate: Main stream: 12M(1~20fps) / 8M(1~25fps), Sub stream: D1/CIF(1~25fps), Sub stream: 1080P/720P/D1(1~25fps); • Bit Rate: H.265: 19~9984 Kbps, H.264: 32~16384 Kbps; • D/N: switches from color to black and white at a certain light intensity, IRC CUT filter(mechanical Day/Night filter); • ULTRA 3D-DNR: noise reduction technology; • 3pcs. 3rd generation high-power IR LEDs (SMART-IR) 850 nm; • Illumination distance 50m. smart IR; • Min. illumination: 0.02LUX/F1.53(Day), 0 LUX/F1.53(B/W); • S/N ratio > 50dB; • Electronic shutter: Auto/Manual, 1/3(4)~1/100000s; • White balance: Auto/Manual, BLC / HLC /DWDR/SSA; • Ultra Defog function; • Microphone input 1 channel; • Audio input 1 channel; • Video analog output BNC(1.0Vp-p,75); • Video format: PAL; • Audio compression: G.711a/ G.711Mu/G.726/AAC; • 100/1000 Mb/s network port (Ethernet -RJ45); • Protocols: IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, ONVIF 2.4, PSIA, CGI, SG; • Recording: FTP or NAS servers; • Remote control: Monitoring, EPTZ digital zoom, system settings, File download, Preview, software upgrade; • Alarm input 2 channels; • Alarm input 1 channel; • Internal memory: SD memory port Max 128GB; • Unlimited number of users (possibility to grant different rights to each user); • Maximum simultaneous user login: 20; • Operating temperature: -40°C~+60°C, 10%~90%; • IP67 waterproof; • IK10 shockproof; • 3-axis mechanism for camera adjustment; • Power supply: DC12V/AC24V, PoE (802.3at); • Power consumption 18W; • Dimensions: 159mm×117.9mm; • Weight: 0.96kg.;Compatible mounts• PFA138; • PFB210W; • PFA152; • PFB201C; • PFB302S; • PFA101; • PFB300C.
