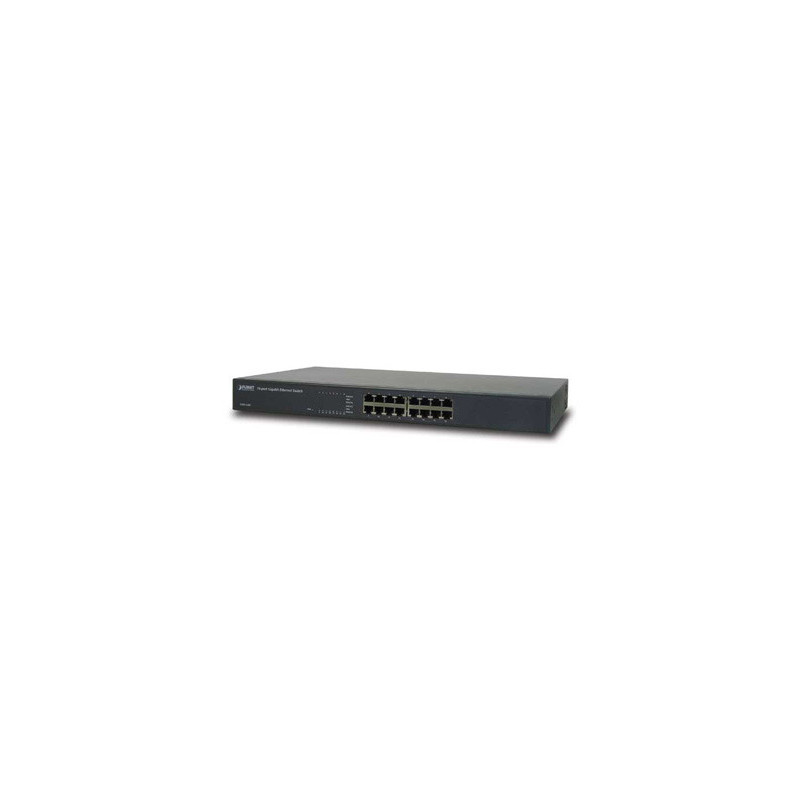

16-port Gigabit Internet Network Hub Planet GSW-1601

Short description: • Gigabit Internet network hub 16-ports; • 16 x 10/100/1000Mbps, metal housing; • Auto-MDI/MDIX for all ports; • Supports CSMA / CD protocols; • Complies with Internet standards: IEEE 802.3, 10Base-T, IEEE 802.3u, 100Base-TX, IEEE 802.3ab 1000Base-T; • MAC address memory: 8k Bits; • Power supply 100-240V AC, 50/60Hz, 0.2A; • Dimensions: 440(L) x 180(W) x 45 (H) mm. Technical characteristics: • Hardware version: Version 4 • 10/100/1000Base-T MDI/MDIX ports: 16 • Throughput (packet per second): 23.8 Mpps • Switch fabric: 32 Gbps / non-blocking • Weight: 2.30 kg • Power consumption / dissipation: 13 watts / 44 BTU • Power requirement: 100 -240 V AC, 0.6 A, 50/60 Hz • Dimensions (W x D x H): 440 x 180 x 45 mm, 1U height • Switch processing scheme: store and forward • Address table: 8K entries • Jumbo packet size: 9K • Flow control: Half-duplex pressure, IEEE 802.3x pause frame for full-duplex communication Standards compliance • Regulatory compliance: FCC Part 15 Class A, CE • Standards Compliance: IEEE 802.3 (Ethernet) IEEE 802.3u (Fast Ethernet) IEEE 802.3ab (Gigabit Ethernet) IEEE 802.3x (full-duplex flow control) Environmental Specifications • Temperature: Operating: 0-50 °C • Storage: -40-70 °C • Humidity: Operating: 5-90 % • Storage: 5-90 % (non-condensing)
