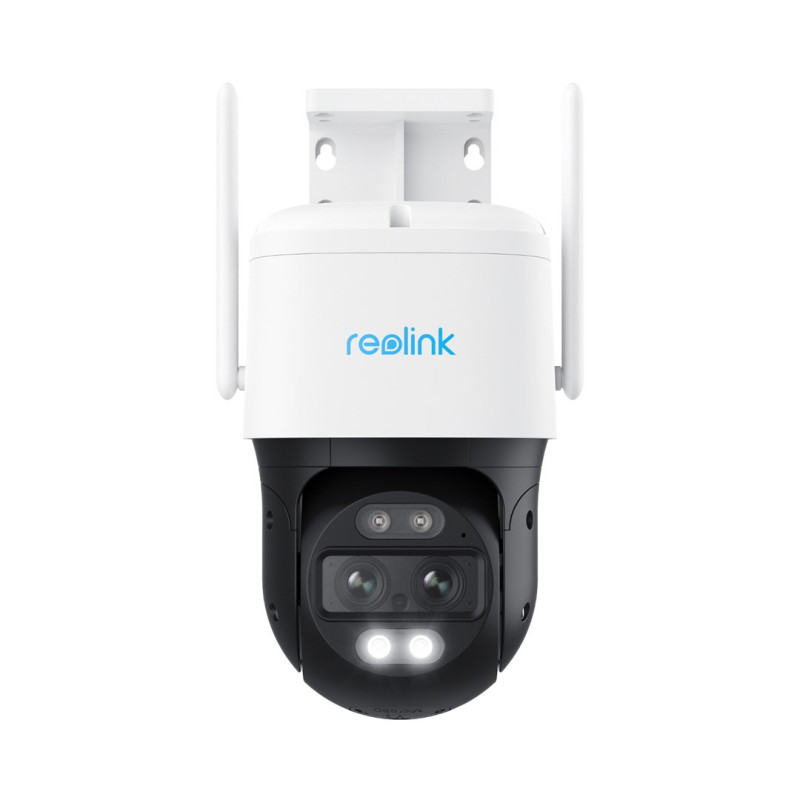

Reolink Trackmix W760 4K Outdoor Camera Black
The Reolink TrackMix Series W760 is a high-definition outdoor camera with dual-view and auto-zoom tracking capabilities. It supports Wi-Fi on both 2.4GHz and 5GHz frequencies and offers color night vision.
Main features
- 3840 x 2160 pixel resolution
- 256 GB MicroSD card support via integrated card reader
- Pan and tilt control to adjust the viewing angle
- IR night vision with up to 30 meters visibility
Design | |
|---|---|
| Product color | Black |
| Mounting type | Wall-mounted |
| International Protection (IP) Code | IP65 |
| Form factor | Turret |
Power supply | |
| DC output current | 1 A |
| DC output voltage | 12V |
| Power supply type | DC |
Security | |
| Video motion detection | Yes |
| Classification of people and vehicle targets | Yes |
| Security algorithms | WPA-PSK, WPA2-PSK |
Operating conditions | |
| Operating relative humidity (HH) | 10 - 90% |
| Operating temperature (OT) | -10 - 55 °C |
Control features | |
| Reset button | Yes |
Weight and dimensions | |
| Weight | 1.21 kg |
| Width | 147 mm |
| Height | 129 mm |
| Depth | 228 mm |
Network | |
| User access level | Administrator, User |
| Network standards | IEEE 802.11g, IEEE 802.11n, IEEE 802.11a, IEEE 802.11b |
| Bluetooth | No |
| Live view | Yes |
| Number of users | 20 users |
| Supported network protocols | HTTP, HTTPS, SSL, TCP/IP, UDP, UPNP, RTSP, RTMP, SMTP, ONVIF, NTP, DHCP, DNS, DDNS, P2P |
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 4 (802.11n), 802.11g, 802.11a, 802.11b |
| Ethernet LAN | Yes |
| Ethernet interface type | Fast Ethernet |
System requirements | |
| Supported mobile operating systems | Android, iOS |
| Supported Mac operating systems | Yes |
| Supported Windows operating systems | Yes |
Operation | |
| Antenna type | External |
| Communication technology | Wireless |
| Automatic tracking | Yes |
| Installation location | Outdoor |
| Day/night mode | Yes |
| Disabling the infrared (IR) filter | Yes |
| Virtual assistant | Google Assistant |
| Type | IP security camera |
| Number of antennas | 2 |

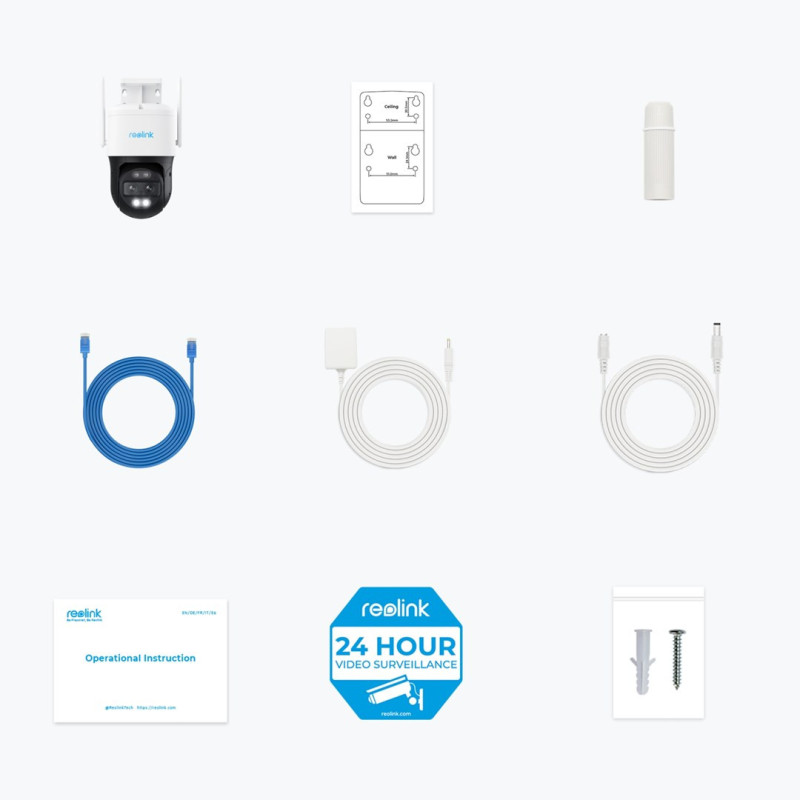

Package contents | |
| Screws included | Yes |
| Mounting kit | Yes |
| Number of cameras | 1 |
| User manual | Yes |
Sound system | |
| Built-in speakers | Yes |
| Sound system | 2-way |
| Built-in microphone | Yes |
Memory | |
| Built-in HDD | No |
| Maximum memory card size | 256GB |
| Integrated card reader | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
Ports and interfaces | |
| DC-in connector | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
Camera | |
| Camera panoramic control | Yes |
| Camera tilt control | Yes |
| Lens viewing angle, horizontal | 38 - 104° |
| Tilt angle range | 0 - 90° |
| Tilt speed | 1.5 °/sec |
| Panoramic speed | 90 °/sec |
| Panoramic range | 0 - 355° |
| Lens viewing angle, vertical | 21 - 60° |
Image sensor | |
| Optical sensor size | 25.4 / 3 mm (1 / 3') |
| Sensor type | CMOS |
Video recording | |
| Frame rate | 25 fps |
| Supported video formats | H.265, H.264 |
| Total megapixels | 8MP |
| Supported video modes | 2160p |
| Image compression formats | H.264, H.265 |
| Video recording | Yes |
| Video streaming | Yes |
| Maximum resolution | 3840 x 2160 pixels |
| Bit rate | 128Kbps - 8192Kbps |
| Supported graphics resolutions | 3840x2160 |
Night vision | |
| Infrared wavelength | 850 nm |
| Number of lighting LEDs | 2 |
| Night vision | Yes |
| Night vision distance | 30 years |
| LED type | IR/White |
Lens system | |
| Fixed focal length | 2.8 mm |
| Number of lenses | 1 |
| Zoom option | Yes |
| Maximum aperture number | 1.6 |
