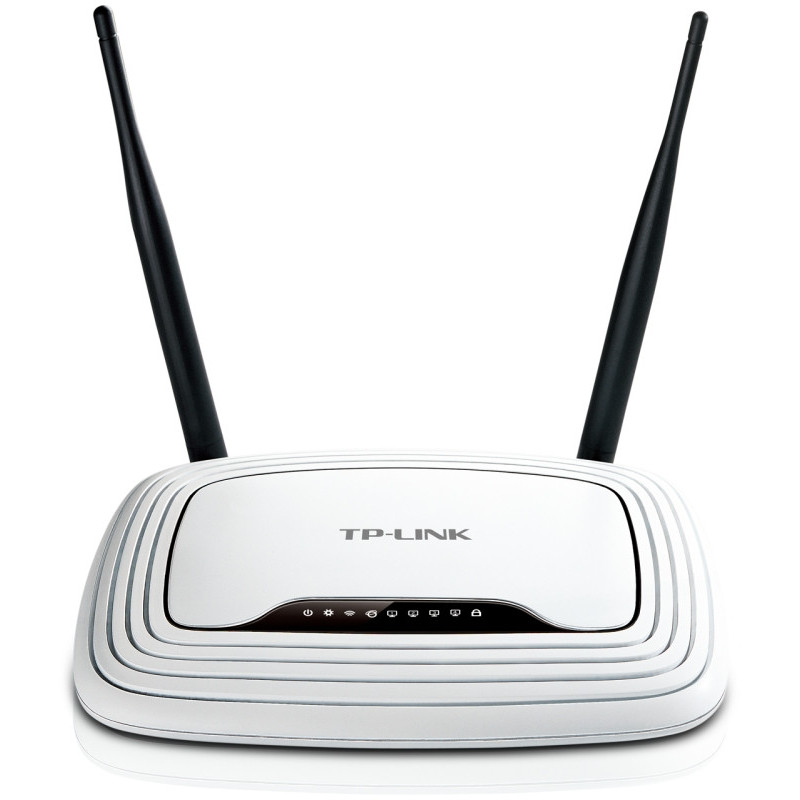

Wireless Router TL-WR841N

Wireless N speed up to 300Mbps makes it ideal for bandwidth consuming or interruption sensitive applications like video streaming, online gaming and VoIP Easily setup a WPA encrypted secure connection at a push of the WPS button WDS wireless bridge provides seamless bridging to expand your wireless network QoS function assures the quality of VoIP and multimedia streaming Wi-Fi On/Off Button allows users to simply turn their wireless radio on or off Features parental control function managing the internet access of children or employee's computer Supports virtual server, special application and DMZ host ideal for creating a website within your LAN Offers Auto-mail function for system log, convenient for managing the router Backward compatible with 802.11b/g products Easy Setup Assistant provides quick hassle free installation Sleek exterior, can be mounted on a wall or placed horizontally on a table or desk

HARDWARE FEATURES Interface

• 4 10/100Mbps LAN PORTS


• 1 10/100Mbps WAN PORT

Button WPS/Reset Button Wi-Fi On/Off Button Power On/Off Button External Power Supply 9VDC / 0.6A Wireless Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b Antenna 2*5dBi Fixed Omni Directional Antenna Dimensions ( W x D x H ) 7.6 x 5.1 x 1.3 in. (192 x 130 x 33 mm) WIRELESS FEATURES Frequency 2.4-2.4835GHz Signal Rate 11n: Up to 300Mbps(dynamic) 11g: Up to 54Mbps(dynamic) 11b: Up to 11Mbps(dynamic) Reception Sensitivity 270M: -68dBm@10% PER 130M: -68dBm@10% PER 108M: -68dBm@10% PER 54M: -68dBm@10% OVER 11M: -85dBm@8% PER 6M: -88dBm@10% PER 1M: -90dBm@8% PER Transmit Power CE: <20dBm(2.4GHz) FCC: <30dBm Wireless Functions Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics Wireless Security 64/128/152-bit WEP / WPA / WPA2,WPA-PSK / WPA2-PSK SOFTWARE FEATURES WAN Type Dynamic IP/Static IP/PPPoE/ PPTP/L2TP/BigPond DHCP Server, Client, DHCP Client List, Address Reservation Quality of Service WMM, Bandwidth Control Port Forwarding Virtual Server, Port Triggering, UPnP, DMZ Dynamic DNS DynDns, Comexe, NO-IP VPN Pass-Through PPTP, L2TP, IPSec (ESP Head) Access Control Parental Control, Local Management Control, Host List, Access Schedule, Rule Management Firewall Security DoS, SPI Firewall IP Address Filter/MAC Address Filter/Domain Filter IP and MAC Address Binding Management Access Control Local Management Remote Management OTHERS Certification CE, FCC, RoHS Package Contents Wireless N Rotuer TL-WR841N Power supply unit Resource CD Quick Installation Guide System Requirements Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, MAC® OS, NetWare®, UNIX® or Linux. Environment Operating Temperature: 0 ~40 (32 ~104 ) Storage Temperature: -40 ~70 (-40 ~158 ) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
