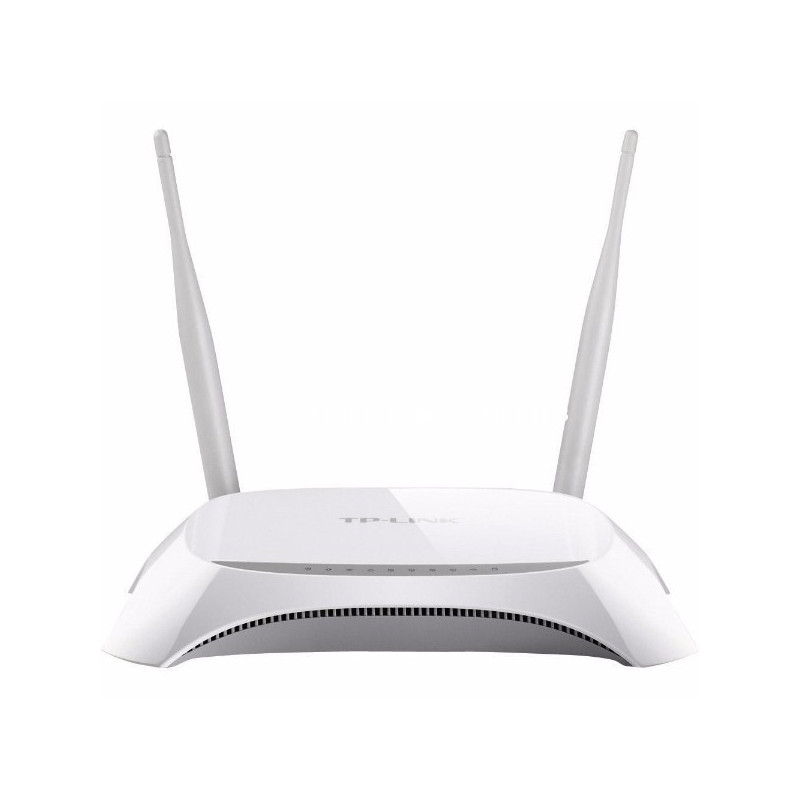

Wireless Router TL-WR840N

The 300Mbps Wireless N Router TL-WR840N is a combined wired/wireless network connection device designed specifically for small business and home office networking requirements. The TL-WR840N creates an exceptional and advanced wireless performance, making it ideal for streaming HD video, VoIP and online gaming. Also, Wi-Fi Protected Setup (WPS) button on the sleek and fashionable exterior ensures WPA2 encryptions, preventing the network from outside intrusions.

TP-LINK's TL-WR840N is a high speed solution that is compatible with IEEE 802.11b/g/n. Based on 802.11n technology, TL-WR840N gives users wireless performance at up to 300Mbps, which can meet your most demanding home networking needs, such as HD streaming, online gaming and large file downloading.

Clear Channel Assessment (CCA) automatically avoids channel conflicts using its clear channel selection feature and fully realizes the advantages of channel binding, greatly enhancing wireless performance.

IP based bandwidth control allows administrators to determine how much bandwidth is allocated to each PC.

Either using the optimized user interface and setup wizard or the CD (included) setup wizard will allow you to get 'online' quickly and easily.

Updated version 4.0. now includes 2x 5dBi Fixed Omni Directional Antenna's (RP-SMA)

HARDWARE FEATURES Interface

• 4 10/100Mbps LAN PORTS


• 1 10/100Mbps WAN PORT

Button WPS/RESET Button Antenna 2*5dBi Fixed Omni Directional Antenna (RP-SMA) External Power Supply 9VDC / 0.6A Wireless Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b Dimensions ( W x D x H ) 7.2 x 5.0 x 1.4in.(182 x 128 x 35 mm) WIRELESS FEATURES Frequency 2.4-2.4835GHz Signal Rate 11n: Up to 300Mbps(dynamic) 11g: Up to 54Mbps(dynamic) 11b: Up to 11Mbps(dynamic) Reception Sensitivity 270M: -68dBm@10% PER 130M: -68dBm@10% PER 108M: -68dBm@10% PER 54M: -68dBm@10% OVER 11M: -85dBm@8% OVER 6M: -88dBm@10% PER 1M: -90dBm@8% PER Transmit Power CE: <20dBm FCC: <30dBm Wireless Functions Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics Wireless Security 64/128-bit WEP, WPA / WPA2,WPA-PSK / WPA2-PSK SOFTWARE FEATURES Quality of Service WMM, Bandwidth Control WAN Type Dynamic IP/Static IP/PPPoE/ PPTP/L2TP Management Access Control Local Management Remote Management DHCP Server, Client, DHCP Client List, Address Reservation Port Forwarding Virtual Server, Port Triggering, UPnP, DMZ Dynamic DNS DynDns, Comexe, NO-IP VPN Pass-Through PPTP, L2TP, IPSec (ESP Head) Access Control Parental Control, Local Management Control, Host List, Access Schedule, Rule Management Firewall Security DoS, SPI Firewall IP Address Filter/MAC Address Filter/Domain Filter IP and MAC Address Binding Protocols Support IPv4 and IPv6 Guest Network 2.4GHz Guest Network x1 OTHERS Certification CE, RoHS Package Contents Wireless N Router TL-WR840N Power supply unit Resource CD Ethernet Cable Quick Installation Guide System Requirements Windows 2000/XP/Vista™, Windows 7, Windows 8, Windows 8.1, Windows 10 or Mac OS or Linux-based operating system Environment Operating Temperature: 0 ~40 (32 ~104 ) Storage Temperature: -40 ~70 (-40 ~158 ) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
