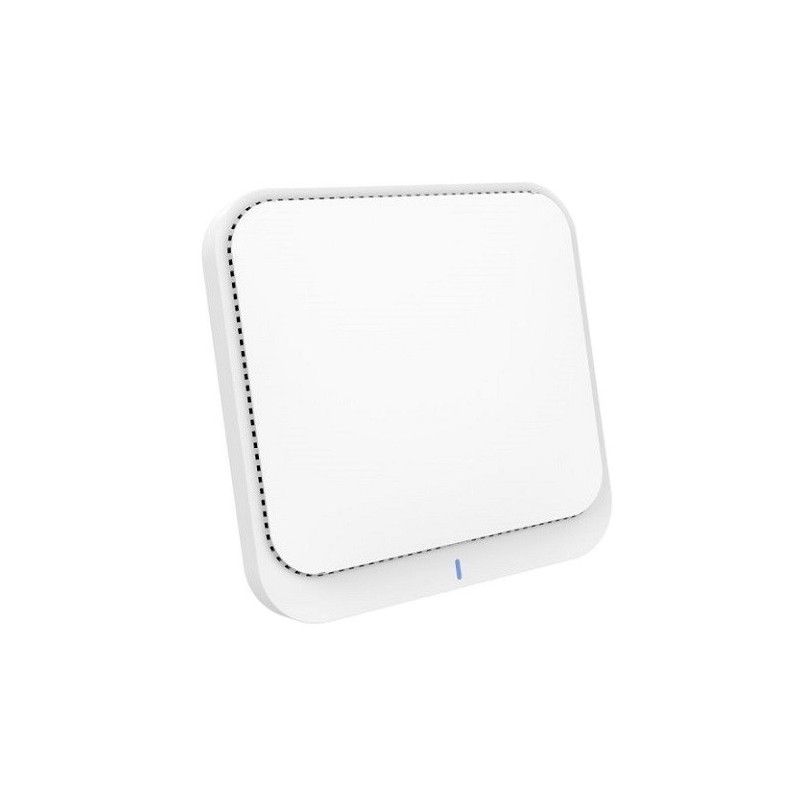

WiFi 6 access point, 3600Mbps, 2.4GHz / 5GHz +2500 Mbps Ethernet

Wireless access point, 3600 Mbps, 2.4/5G Wi-Fi + 2500 Mbps Ethernet, (802.11AX).
Features:

• High-power industrial wireless access point with the next-generation 802.11AX Wi-Fi 6 standard, combining 3600 Mbps Wi-Fi speed via Dual Band 2.4/5G with 2500 Mbps Ethernet. Allows up to 300 end users to connect.


• The AP (Access Point) device can be widely used in meeting rooms, conferences, offices, schools, restaurants, hospitals, hotels, shopping malls, etc.


• The combination of 4 Qualcomm processor chips and 4 antennas supports more users in a large coverage area.


• Supports Wave2 technologies MU-MIMO (Multiple-Input Multiple-Out) and DL/UL-OFDMA (Orthogonal Frequency-Division Multiple Access), which increase network speed and efficiency.


• POE power supply is supported.


• Although Dual Band can be active simultaneously, priority is given to 5G to provide the user with a faster connection.


• 2 LED indicator system: 5G; 2.4G; WAN; LAN. Reboot button.


• Ceiling or wall mounting.

Technical data:

• CPU: Qualcomm IPQ8072A +QCN5054+QCN5024+QCA8081x2.


• DDR: 512MB (16bit) x2 = 1GB.


• Flash: NOR 8MB + NAND 256MB.


• Transmission power: 2.4G <20dBm; 5.8G <19dBm.


• Maximum data transfer speed: 3657Mb/s.


• Transmission speed: 1182 Mbps (2.4GHz). + 2475Mbps (5.8GHz).


• Wireless standard 2.4G Wi-Fi: IEEE802.11b, IEEE802.11g, IEEE802.11n, IEEE802.11ax.


• Wireless standard 5.8G Wi-Fi: IEEE802.11a, IEEE802.11n, IEEE802.11ac, IEEE802.11ax.


• LAN port: RJ45, 10/100/1000/2500 Mbps.


• WAN port: RJ45 (+PoE), 10/100/1000/2500 Mbps.


• Working environment: -20 ~+45°C, 5~95%RH.


• Size: 198x198x41mm.


• Power supply: DC 12V, 2A, PoE: 48V, 0.5A (IEEE802.3AT+)


• Power consumption: <35W.


• Antennas: built-in 4x 3dBi.

Package:

• Wi-Fi access point.


• Network cable.


• Screws and accessories.
