EnGenius XG60-FIT hardware firewall

EnGenius FitXpress Managed Gateway 2 x GbE LAN & 2 x GbE WAN & 1 SFP port. Firewall throughput: 3 Gbit/s, VPN throughput: 0.9 Gbit/s. Internal memory: 4096 MB, Processor frequency: 2.1 MHz. Networking standards: IEEE 802.3af, IEEE 802.3at, Number of users: 50 user(s). Connectivity technology: Wired, Ethernet LAN data rates: 10,100,1000 Mbit/s, WAN connection: Ethernet (RJ-45). Flash memory: 8000 MB

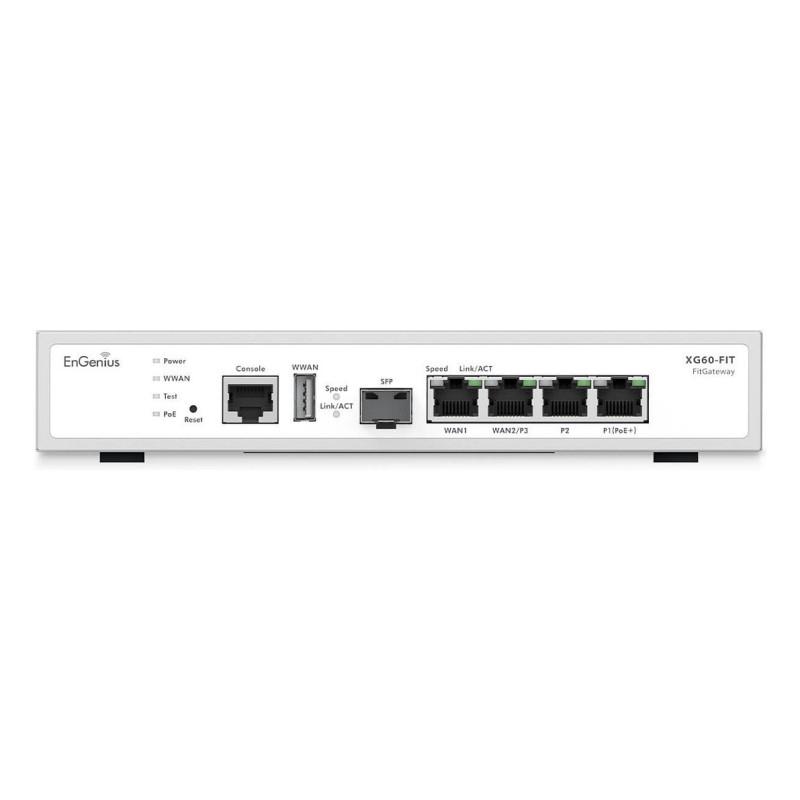

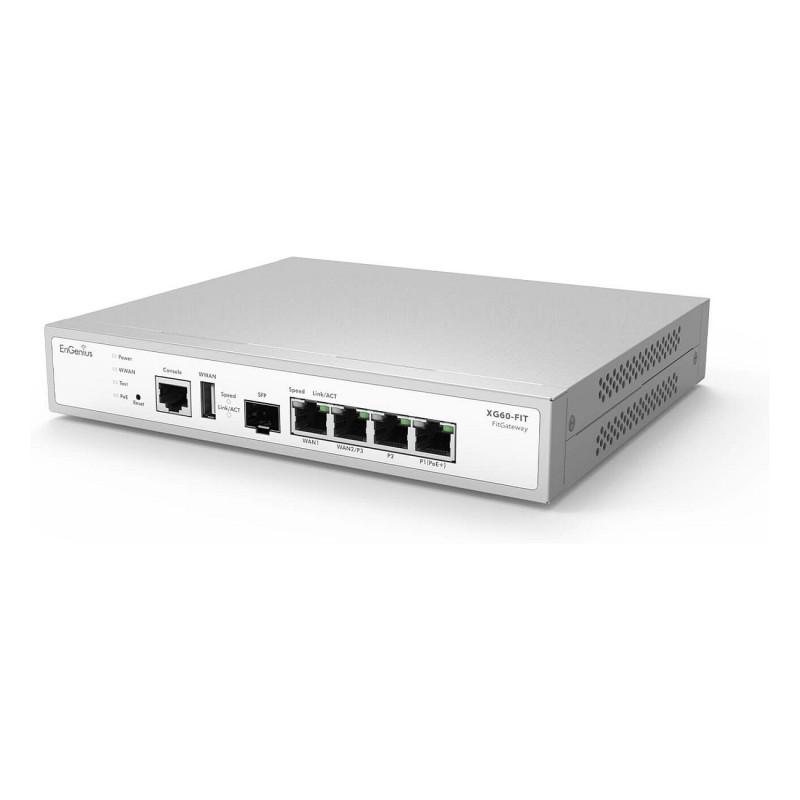

EnGenius FitXpress Gateway with 4x Gigabit (1 PoE+) Ethernet ports and 1 SFP

EnGenius FitXpress Gateway XG60-FIT provides a high-performance network solution with advanced features, including load balancing, dual-WAN, and site-to-site VPN. The product offers unified management through FitXpress, allowing for easy configuration and management from anywhere. It offers a comprehensive end-to-end solutionfor businesses seeking to enhance their network performance and security.

Data transmission

Firewall throughput: 3 Gbit/s
VPN throughput: 0.9 Gbit/s

Performance

Feature: Built-in processor
Internal memory: 4096 MB
Processor frequency: 2.1 MHz
Feature: Reset button

Network

Networking standards: IEEE 802.3af, IEEE 802.3at
VPN tunnels quantity: 100
Number of users: 50 user(s)
Feature: Static route
Feature: DHCP server
Feature: Port forwarding
Active TCP connections (max): 1000000
Feature: Point-to-point protocol over Ethernet (PPPoE)

Management features

LED indicators: Yes

Ports & interfaces

Connectivity technology: Wired
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
Ethernet LAN (RJ-45) ports: 4
Ethernet LAN data rates: 10,100,1000 Mbit/s
WAN connection: Ethernet (RJ-45)
SFP module slots quantity: 1

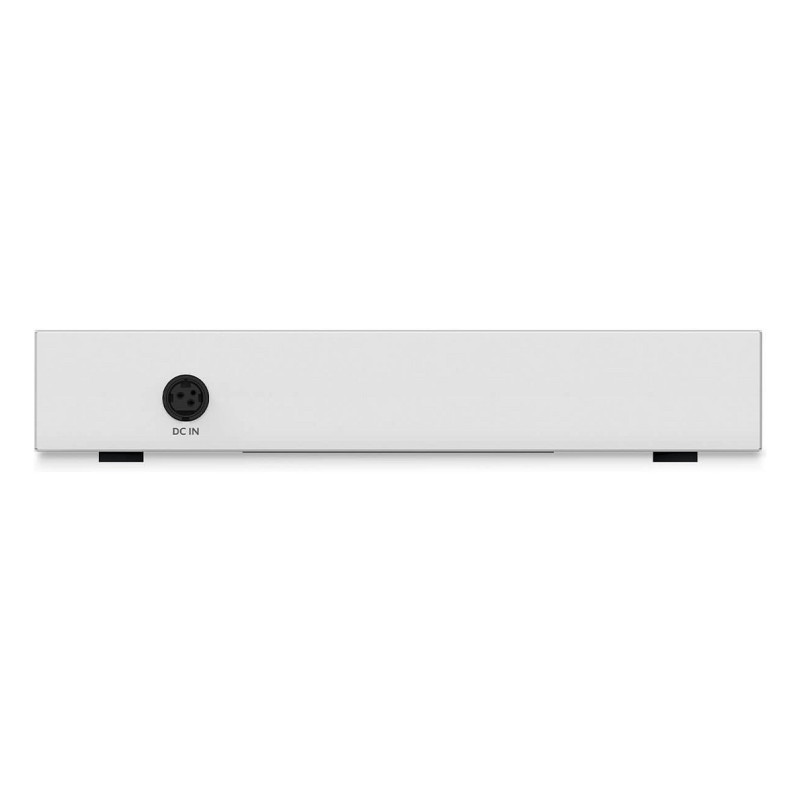

Feature: DC-in jack

Storage

Flash memory: 8000 MB

Power

Input current: 1.2 A
DC input voltage: 54 V

Certificates

Certification: FCC Part 15 (Class B) IC CE EMC CB UL

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 5 - 95%

Weight & dimensions

Width: 210 mm
Depth: 179.5 mm
Height: 35 mm

Packaging data

Package width: 279 mm
Package height: 297 mm
Package depth: 104 mm
Package weight: 1.93 kg

Packaging content

Feature: Quick start guide

Other features

Firewall throughput: 3000 Mbit/s
VPN throughput: 900 Mbit/s

Logistics data

Products per master (outer) case: 4 pc(s)
Master (outer) case gross weight: 7.7 kg
Master (outer) case length: 430 mm
Master (outer) case width: 290 mm
Master (outer) case height: 315 mm
Harmonized System (HS) code: 85176990
