Ubiquiti UX7-2 gateway / controller
Product reference: 29-0810177166924

Ubiquiti UX7-2, White, Polycarbonate (PC), Status, Internal, 7 dBi, LCM

Ubiquiti UX7-2 gateway / controller

Product reference: 29-0810177166924

Ubiquiti UX7-2, White, Polycarbonate (PC), Status, Internal, 7 dBi, LCM

You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
523,65 €
Product in warehouse

Guarantee
24 month

Delivery from Europe in
5 - 10
business days

Your message has been successfully sent!
Fill in the required fields*

Ubiquiti UX7-2. Product colour: White, Enclosure material: Polycarbonate (PC), LED indicators: Status. Antenna type: Internal, Antenna gain level (max): 7 dBi. Display type: LCM, Processor manufacturer: ARM, Processor family: ARM Cortex. Routing protocols: OSPF. Ethernet LAN data rates: 10,100,1000,2500,10000 Mbit/s, Networking standards: IEEE 802.1Q, Wi-Fi band: Tri-band (2.4 GHz / 5 GHz / 6 GHz)

Mesh-scalable, super-compact 10G Cloud Gateway with integrated 6 GHz WiFi 7. Plug-and-play Whole-Home WiFi with true 10G Multi-Link Operation, intelligent placement guidance, and effortless mesh expansion with additional nodes.

Design

Product colour: White
Enclosure material: Polycarbonate (PC)
LED indicators: Status

Features

Antenna type: Internal
Antenna gain level (max): 7 dBi
Antennas quantity: 4

Performance

Feature: Control display unit
Display type: LCM
Feature: Built-in processor
Processor manufacturer: ARM
Processor family: ARM Cortex
Processor model: Cortex-A53
Processor frequency: 1500 MHz
Number of processors installed: 1
Internal memory: 3000 MB

Protocols

Routing protocols: OSPF
Feature: DHCP server

Network

Ethernet LAN data rates: 10,100,1000,2500,10000 Mbit/s
Networking standards: IEEE 802.1Q
Feature: Wi-Fi
Wi-Fi band: Tri-band (2.4 GHz / 5 GHz / 6 GHz)
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 7 (802.11be), Wi-Fi 6E (802.11ax)
WLAN data transfer rates supported: 1,2,5.5,6,6.5,9,11,12,18,24,36,48,54,300 Mbit/s
Feature: Bluetooth
Frequency band: 2.4, 5, 6 GHz
Feature: Load balancing
Data transfer rate: 5.7 Gbit/s
Feature: Wireless connection
VPN support: OpenVPN, WireGuard

Security

Security algorithms: 802.1x RADIUS, IPSec, PPSK, TLS, WPA, WPA-Enterprise, WPA-PSK, WPA2, WPA3
Firewall security: Yes
Feature: VLAN support

Ports & interfaces

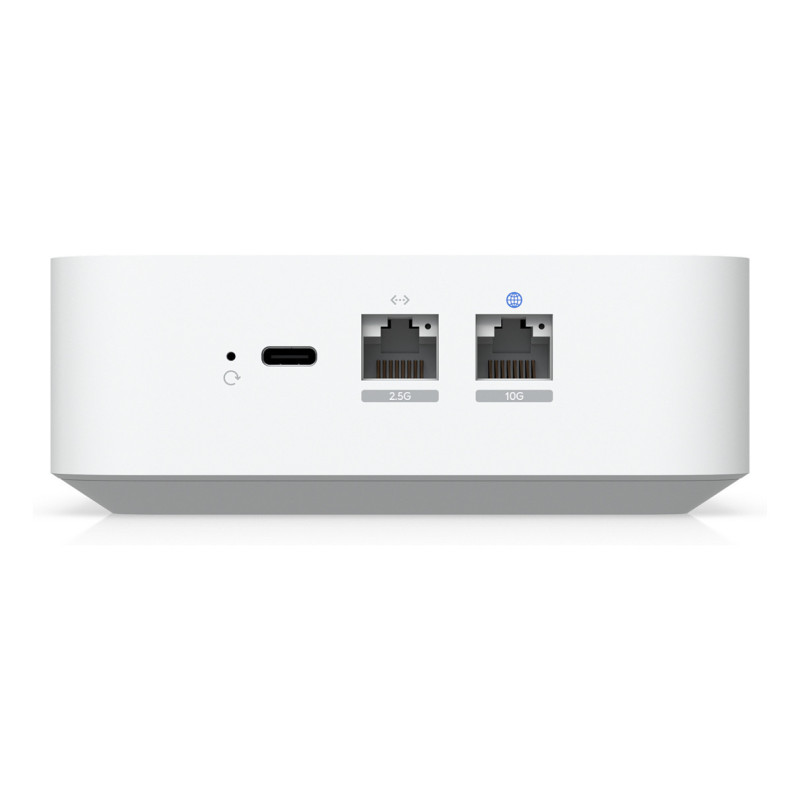

Ethernet LAN (RJ-45) ports: 2
WAN connection: Ethernet (RJ-45)

Management features

Feature: Quality of Service (QoS) support
Feature: Reset button
Feature: Multicast support

Power

Power consumption (max): 22 W
Input voltage: 100 - 240 V
Input current: 5 A
Feature: Electromagnetic (EMP) protection
Electromagnetic (EMP) protection (air): 8 kV
Electromagnetic (EMP) protection (contact): 4 kV

Weight & dimensions

Width: 117 mm
Depth: 117 mm
Height: 42.5 mm
Weight: 443 g

Packaging data

Package type: Box

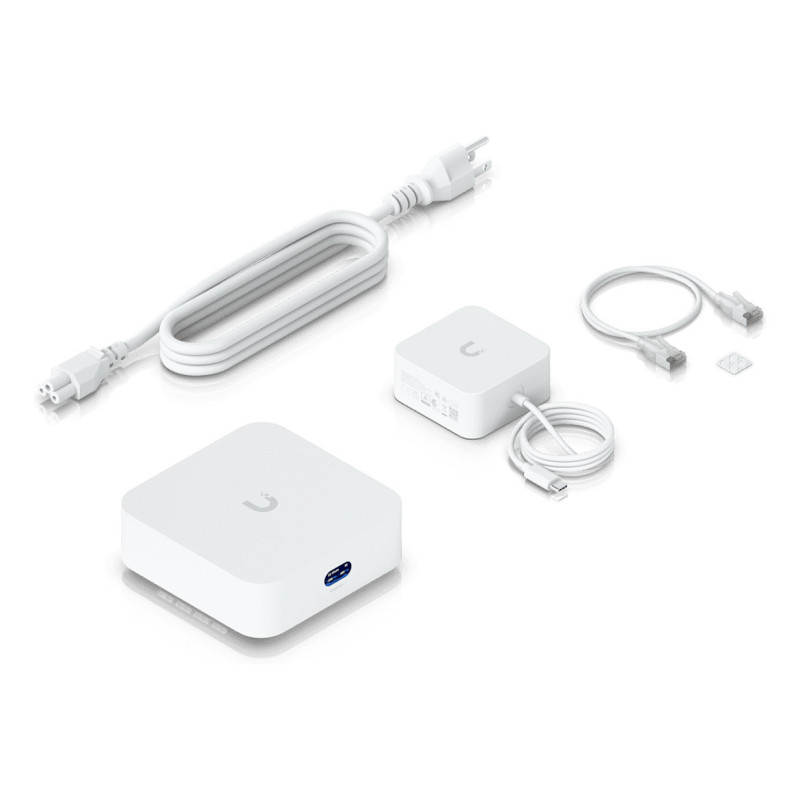

Packaging content

Feature: AC adapter included
Cables included: LAN (RJ-45), Power

Operational conditions

Operating temperature (T-T): -10 - 40 °C
Operating relative humidity (H-H): 5 - 95%

Certificates

Compliance certificates: CE, Federal Communications Commission (FCC), Industry Canada (IC)

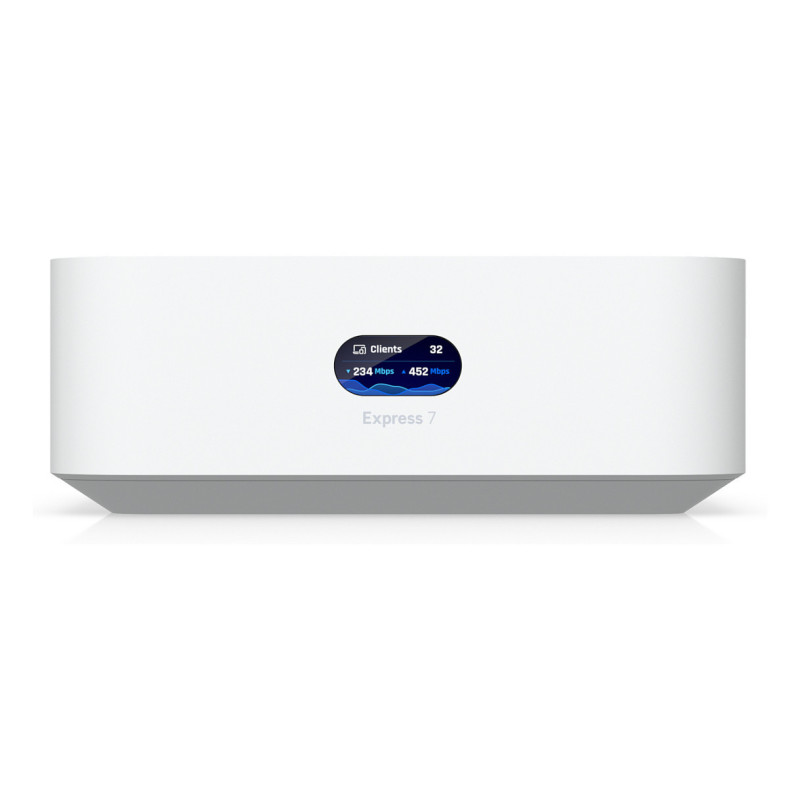

Display

Display diagonal: 2.44 cm (0.96")

Logistics data

Quantity per pack: 2 pc(s)


Gamintojo kodas UX7-2
Weight 1.446 kg
