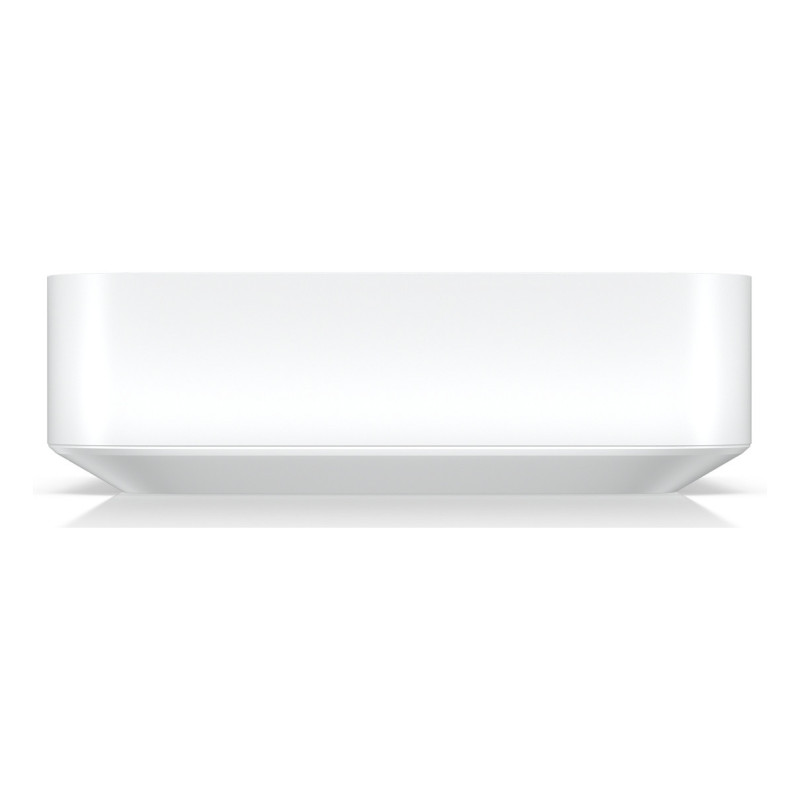

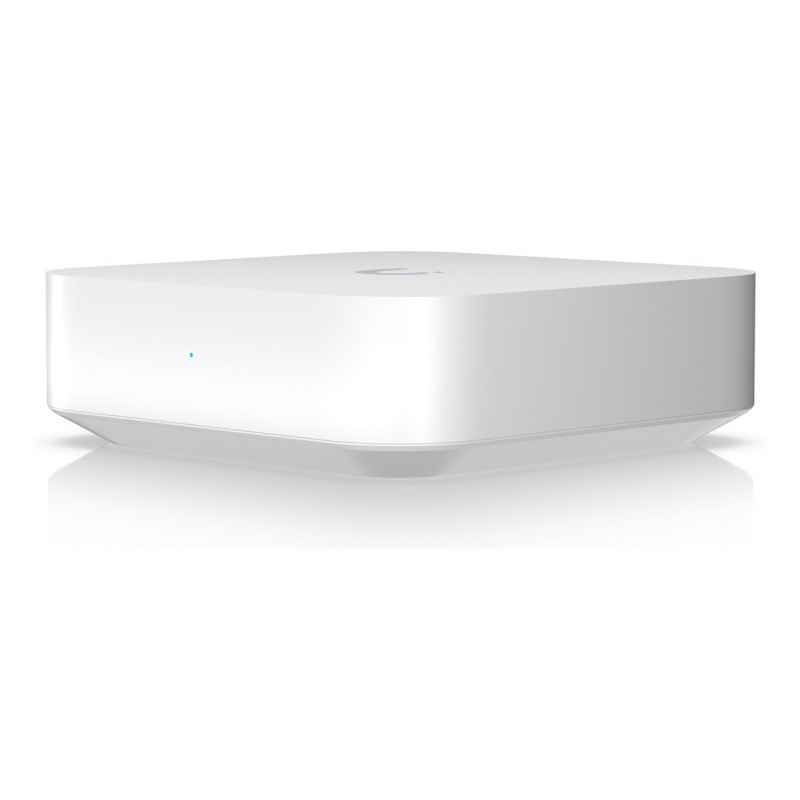

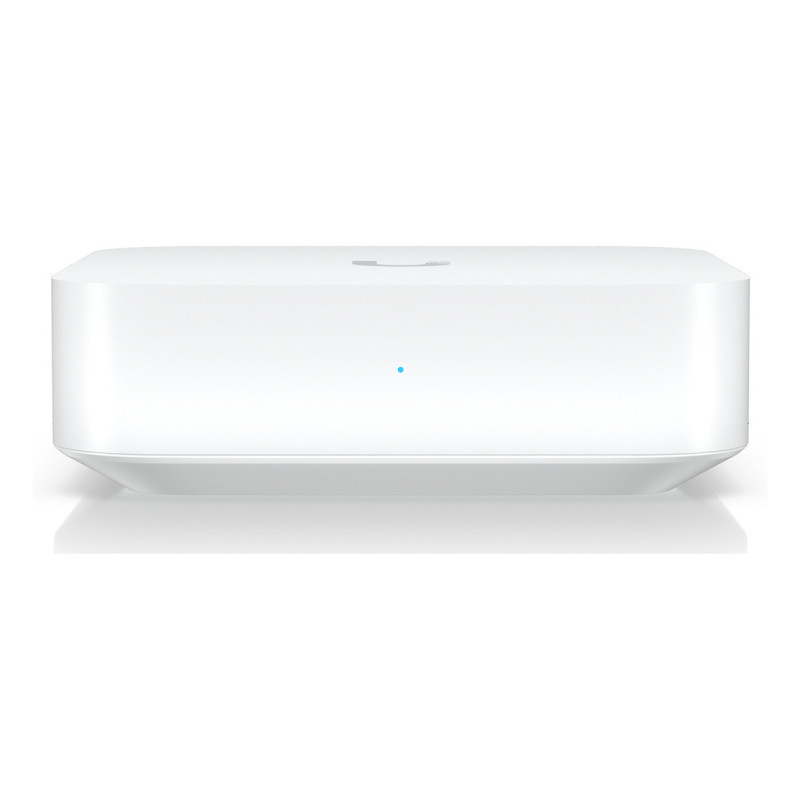

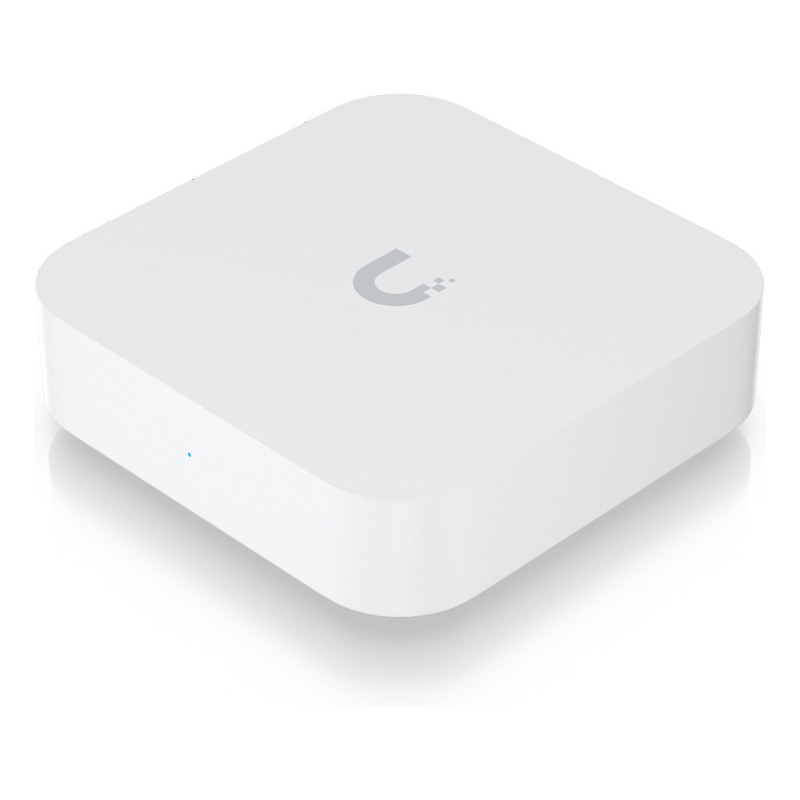

Ubiquiti UXG-Lite gateway / controller

Ubiquiti UXG-Lite. Product colour: White, Enclosure material: Polycarbonate (PC). Processor manufacturer: ARM, Processor model: Cortex-A53, Processor frequency: 1000 MHz. Ethernet LAN data rates: 10,100,1000 Mbit/s. Security algorithms: IPSec. WAN connection: Ethernet (RJ-45)

A compact and powerful UniFi gateway with a full suite of advanced routing and security features.

Design

Product colour: White
Enclosure material: Polycarbonate (PC)
LED indicators: Yes

Performance

Feature: Built-in processor
Processor manufacturer: ARM
Processor model: Cortex-A53
Processor frequency: 1000 MHz
Number of processors installed: 1
Internal memory: 1000 MB
Internal memory type: DDR3L

Protocols

Feature: DHCP server

Network

Ethernet LAN data rates: 10,100,1000 Mbit/s

Security

Security algorithms: IPSec
Firewall security: Yes
Feature: VLAN support

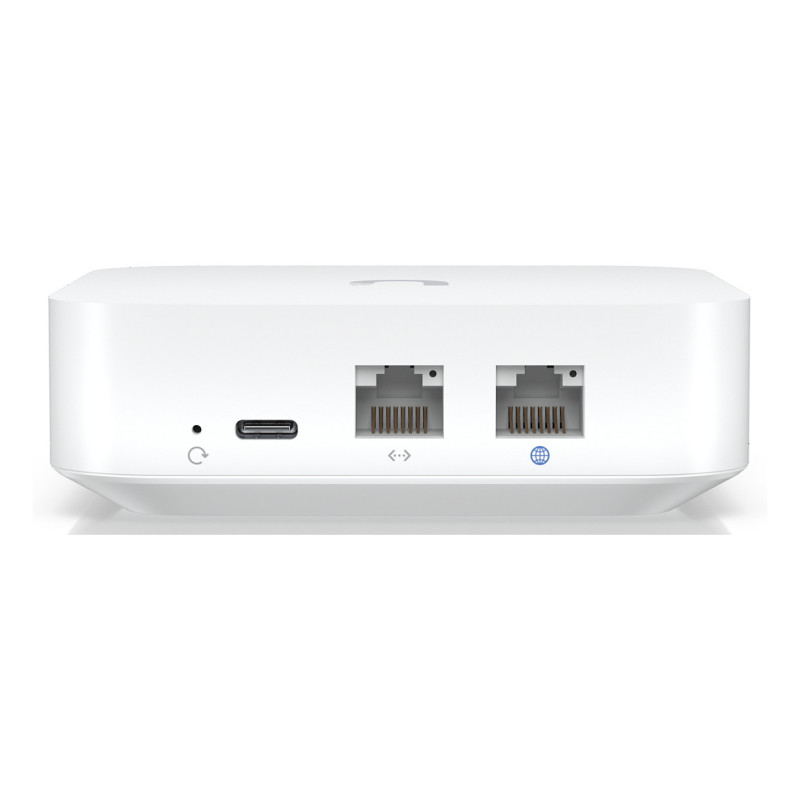

Ports & interfaces

Ethernet LAN (RJ-45) ports: 2
WAN connection: Ethernet (RJ-45)

Management features

Feature: Quality of Service (QoS) support
Feature: Reset button

Power

Power consumption (max): 3.83 W
Input voltage: 5 V
Input current: 3 A

Weight & dimensions

Width: 98 mm
Depth: 98 mm
Height: 30 mm
Weight: 320 g

Packaging content

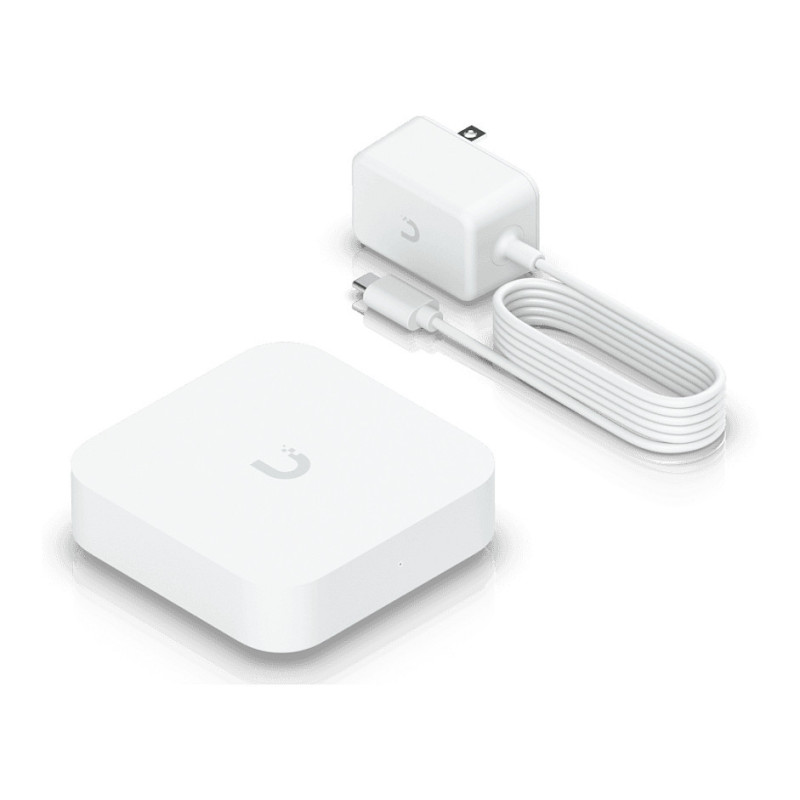

Feature: AC adapter included

Operational conditions

Operating temperature (T-T): -10 - 40 °C
Operating relative humidity (H-H): 5 - 95%

Sustainability

Feature: Sustainability compliance

Certificates

Compliance certificates: CE, Federal Communications Commission (FCC)
