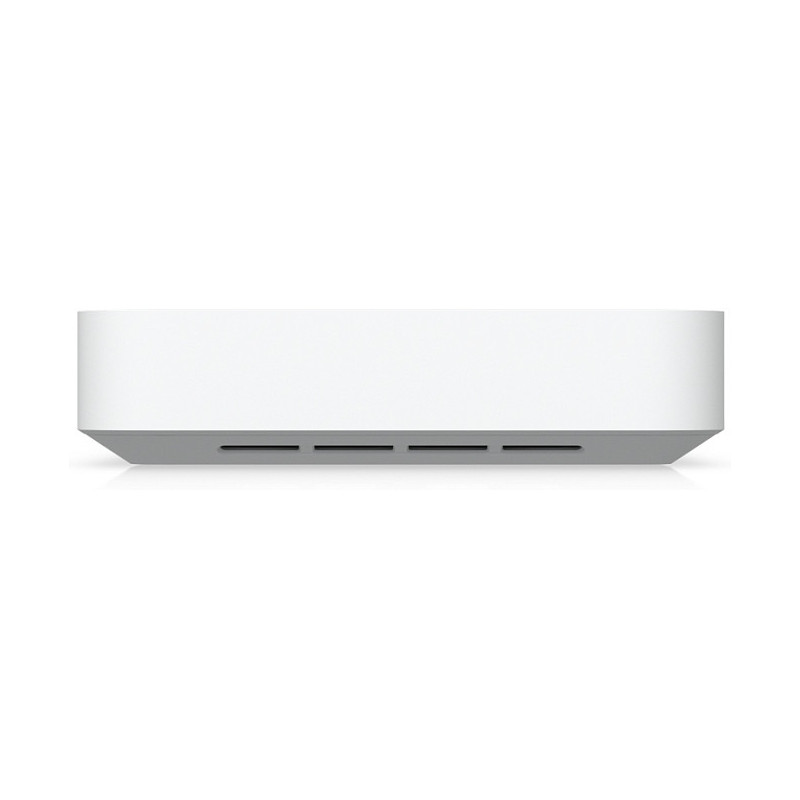

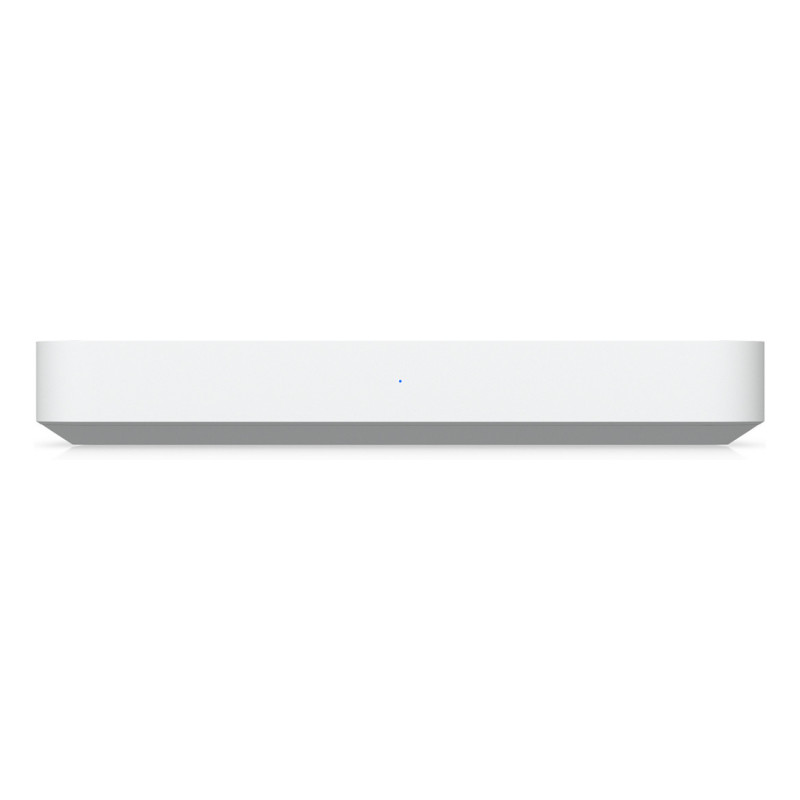

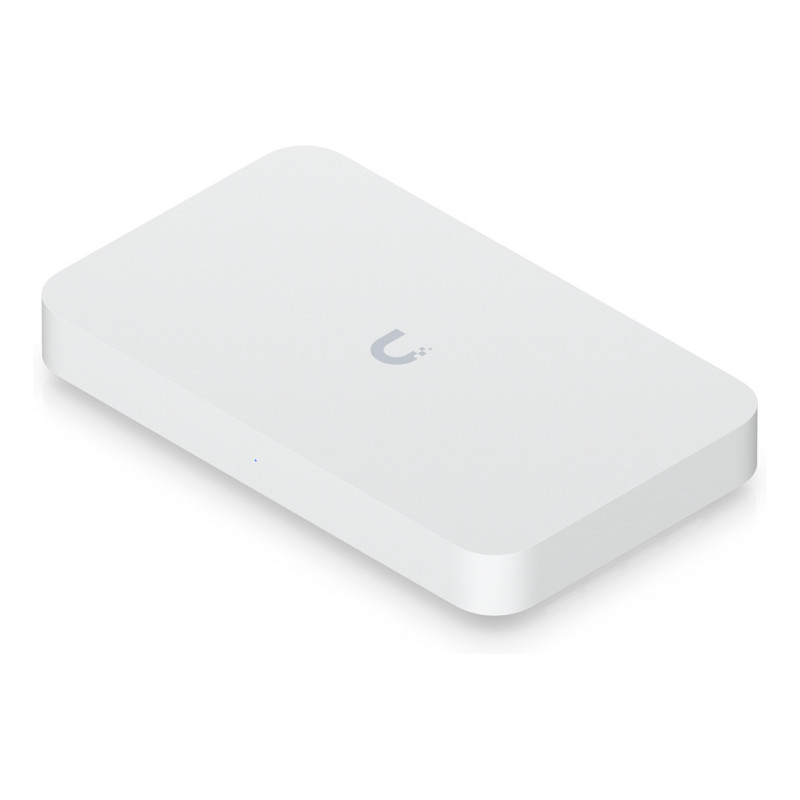

Ubiquiti UXG-Fiber (30W) gateway / controller

Ubiquiti UXG-Fiber (30W). Product colour: White, Enclosure material: Polycarbonate (PC), LED indicators: Activity, LAN, Link, System. Processor manufacturer: ARM, Processor family: ARM Cortex, Processor model: Cortex-A73. Routing protocols: OSPF. Ethernet LAN data rates: 1000,2500,10000 Mbit/s. Security algorithms: IPSec, TLS
Desktop 10G independent gateway with integrated 4-port 2.5 GbE switch.

Design

Product colour: White
Enclosure material: Polycarbonate (PC)
LED indicators: Activity, LAN, Link, System

Performance

Feature: Built-in processor
Processor manufacturer: ARM
Processor family: ARM Cortex
Processor model: Cortex-A73
Processor frequency: 2200 MHz
Number of processors installed: 1
Internal memory: 2000 MB

Protocols

Routing protocols: OSPF

Network

Ethernet LAN data rates: 1000,2500,10000 Mbit/s
Feature: Bluetooth
Feature: Load balancing

Security

Security algorithms: IPSec, TLS
Firewall security: Yes
Feature: VLAN support

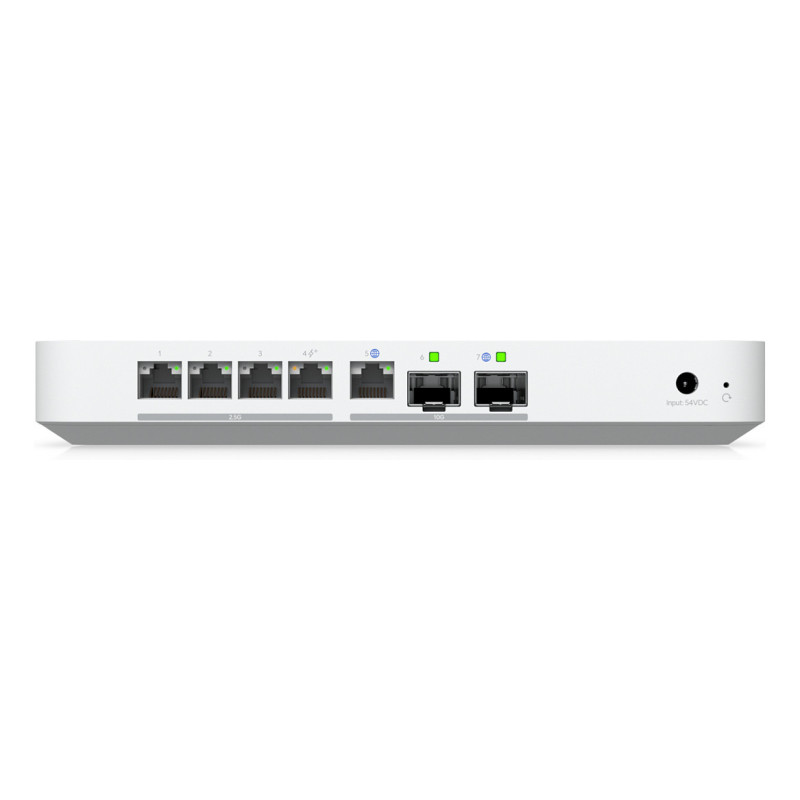

Ports interfaces

Ethernet LAN (RJ-45) ports: 5
WAN connection: Ethernet (RJ-45), SFP
Feature: DC-in jack
SFP+ ports quantity: 2

Management features

Feature: Quality of Service (QoS) support
Feature: Reset button
Feature: Multicast support

Power

Power consumption (max): 25 W
Input voltage: 100 - 240 V
Input current: 1.1 A
Power over Ethernet (PoE) type supported: PoE+
Feature: Power over Ethernet (PoE)
DC input voltage: 54 V
Feature: Electromagnetic (EMP) protection
Electromagnetic (EMP) protection (air): 8 kV
Electromagnetic (EMP) protection (contact): 4 kV

Weight dimensions

Width: 212.8 mm
Depth: 127.6 mm
Height: 30 mm
Weight: 605 g

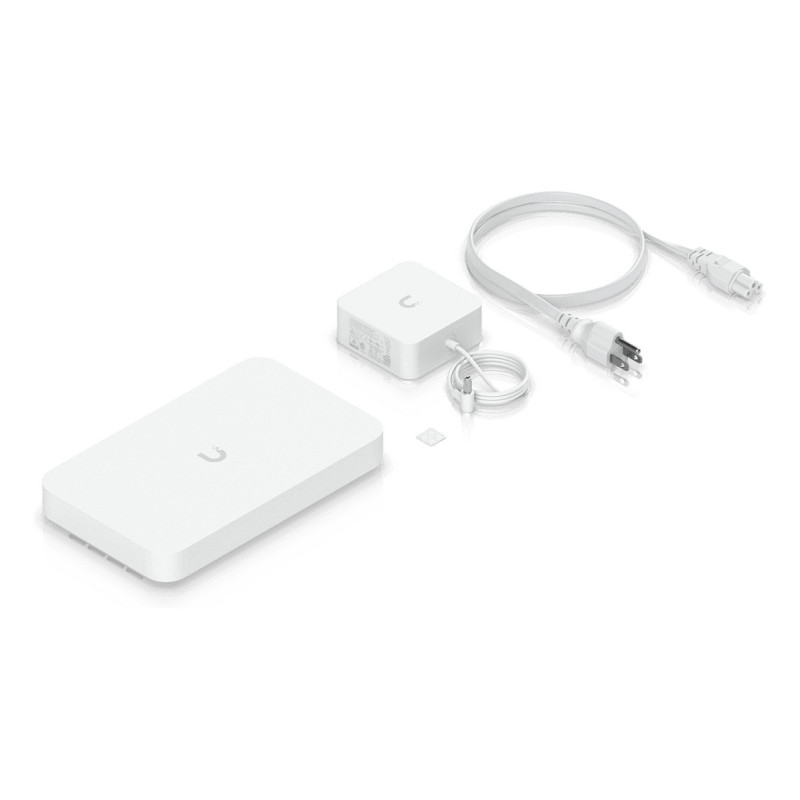

Packaging content

Feature: AC adapter included
Cables included: Power

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 5 - 95%

Sustainability

Feature: Sustainability compliance

Certificates

Compliance certificates: CE, Federal Communications Commission (FCC), Industry Canada (IC)
