Ubiquiti UCG-Max-NS gateway / controller

Ubiquiti UCG-Max-NS. Product colour: White, Enclosure material: Polycarbonate (PC), LED indicators: LAN. Display type: LCM, Processor manufacturer: ARM, Processor family: ARM Cortex. Ethernet LAN data rates: 10,100,1000,2500 Mbit/s, Cabling technology: 10/100/1000Base-T(X). WAN connection: Ethernet (RJ-45). Power consumption (max): 16.1 W, Input voltage: 100 - 240 V, Input current: 5 A
Enjoy Peace of Mind With
24-Hour Professional Support
Now available globally as an upgraded support tier.

Design

Product colour: White
Enclosure material: Polycarbonate (PC)
LED indicators: LAN

Performance

Control display unit: Yes
Display type: LCM
Built-in processor: Yes
Processor manufacturer: ARM
Processor family: ARM Cortex
Processor model: Cortex-A53
Processor frequency: 1500 MHz
Number of processors installed: 1
Internal memory: 3000 MB

Protocols

DHCP server: Yes

Network

Ethernet LAN data rates: 10,100,1000,2500 Mbit/s
Cabling technology: 10/100/1000Base-T(X)

Security

Firewall security: Yes
VLAN support: Yes

Ports interfaces

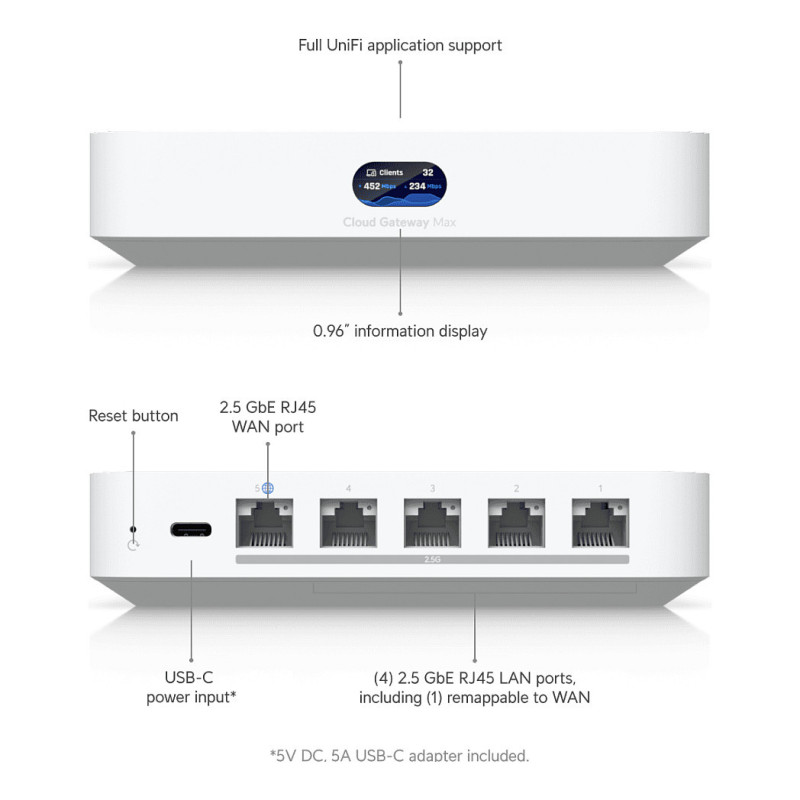

Ethernet LAN (RJ-45) ports: 5
WAN connection: Ethernet (RJ-45)

Management features

Quality of Service (QoS) support: Yes
Reset button: Yes

Power

Power consumption (max): 16.1 W
Input voltage: 100 - 240 V
Input current: 5 A
Output voltage: 5 V

Weight dimensions

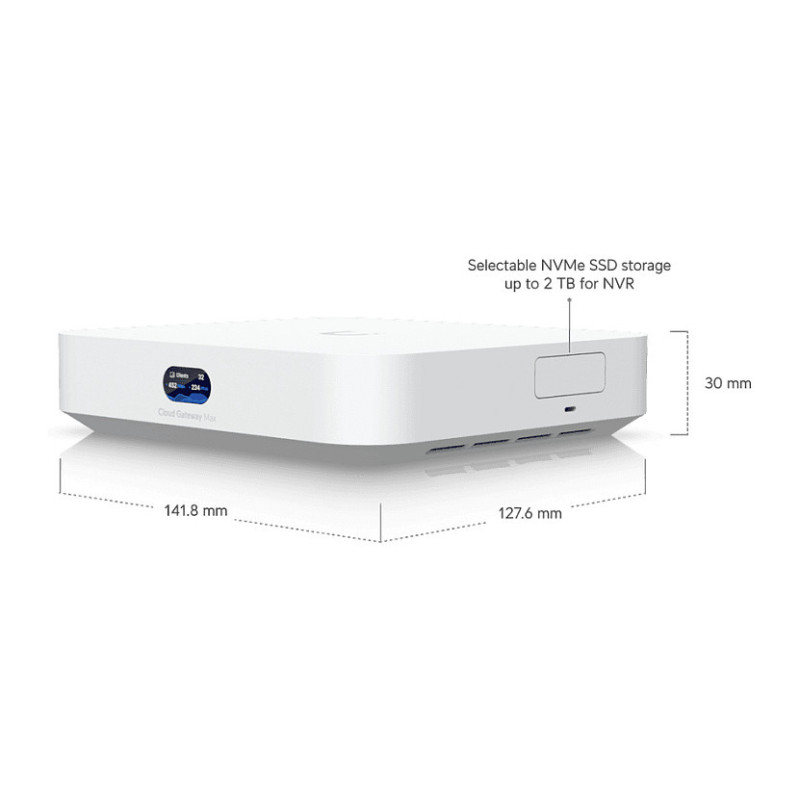

Width: 141.8 mm
Depth: 127.6 mm
Height: 30 mm
Weight: 460 g

Packaging content

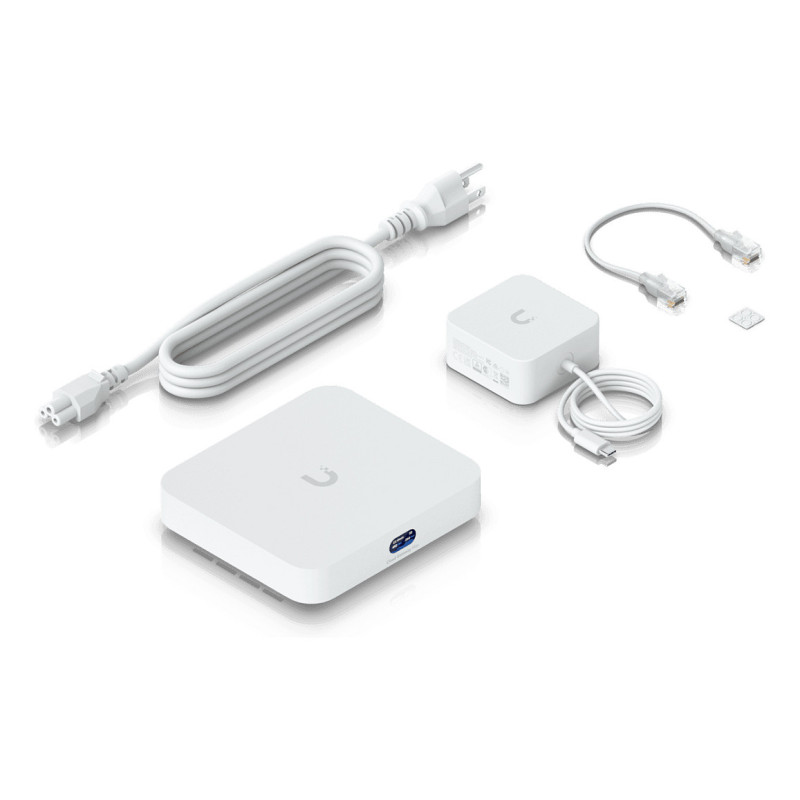

AC adapter included: Yes
Manual: Yes
Cables included: LAN (RJ-45)

Operational conditions

Operating temperature (T-T): -10 - 40 °C
Operating relative humidity (H-H): 5 - 95%

Certificates

Compliance certificates: CE, Federal Communications Commission (FCC), Industry Canada (IC)
