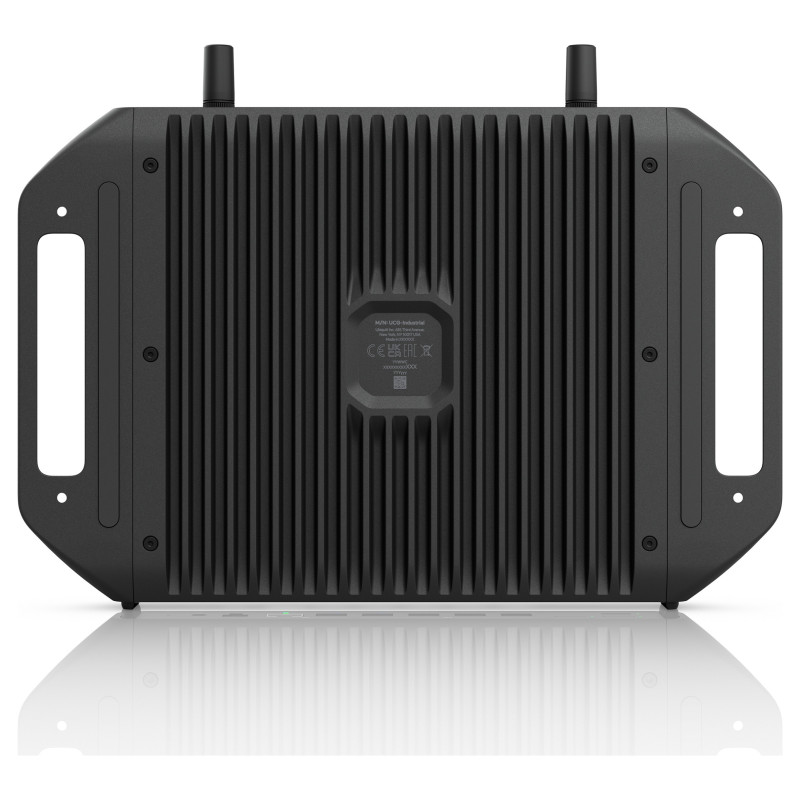

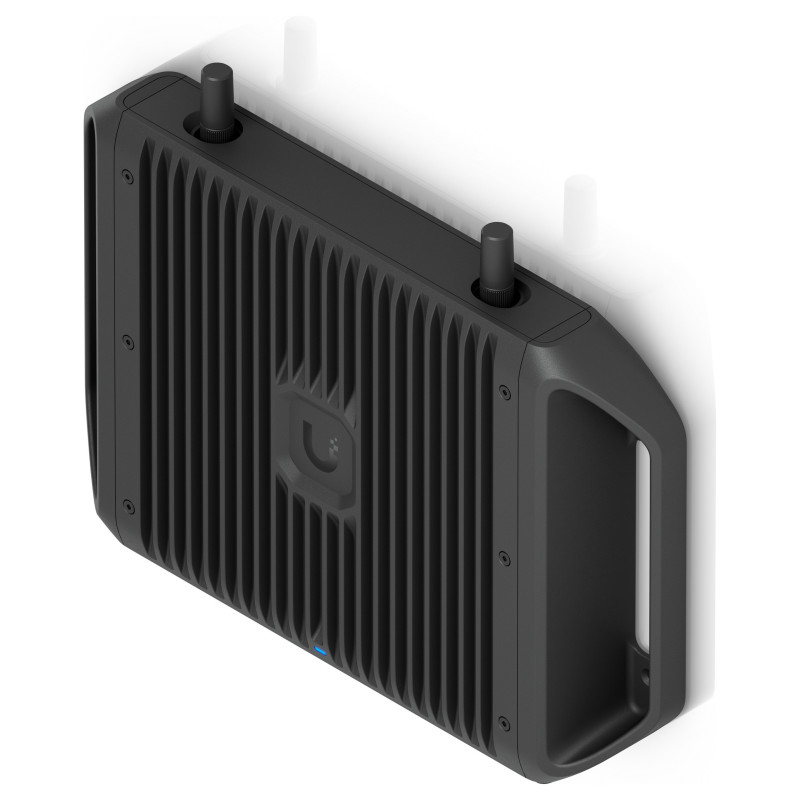

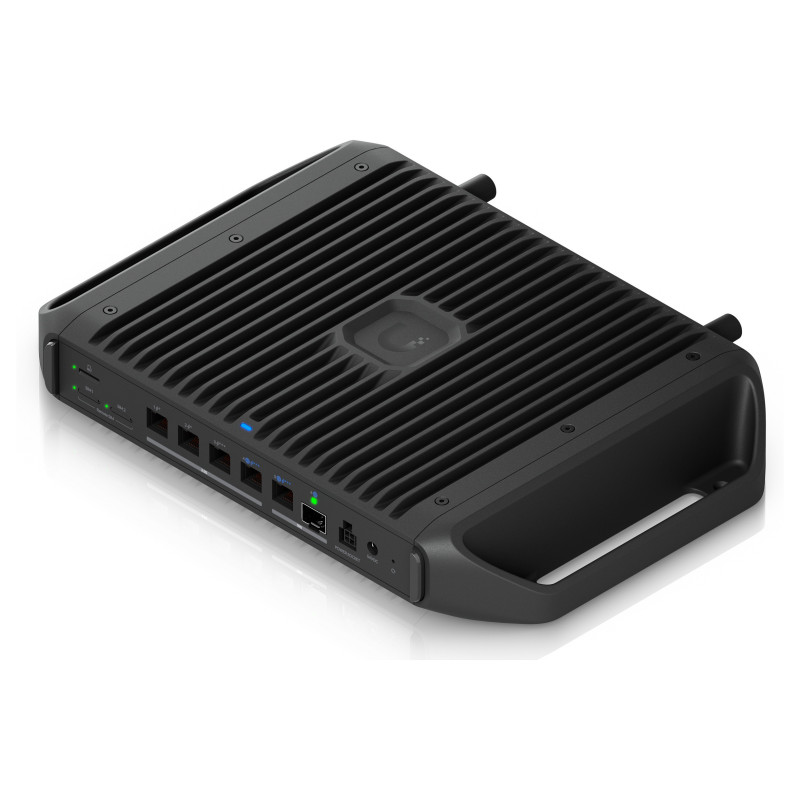

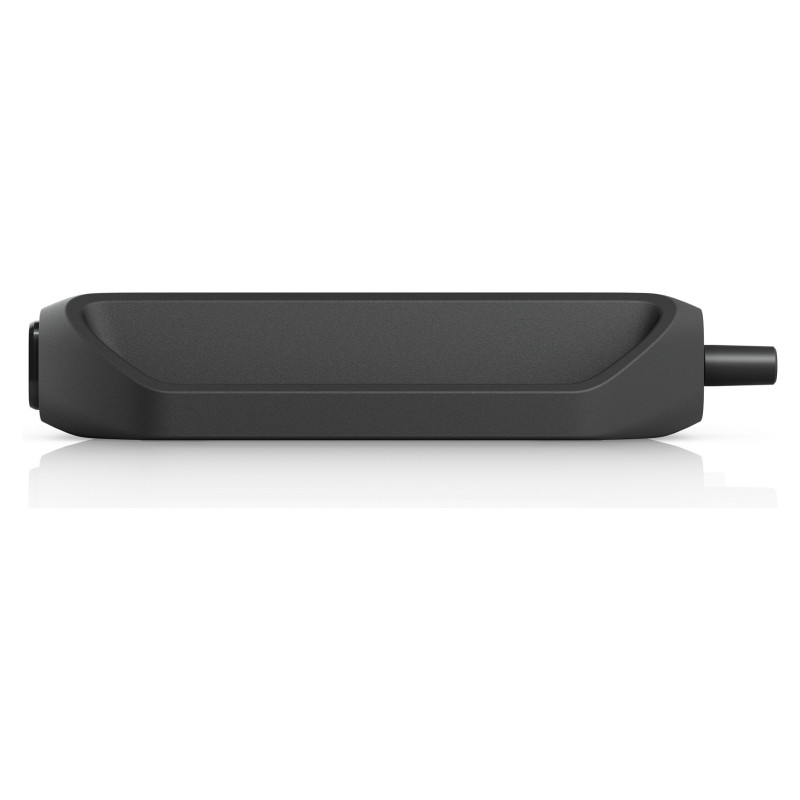

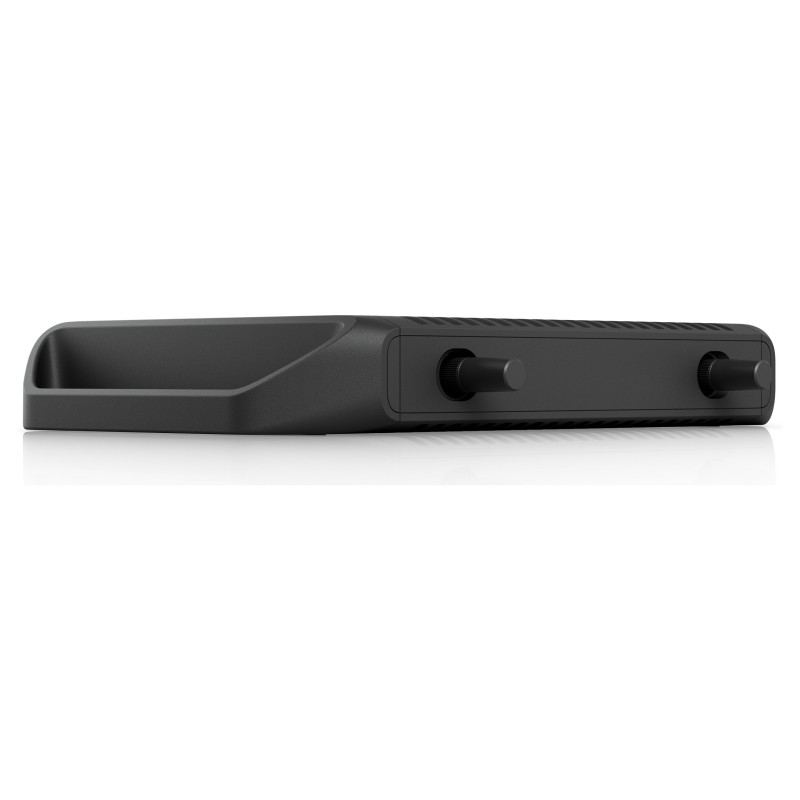

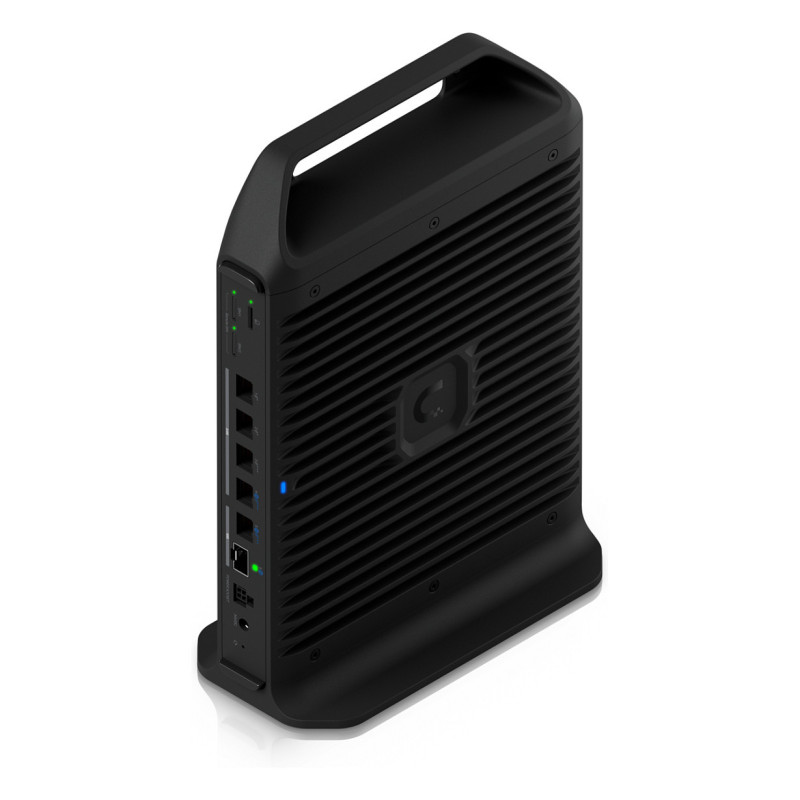

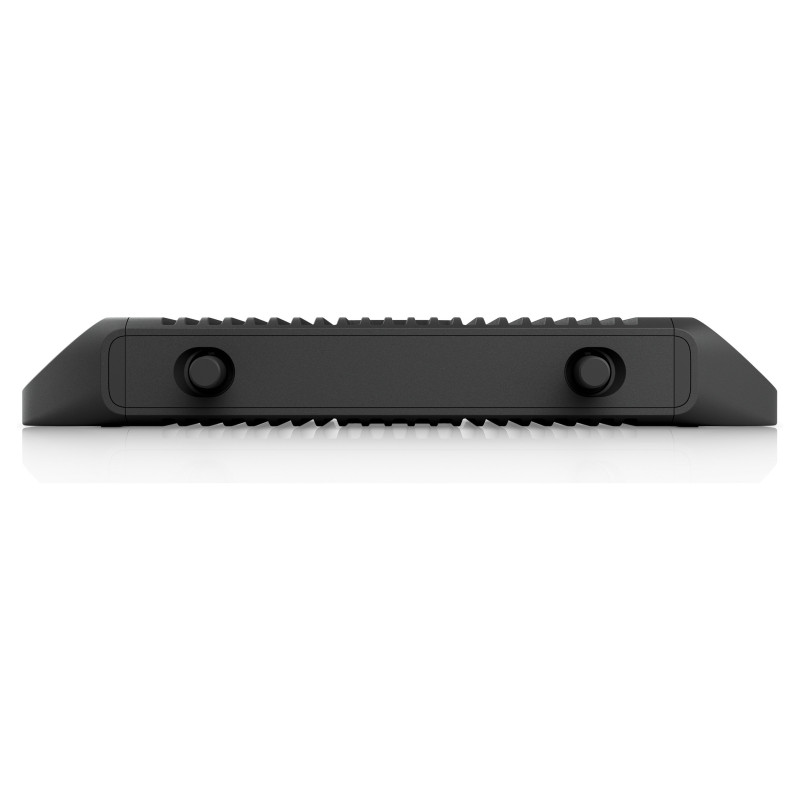

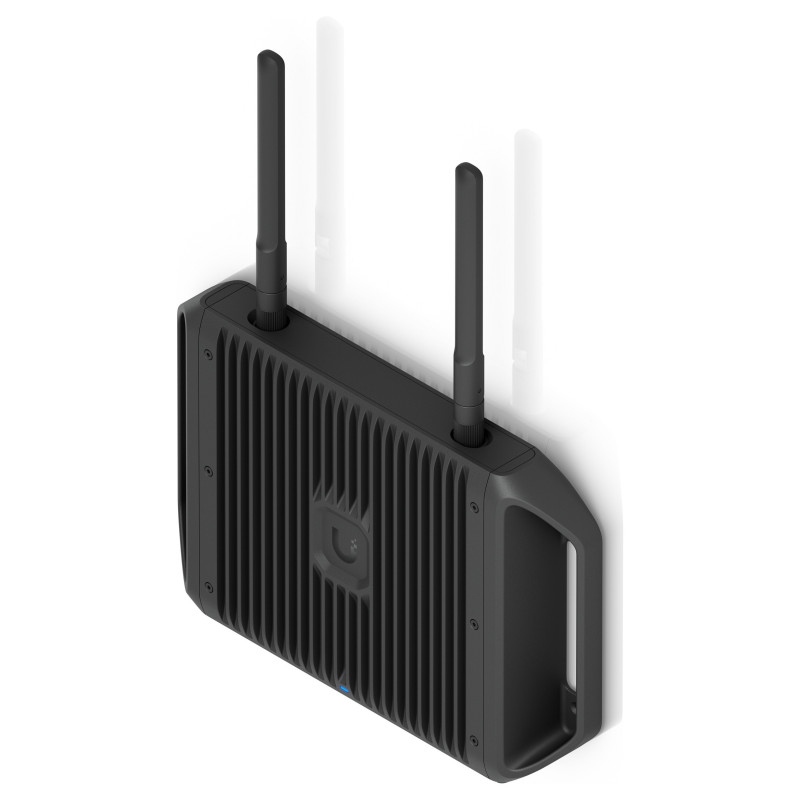

Ubiquiti UCG-Industrial gateway / controller

Ubiquiti UCG-Industrial. Product colour: Black, Mounting type: Rack/Desktop/Wall, LED indicators: Status. Antenna type: Internal, Antenna connector type: RP-SMA, Antenna gain level (max): 5 dBi. Processor manufacturer: ARM, Processor family: ARM Cortex, Processor model: Cortex-A73. Ethernet LAN data rates: 1000,2500,10000 Mbit/s, Networking standards: IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11be, WLAN data transfer rates supported: 6,9,12,18,24,36,48,54,5.5,1,2,11,6.5,2402,1732 Mbit/s. WAN connection: Ethernet (RJ-45), SFP+
Ruggedized, fanless 10 GbE UniFi Cloud Gateway delivering 350W of total system power for high-density PoE deployments, with advanced routing capabilities and microSD storage for full UniFi application support.

Design

Product colour: Black
Mounting type: Rack/Desktop/Wall
LED indicators: Status

Features

Antenna type: Internal
Antenna connector type: RP-SMA
Antenna gain level (max): 5 dBi
Antennas quantity: 2

Performance

Feature: Built-in processor
Processor manufacturer: ARM
Processor family: ARM Cortex
Processor model: Cortex-A73
Processor frequency: 2200 MHz
Number of processors installed: 1
Internal memory: 3000 MB
Internal memory type: DDR4

Network

Ethernet LAN data rates: 1000,2500,10000 Mbit/s
Networking standards: IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11be
Feature: Wi-Fi
WLAN data transfer rates supported: 6,9,12,18,24,36,48,54,5.5,1,2,11,6.5,2402,1732 Mbit/s
Feature: Load balancing
Data transfer rate: 4.3 Gbit/s

Security

Firewall security: Yes
Feature: VLAN support
Feature: Network address translation (NAT)

Ports interfaces

Feature: SIM card slot
Number of simultaneous SIM cards: 2
Ethernet LAN (RJ-45) ports: 5
WAN connection: Ethernet (RJ-45), SFP+
Feature: DC-in jack
SFP+ ports quantity: 1

Management features

Feature: Quality of Service (QoS) support
Feature: Reset button
Feature: Multicast support

Power

Power consumption (max): 28 W
Input voltage: 100 - 240 V
Power supply: 350 W
Feature: Power over Ethernet (PoE)
Heat dissipation: 85 BTU/h
DC input voltage: 50 - 57 V
Feature: Electrostatic Discharge (ESD) protection
Electrostatic Discharge (ESD) protection (air): 8 kV
Electrostatic Discharge (ESD) protection (contact): 4 kV
Feature: Electromagnetic (EMP) protection
Electromagnetic (EMP) protection (air): 8 kV
Electromagnetic (EMP) protection (contact): 4 kV

Software

Compatible operating systems: Android, iOS

Weight dimensions

Width: 307.9 mm
Depth: 203.5 mm
Height: 43.7 mm
Weight: 2.4 kg

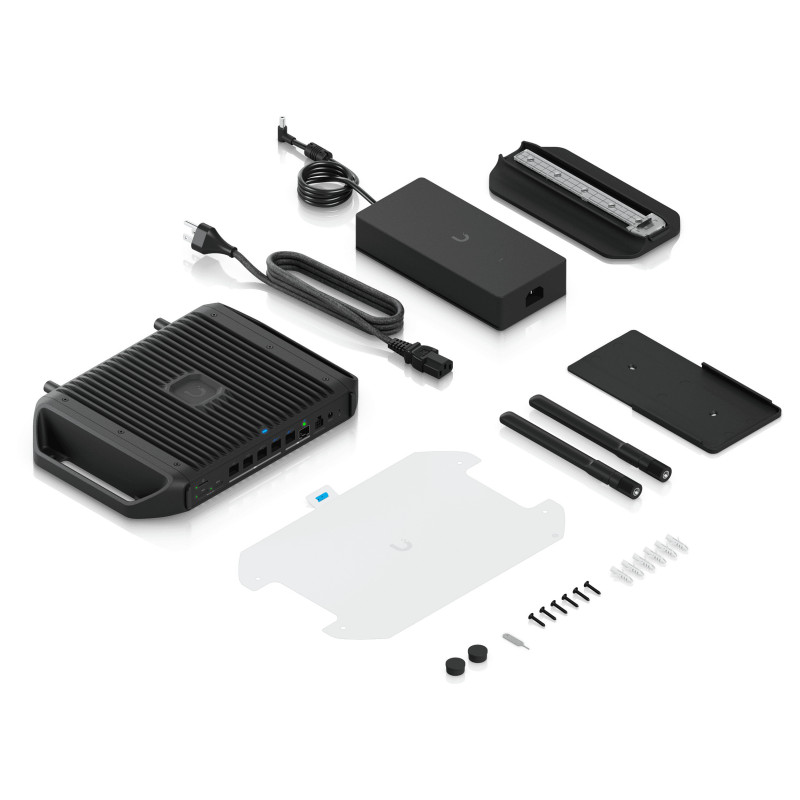

Packaging content

Feature: AC adapter included
Feature: Manual

Operational conditions

Operating temperature (T-T): -30 - 50 °C
Operating relative humidity (H-H): 5 - 95%

Certificates

Compliance certificates: CE, Federal Communications Commission (FCC), Industry Canada (IC), National Defense Authorization Act (NDAA)
