Ubiquiti UCG-Fiber (30W) gateway / controller

Ubiquiti UCG-Fiber (30W). Product colour: White, Enclosure material: Polycarbonate (PC), LED indicators: Status. Display type: LCM, Processor manufacturer: ARM, Processor family: ARM Cortex. Routing protocols: OSPF. Ethernet LAN data rates: 10,100,1000,2500,10000 Mbit/s. Security algorithms: 802.1x RADIUS, IPSec, TLS

Desktop 10G Cloud Gateway with integrated 4-port 2.5 GbE switch, selectable NVR storage, and full UniFi application support.

Design

Product colour: White
Enclosure material: Polycarbonate (PC)
LED indicators: Status

Performance

Feature: Control display unit
Display type: LCM
Feature: Built-in processor
Processor manufacturer: ARM
Processor family: ARM Cortex
Processor model: Cortex-A73
Processor frequency: 2200 MHz
Number of processors installed: 1
Internal memory: 3000 MB

Protocols

Routing protocols: OSPF

Network

Ethernet LAN data rates: 10,100,1000,2500,10000 Mbit/s
Feature: Bluetooth
Feature: Load balancing

Security

Security algorithms: 802.1x RADIUS, IPSec, TLS
Firewall security: Yes
Feature: VLAN support

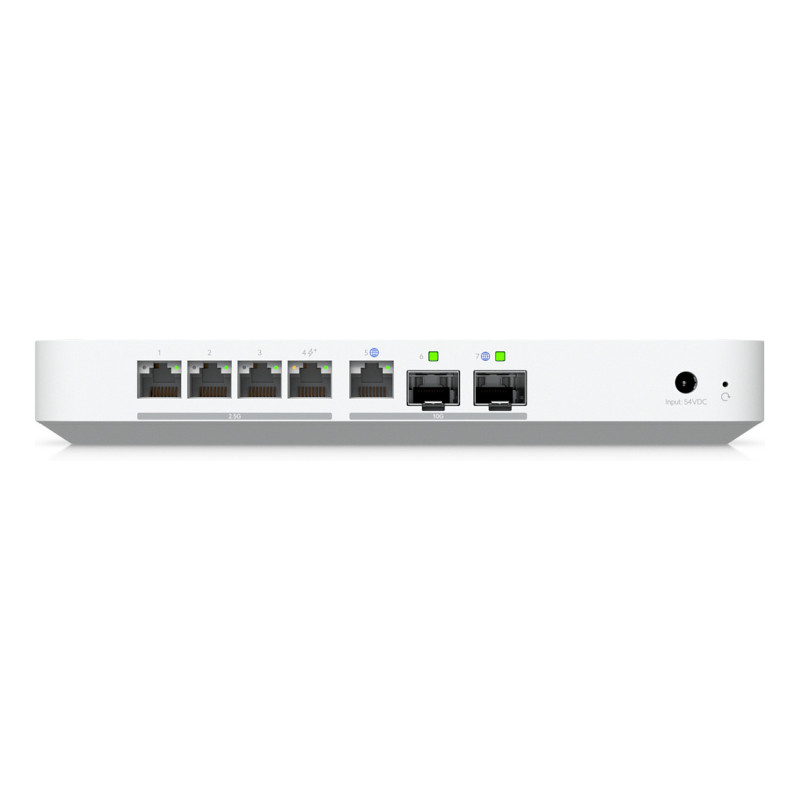

Ports & interfaces

Ethernet LAN (RJ-45) ports: 4
WAN connection: Ethernet (RJ-45), SFP, SFP+
Feature: DC-in jack
SFP+ ports quantity: 2

Management features

Feature: Quality of Service (QoS) support
Feature: Reset button
Feature: Multicast support

Power

Power consumption (max): 29.4 W
Input voltage: 100 - 240 V
Input current: 1.1 A
Power over Ethernet (PoE) type supported: PoE+
Feature: Power over Ethernet (PoE)
DC input voltage: 54 V
Feature: Electromagnetic (EMP) protection
Electromagnetic (EMP) protection (air): 8 kV
Electromagnetic (EMP) protection (contact): 4 kV

Weight & dimensions

Width: 212.8 mm
Depth: 127.6 mm
Height: 30 mm
Weight: 675 g

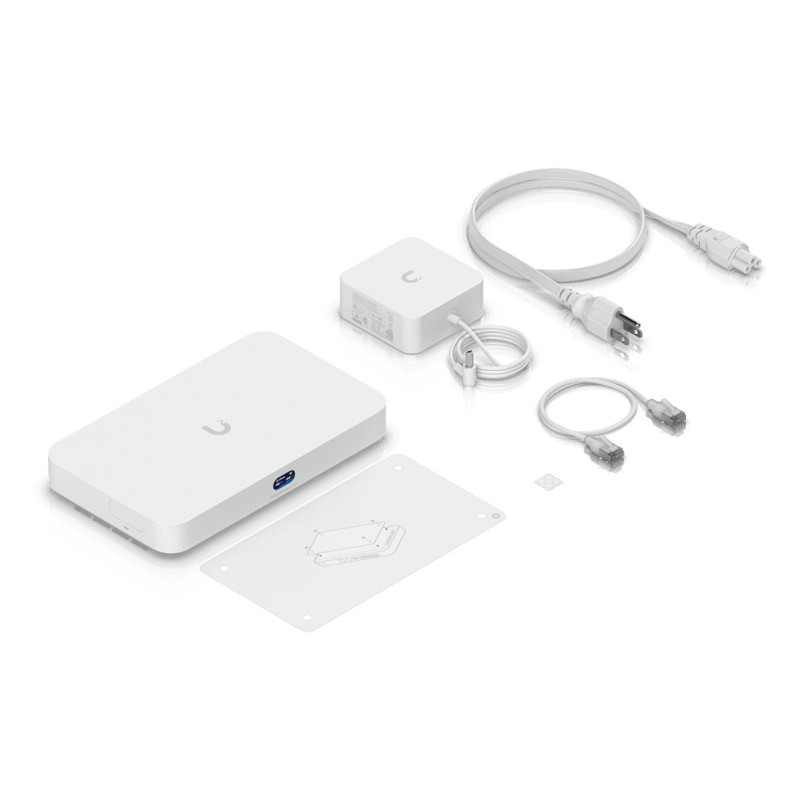

Packaging content

Feature: AC adapter included
Cables included: LAN (RJ-45), Power

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 5 - 95%

Certificates

Compliance certificates: CE, Federal Communications Commission (FCC), Industry Canada (IC)

Display

Display diagonal: 2.44 cm (0.96")

Logistics data

Export Control Classification Number (ECCN): EAR99
