Ubiquiti Gateway Max gateway / controller

Ubiquiti Gateway Max. Product colour: White, Enclosure material: Polycarbonate (PC), LED indicators: Activity, LAN, Link. Processor manufacturer: ARM, Processor model: Cortex-A53, Processor frequency: 1500 MHz. Ethernet LAN data rates: 2500 Mbit/s. Security algorithms: IPSec. WAN connection: Ethernet (RJ-45)

Compact, multi-WAN UniFi gateway with full 2.5 GbE support for high-performance networking at small-to-medium sites.

Design

Product colour: White
Enclosure material: Polycarbonate (PC)
LED indicators: Activity, LAN, Link

Features

Feature: Plug and Play

Performance

Feature: Built-in processor
Processor manufacturer: ARM
Processor model: Cortex-A53
Processor frequency: 1500 MHz
Number of processors installed: 1
Internal memory: 2000 MB
Internal memory type: DDR4

Protocols

Feature: DHCP server

Network

Ethernet LAN data rates: 2500 Mbit/s
Feature: Bluetooth

Security

Security algorithms: IPSec
Firewall security: Yes
Feature: VLAN support

Ports & interfaces

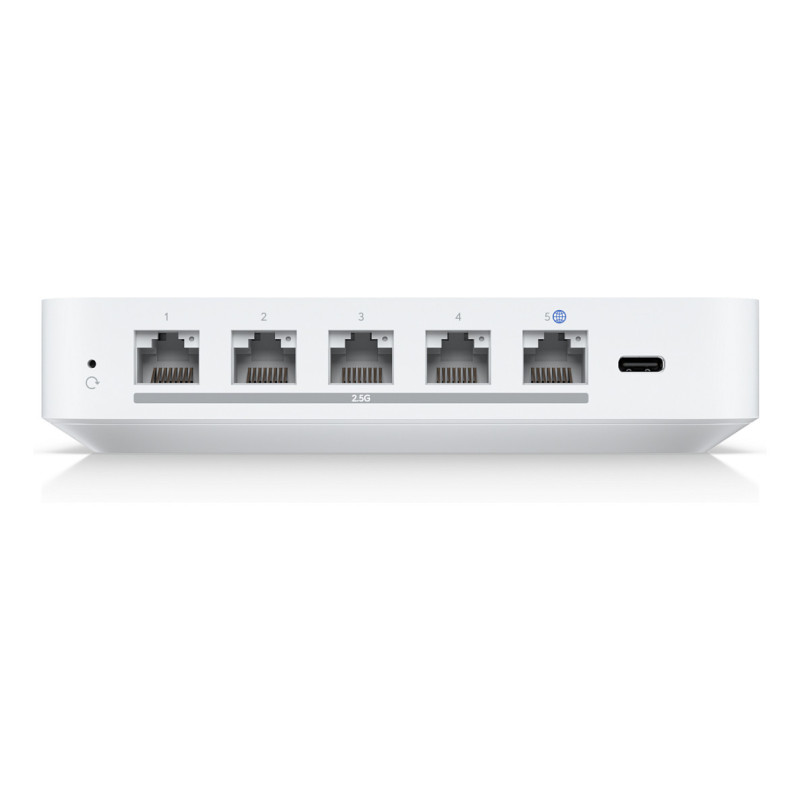

Ethernet LAN (RJ-45) ports: 5
WAN connection: Ethernet (RJ-45)

Management features

Feature: Quality of Service (QoS) support
Feature: Reset button

Power

Power consumption (max): 9.6 W
Input voltage: 100 - 240 V

Weight & dimensions

Width: 141.8 mm
Depth: 127.6 mm
Height: 30 mm
Weight: 520 g

Packaging content

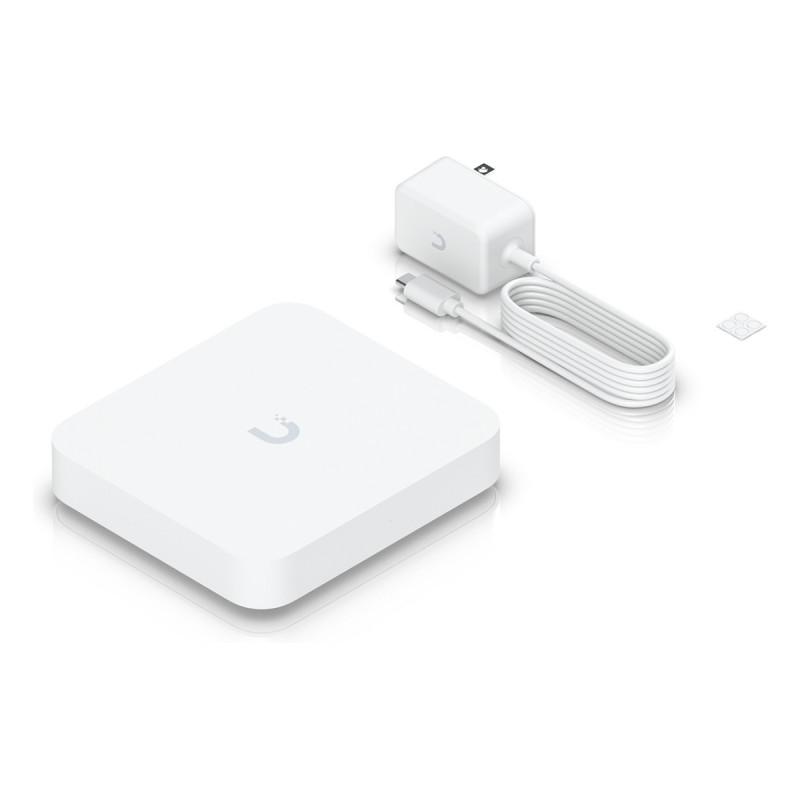

Feature: AC adapter included

Operational conditions

Operating temperature (T-T): -10 - 40 °C
Operating relative humidity (H-H): 5 - 95%

Sustainability

Feature: Sustainability compliance

Certificates

Compliance certificates: CE, Federal Communications Commission (FCC), Industry Canada (IC)
