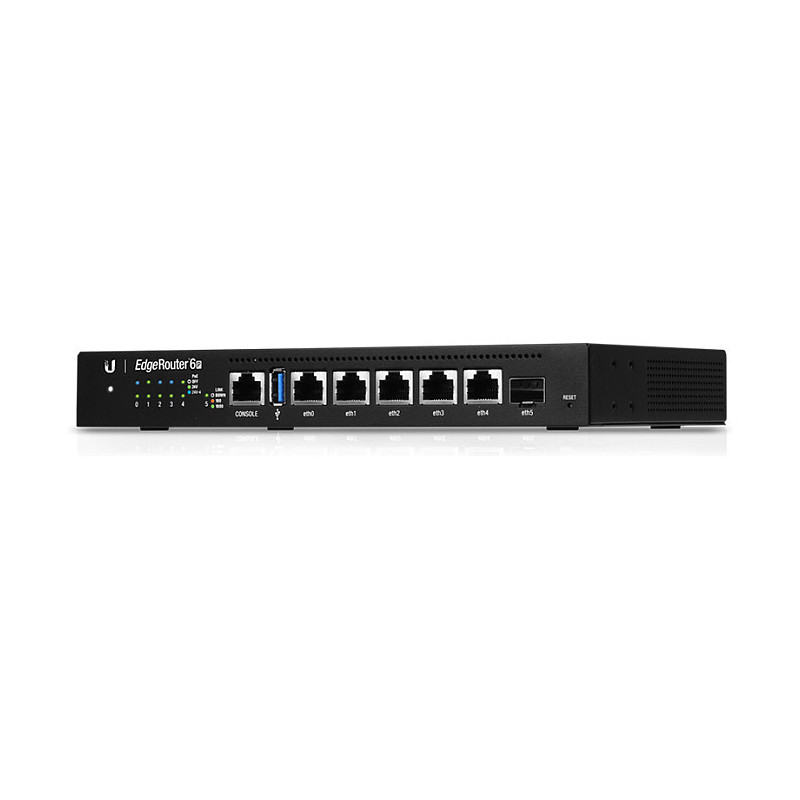

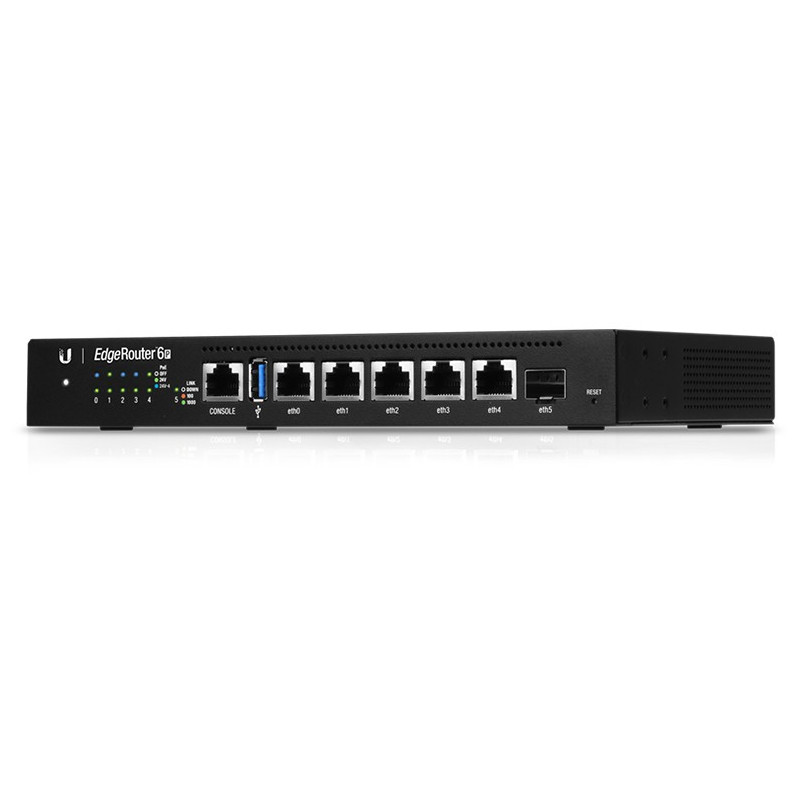

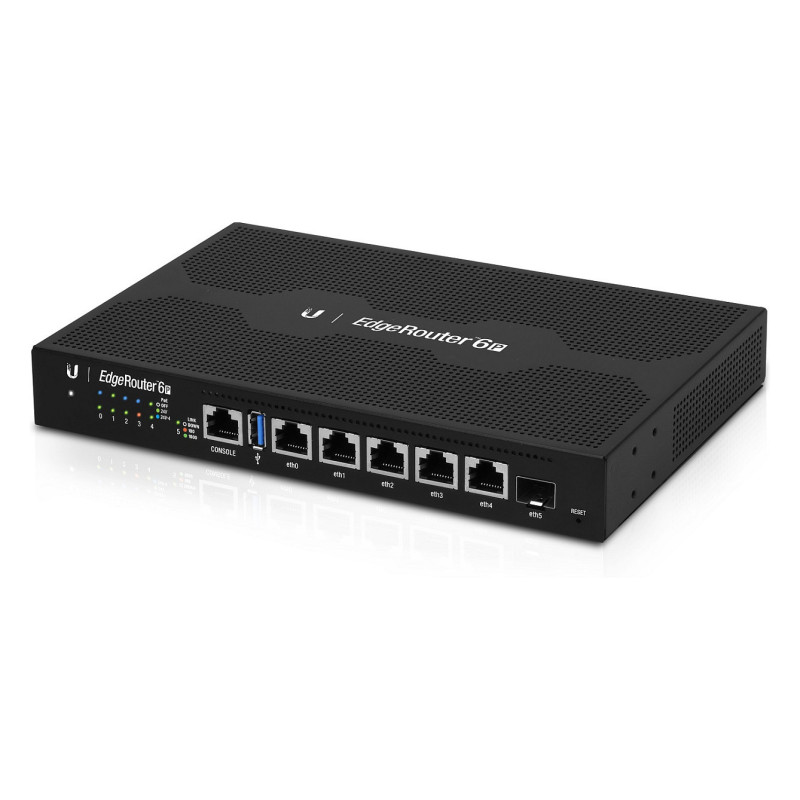

Ubiquiti EdgeRouter 6P wired router

Ubiquiti EdgeRouter 6P. Ethernet interface type: Gigabit Ethernet, Cabling technology: 10/100/1000Base-T(X), Ethernet LAN data rates: 10,100,1000 Mbit/s. USB version: 3.2 Gen 1 (3.1 Gen 1). Management protocols: UNMS, CLI, SNMP, NetFlow, LLDP, NTP. Security algorithms: IPSEC, SNMP, SSH, VPN support: IPSec Site-to-Site and Remote Access OpenVPN Site-to-Site and Remote Access PPTP Remote Access.... Processor frequency: 1000 MHz, Storage media: eMMC, Internal storage capacity: 4 GB
6-Port Gigabit Router with 1 SFP Port
The EdgeRouter™ 6P delivers 3.4 million packets per second routing performance in a compact and cost-effective unit.
Price/Performance Breakthrough
The EdgeRouter™ 6P offers next-generation price/performance value: up to 3.4 million packets per second processing with a line rate of up to 6 Gbps.
Versatile Design
The EdgeRouter 6P can be rack-mounted with the use of the EdgeRouter Rack Mount Kit, model ER-RMKIT (sold separately).
Centralized Management
The EdgeRouter 6P is supported and managed by UNMS™ (Ubiquiti® Network Management System), a comprehensive controller with an intuitive UI. A single control plane manages registered EdgeMAX® devices across multiple sites.

WAN connection

Ethernet WAN: Yes

Network

Ethernet interface type: Gigabit Ethernet
Cabling technology: 10/100/1000Base-T(X)
Ethernet LAN data rates: 10,100,1000 Mbit/s
Forwarding rate: 3.4 Mpps
Switching capacity: 6 Gbit/s

Mobile network

Mobile network generation: Not supported

Management features

Web-based management: Yes
Quality of Service (QoS) support: Yes
Reset button: Yes

Ports interfaces

Ethernet LAN (RJ-45) ports: 6
Gigabit Ethernet (copper) ports quantity: 6
Power over Ethernet (PoE) ports quantity: 5
Installed SFP modules quantity: 1
USB ports quantity: 1
USB version: 3.2 Gen 1 (3.1 Gen 1)
Serial ports quantity: 1
DC-in jack: Yes

Protocols

Management protocols: UNMS, CLI, SNMP, NetFlow, LLDP, NTP
DHCP client: Yes
DHCP server: Yes

Security

Security algorithms: IPSEC, SNMP, SSH
Firewall: Yes
VPN support: IPSec Site-to-Site and Remote AccessOpenVPN Site-to-Site and Remote AccessPPTP Remote AccessL2TP Remote AccessPPTP Client

Packaging content

AC adapter included: Yes
Manual: Yes

Features

Built-in processor: Yes
Processor frequency: 1000 MHz
Storage media: eMMC
Internal storage capacity: 4 GB
Internal memory: 1024 MB
Internal memory type: DRAM

Design

Product colour: Black
Rack mounting: Yes
Rack capacity: 1U
LED indicators: Activity, Link, Speed

Power

Power consumption (typical): 16 W
Power source type: AC
AC input voltage: 110 - 240 V

Operational conditions

Operating temperature (T-T): -10 - 50 °C
Operating relative humidity (H-H): 10 - 90%

Weight dimensions

Width: 229 mm
Depth: 136.5 mm
Height: 31.1 mm
Weight: 730 g

Packaging data

Package type: Box

Logistics data

Harmonized System (HS) code: 85176990
