Ubiquiti Dream 7 wireless router

Ubiquiti Dream 7. Wi-Fi band: Tri-band (2.4 GHz / 5 GHz / 6 GHz), Top Wi-Fi standard: Wi-Fi 7 (802.11be), WLAN data transfer rate (max): 5700 Mbit/s. Ethernet LAN interface type: 2.5 Gigabit Ethernet, Ethernet LAN data rates: 2500 Mbit/s, Networking standards: IEEE 802.1Q. Compatible memory cards: MicroSD (TransFlash), Fiber optic connector: SFP+. Security algorithms: PPSK, WPA, WPA-Enterprise, WPA-PSK, WPA2, WPA3, MAC address table: 2000 entries. Routing protocols: OSPF

Desktop 10G Cloud Gateway with integrated WiFi 7, PoE switch, microSD storage, and full UniFi application support.

WAN connection

Feature: Ethernet WAN

Wireless LAN features

Wi-Fi band: Tri-band (2.4 GHz / 5 GHz / 6 GHz)
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
WLAN data transfer rate (max): 5700 Mbit/s
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
WLAN data transfer rate (first band): 688 Mbit/s
WLAN data transfer rate (second band): 4300 Mbit/s
WLAN data transfer rate (third band): 5700 Mbit/s

Network

Feature: Ethernet LAN
Ethernet LAN interface type: 2.5 Gigabit Ethernet
Ethernet LAN data rates: 2500 Mbit/s
Networking standards: IEEE 802.1Q
Feature: Multicast support
Feature: Load balancing system
Feature: Policy-based routing
Maximum coverage: 160 m²
VPN server: Identity Endpoint One-Click VPN, Teleport Zero-Configuration VPN, WireGuard, OpenVPN, L2TP
Maximum Tx power (2.4 GHz): 23 dBmW
Maximum Tx power (5 GHz): 26 dBmW

Ports & interfaces

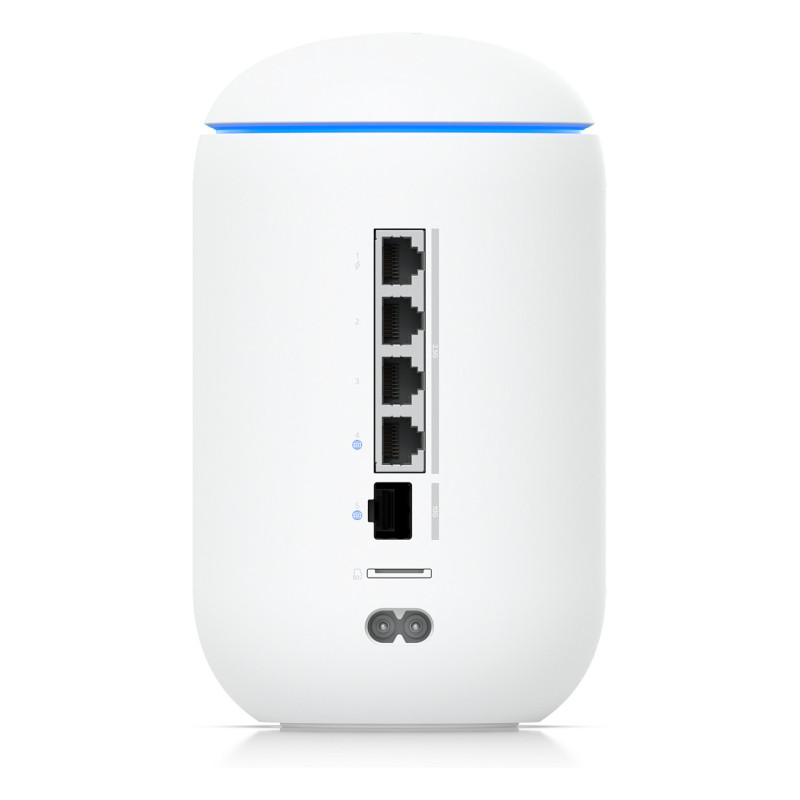

Ethernet LAN (RJ-45) ports: 4
Feature: Memory card slot(s)
Compatible memory cards: MicroSD (TransFlash)
Fiber optic connector: SFP+

Management features

Feature: Web-based management
Feature: Quality of Service (QoS) support
Feature: Reset button
Feature: MU-MIMO technology
Feature: MIMO

Security

Security algorithms: PPSK, WPA, WPA-Enterprise, WPA-PSK, WPA2, WPA3
Feature: Firewall
Feature: Filtering
MAC address table: 2000 entries

Protocols

Feature: DHCP server
Routing protocols: OSPF

Design

Product colour: White
Housing material: Polycarbonate (PC)
LED indicators: Status
Feature: Built-in display
Display type: LCM
Product type: Tabletop router

Certificates

Compliance certificates: CE, Federal Communications Commission (FCC), Industry Canada (IC)

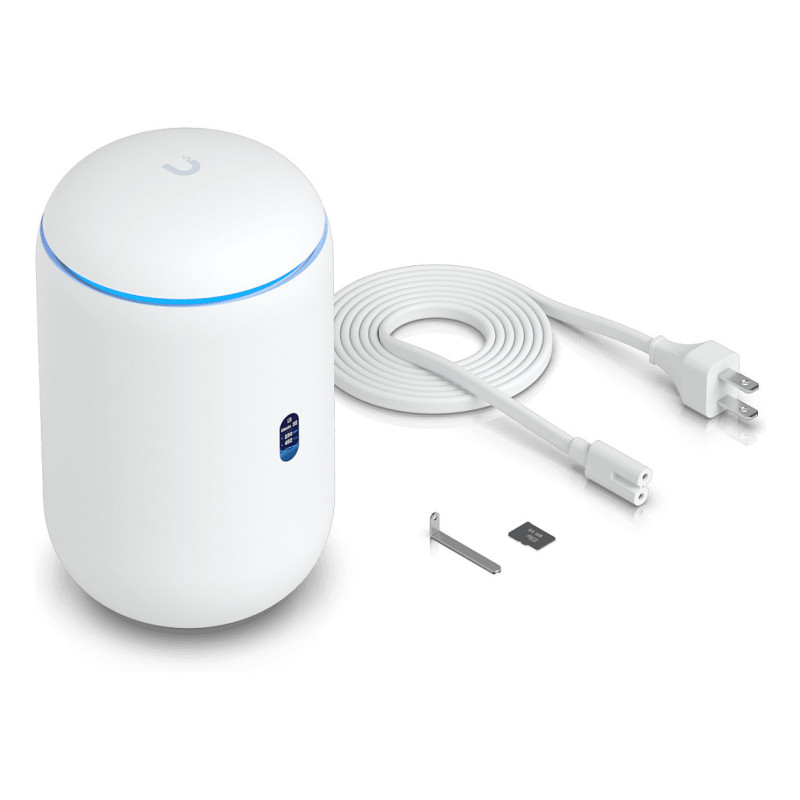

Packaging content

Cables included: AC
Feature: Manual

Antenna

Antenna design: Internal
Antenna gain level (max): 7 dBi

Features

Feature: Built-in processor
Processor architecture: ARM Cortex-A53
Processor frequency: 1500 MHz
Processor cores: 4
Internal memory: 3000 MB
Number of simultaneously connected devices (max): 300
Feature: Bluetooth

Power

Power source type: AC, PoE
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Power consumption (typical): 26 W
Power supply: 50 W
Feature: Power over Ethernet (PoE)
Power over Ethernet (PoE) voltage: 57 V

Operational conditions

Operating temperature (T-T): -10 - 40 °C
Operating relative humidity (H-H): 5 - 95%

Weight & dimensions

Width: 110 mm
Depth: 110 mm
Height: 184.1 mm
Weight: 1.1 kg

Packaging data

Number of products included: 1 pc(s)
