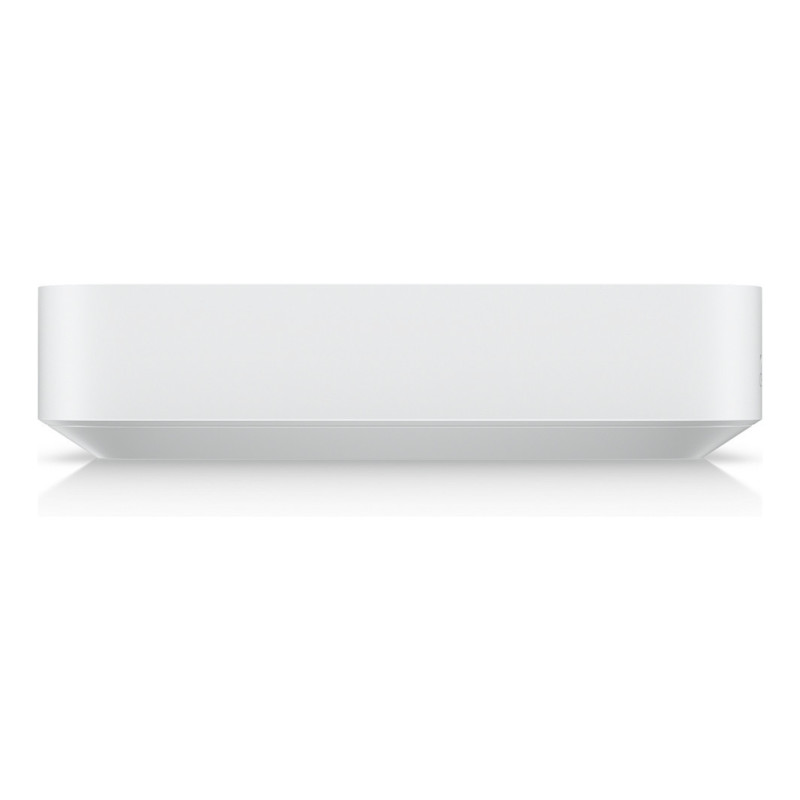

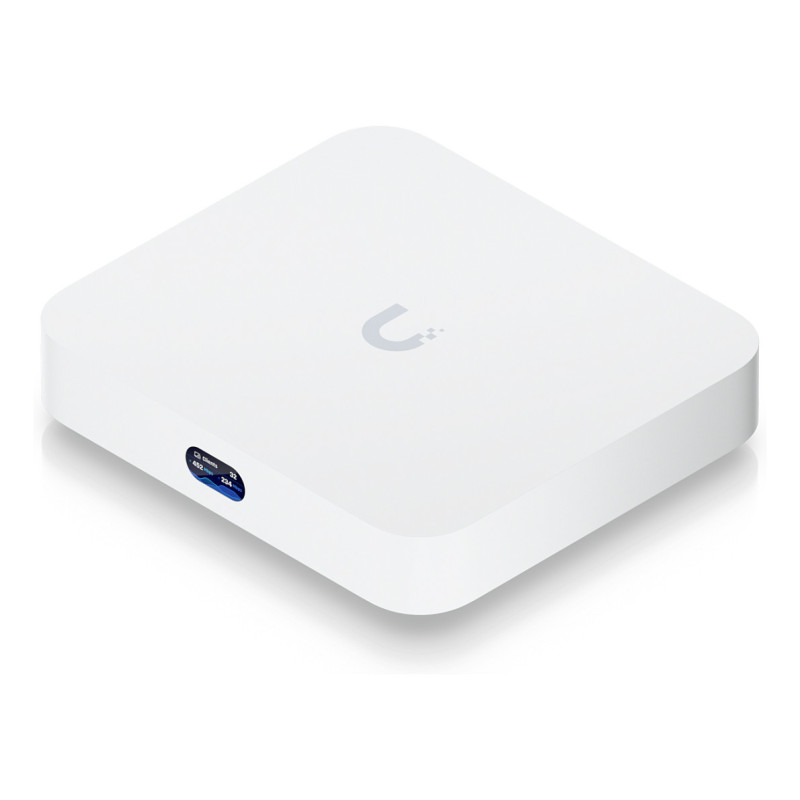

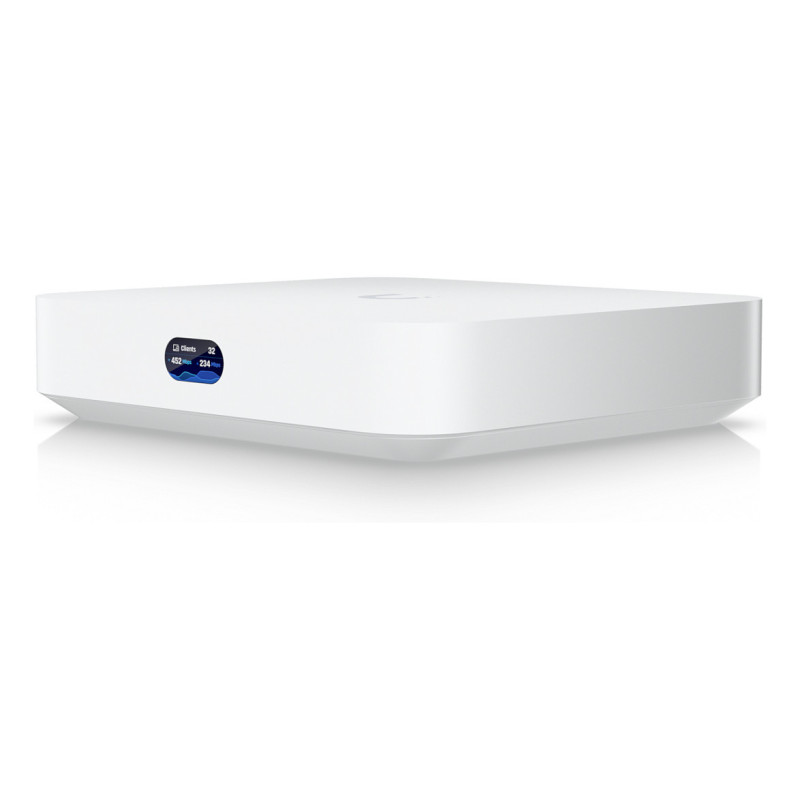

Ubiquiti Cloud Gateway Max gateway / controller

Ubiquiti Cloud Gateway Max. Product colour: White, Enclosure material: Polycarbonate (PC), LED indicators: Activity, LAN. Display type: LCM, Processor manufacturer: ARM, Processor family: ARM Cortex. Ethernet LAN data rates: 10,100,1000 Mbit/s, Cabling technology: 10/100/1000Base-T(X). WAN connection: Ethernet (RJ-45). Power consumption (max): 16.1 W, Input voltage: 100 - 240 V, Output voltage: 5 V

Compact 2.5G Cloud Gateway with 30+ UniFi device / 300+ client support, 1.5 Gbps IPS routing, and selectable NVR storage.

Design

Product colour: White
Enclosure material: Polycarbonate (PC)
LED indicators: Activity, LAN

Performance

Feature: Control display unit

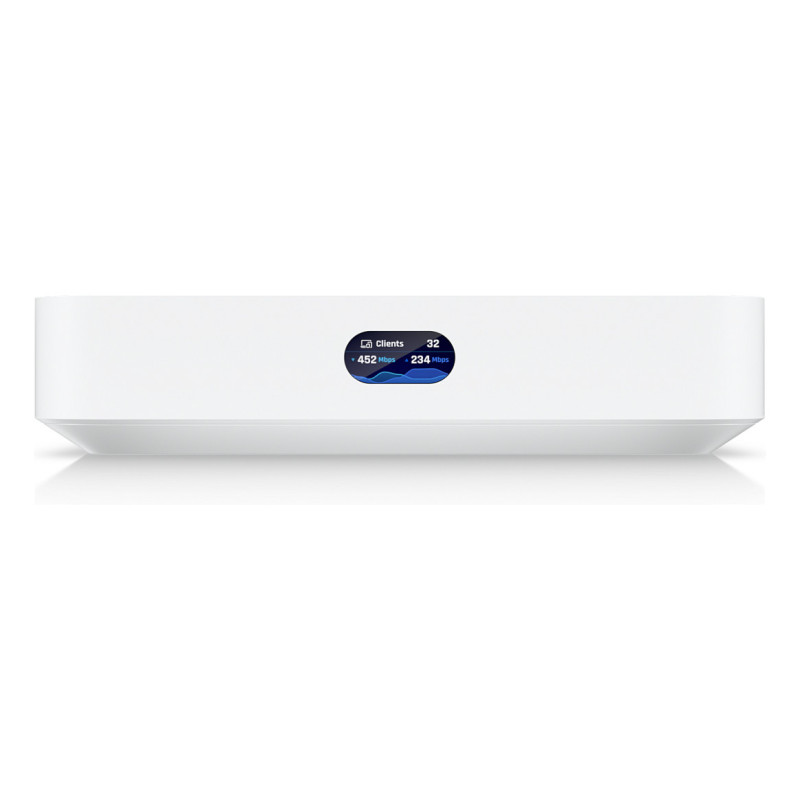

Display type: LCM
Feature: Built-in processor
Processor manufacturer: ARM
Processor family: ARM Cortex
Processor model: Cortex-A53
Processor frequency: 1500 MHz
Number of processors installed: 1
Internal memory: 3072 MB
Internal memory type: DDR4
SSD capacity: 512 GB

Protocols

Feature: DHCP server

Network

Ethernet LAN data rates: 10,100,1000 Mbit/s
Feature: Bluetooth
Cabling technology: 10/100/1000Base-T(X)

Security

Firewall security: Yes
Feature: VLAN support

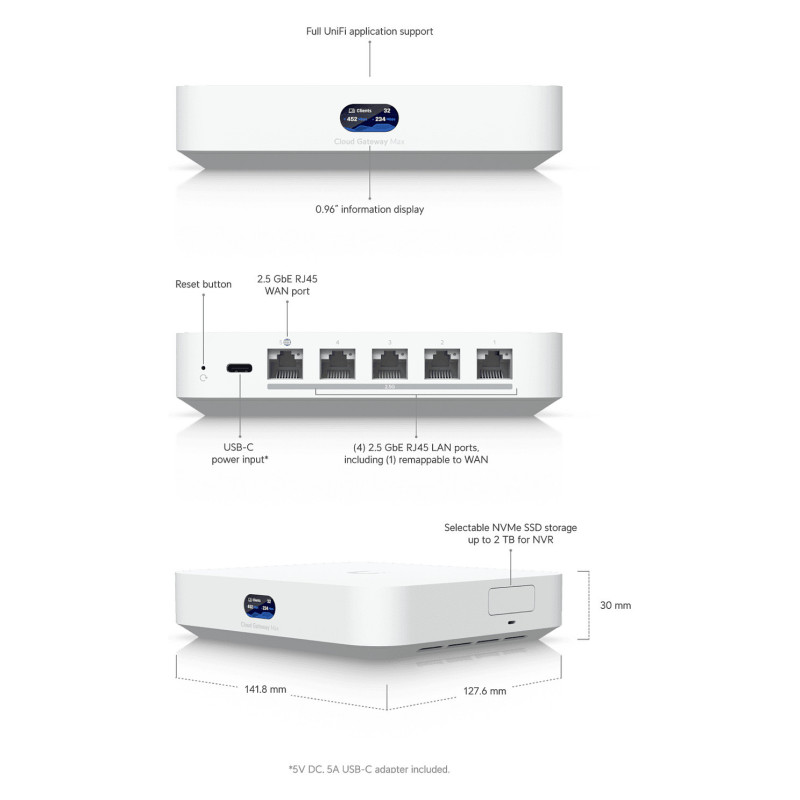

Ports & interfaces

Ethernet LAN (RJ-45) ports: 4
WAN connection: Ethernet (RJ-45)

Management features

Feature: Quality of Service (QoS) support
Feature: Reset button

Power

Power consumption (max): 16.1 W
Input voltage: 100 - 240 V
Output voltage: 5 V
Output current: 5 A

Weight & dimensions

Width: 141.8 mm
Depth: 127.6 mm
Height: 30 mm
Weight: 519 g

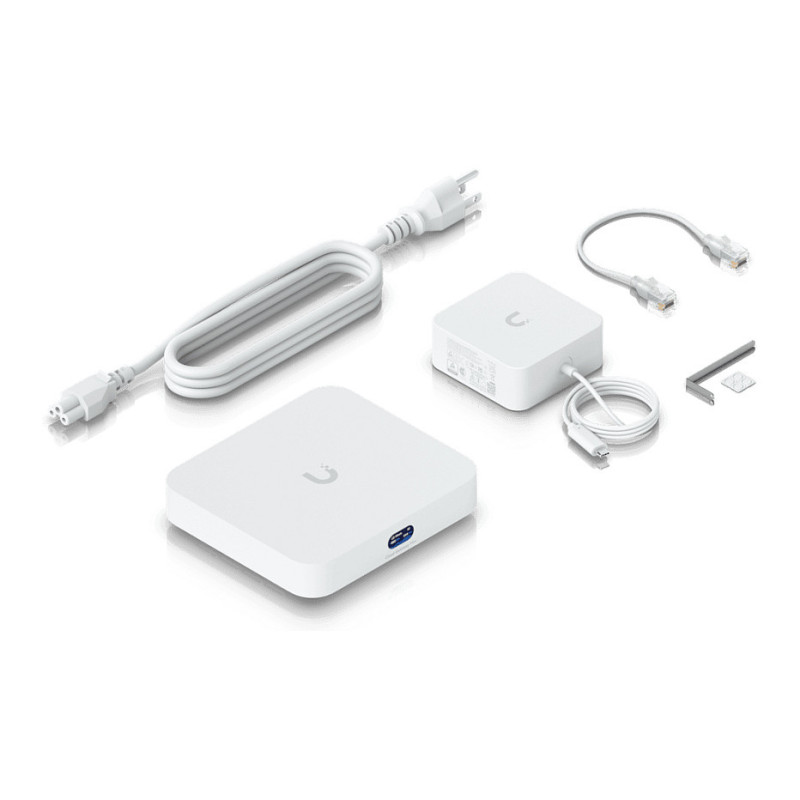

Packaging content

Feature: AC adapter included
Feature: Manual
Cables included: LAN (RJ-45)

Operational conditions

Operating temperature (T-T): -10 - 40 °C
Operating relative humidity (H-H): 5 - 95%

Certificates

Compliance certificates: CE, Federal Communications Commission (FCC), Industry Canada (IC)
