TP-Link TL-WR840N wireless router

TP-Link TL-WR840N. WAN connection type: RJ-45. Wi-Fi band: Single-band (2.4 GHz), Top Wi-Fi standard: Wi-Fi 4 (802.11n), WLAN data transfer rate (max): 300 Mbit/s. Ethernet LAN interface type: Fast Ethernet, Ethernet LAN data rates: 10,100 Mbit/s, Cabling technology: 10/100Base-T(X). Security algorithms: WEP, WPA, WPA-Enterprise, WPA2, WPA2-Enterprise, Firewall security: SPI. Supported network protocols: IPv4, IPv6

Highlights:
- 300Mbps wireless transmission rate ideal for both bandwidth sensitive tasks and basic work;
- Easy wireless security encryption at a push of WPS button;
- IP based bandwidth control allows administrators to determine how much bandwidth is allotted to each PC;
- WDS wireless bridge provides seamless bridging to expand your wireless network.

What This Product Does
The 300Mbps Wireless N Router TL-WR840N is a combined wired/wireless network connection device designed specifically for small business and home office networking requirements. The TL-WR840N creates an exceptional and advanced wireless performance, making it ideal for streaming HD video, VoIP and online gaming. Also, Wi-Fi Protected Setup (WPS) button on the sleek and fashionable exterior ensures WPA2 encryptions, preventing the network from outside intrusions.

300Mbps Wireless N Speed - Fast Download Speed
TP-LINK's TL-WR840N is a high speed solution that is compatible with IEEE 802.11b/g/n. Based on 802.11n technology, TL-WR840N gives users wireless performance at up to 300Mbps, which can meet your most demanding home networking needs, such as HD streaming, online gaming and large files downloading.

CCA Technology - Stable Wireless Signals
Clear Channel Assessment (CCA) automatically avoids channel conflicts using its clear channel selection feature and fully realizes the advantages of channel binding, greatly enhancing wireless performance.

IP QoS -- Manage your Bandwidth
Within the wireless network, indiscriminate Internet surfing and bandwidth-guzzling downloads by internal users often leave homes or small offices with insufficient bandwidth. TL-WR840N supports an IP QoS function, allowing optimum utilization of bandwidth and offering bandwidth control over congestion, preventing bandwidth abuse. In this way, users of a small network receive committed and specific bandwidth, preventing non-critical applications from degrading network performance.

Easy To Use
With the TL-WR840N even novice users can setup their networks. The device comes with a CD featuring an Easy Setup Assistant that leads users through the setup process step-by-step, and even helps with wireless network settings and security configurations.

Features:
- Wireless N speed of up to 300Mbps makes it ideal for bandwidth consuming or interruption sensitive applications like video streaming, online gaming and VoIP;
- 2T2R MIMO™ delivers greater throughput at range versus conventional 1T1R;
- Easily setup a WPA encrypted secure connection at a push of the QSS button;
- WDS wireless bridge provides seamless bridging to expand your wireless network;
- QoS function assures the quality of VoIP and multimedia streaming;
- Wi-Fi On/Off Button allows users to simply turn their wireless radio on or off;
- Features parental control function managing the internet access of children or employee's computer;
- Supports virtual server, special application and DMZ host ideal for creating a website within your LAN;
- Offers Auto-mail function for system log, convenient for managing the router;
- Backward compatible with 802.11b/g products;
- Easy Setup Assistant provides quick & hassle free installation;
- Sleek exterior, can be mounted on a wall or placed horizontally on a table or desk.

WAN connection

Feature: Ethernet WAN
WAN connection type: RJ-45

Wireless LAN features

Wi-Fi band: Single-band (2.4 GHz)
Top Wi-Fi standard: Wi-Fi 4 (802.11n)
WLAN data transfer rate (max): 300 Mbit/s
Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n)

Network

Feature: Ethernet LAN
Ethernet LAN interface type: Fast Ethernet
Ethernet LAN data rates: 10,100 Mbit/s
Cabling technology: 10/100Base-T(X)
Networking standards: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Feature: Port forwarding
Feature: Port triggering
Number of guest networks (2.4 GHz): 1
VPN support: PPTP, L2TP, IPSec
Receiver sensitivity: 270M: -68dBm@10% PER130M: -68dBm@10% PER108M: -68dBm@10% PER54M: -68dBm@10% PER11M: -85dBm@8% PER6M: -88dBm@10% PER1M: -90dBm@8% PER

Ports & interfaces

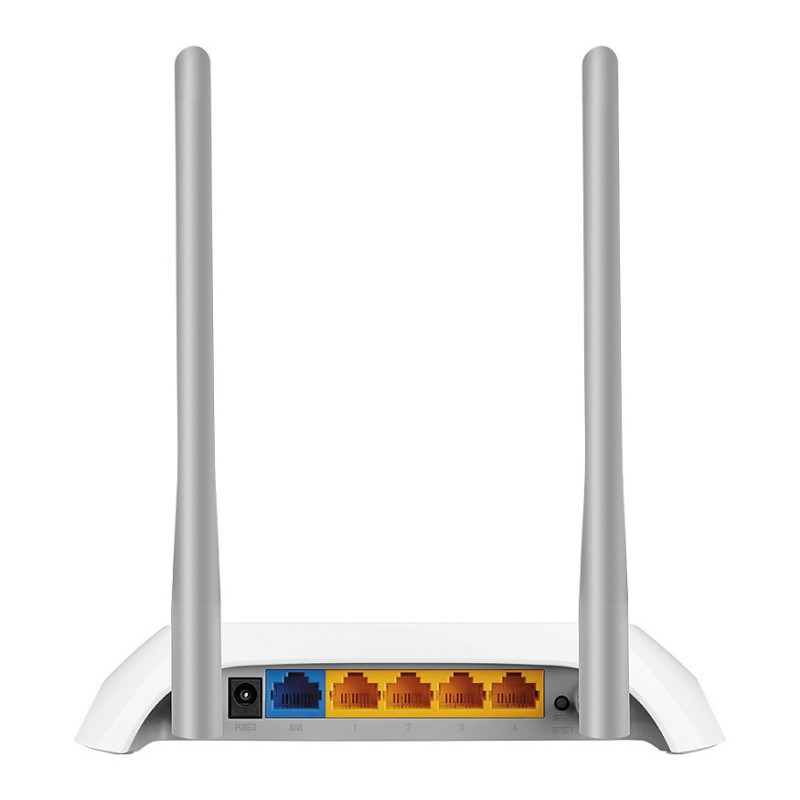

Ethernet LAN (RJ-45) ports: 4
Feature: DC-in jack

Management features

Feature: Web-based management
Feature: Quality of Service (QoS) support
Feature: Reset button
Feature: WPS push button

Security

Security algorithms: WEP, WPA, WPA-Enterprise, WPA2, WPA2-Enterprise
Feature: Firewall
Firewall security: SPI
Feature: Guest access
Feature: Filtering
Feature: MAC address filtering
Feature: URL filtering
Feature: DMZ support

Protocols

Feature: DHCP client
Feature: DHCP server
Feature: Universal Plug and Play (UPnP)
Supported network protocols: IPv4, IPv6

Design

Product colour: Grey, White
LED indicators: Yes
Feature: On/off switch
Product type: Tabletop router

Certificates

Compliance certificates: RoHS, Federal Communications Commission (FCC), CE

Packaging content

Cables included: LAN (RJ-45)
Feature: AC adapter included
Feature: Quick installation guide

Sustainability

Feature: Sustainability compliance

Antenna

Antenna design: External
Antenna gain level (max): 5 dBi
Antennas quantity: 2

Features

Feature: Built-in processor
Processor cores: 1

Power

Power source type: DC
Output voltage: 9 V
Output current: 0.6 A

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%

System requirements

Linux operating systems supported: Yes
Mac operating systems supported: Yes

Weight & dimensions

Width: 182 mm
Depth: 128 mm
Height: 35 mm

Packaging data

Package width: 265 mm
Package depth: 180 mm
Package height: 86 mm
Package weight: 430 g

Other features

WLAN data transfer rates supported: 11,54,300 Mbit/s
