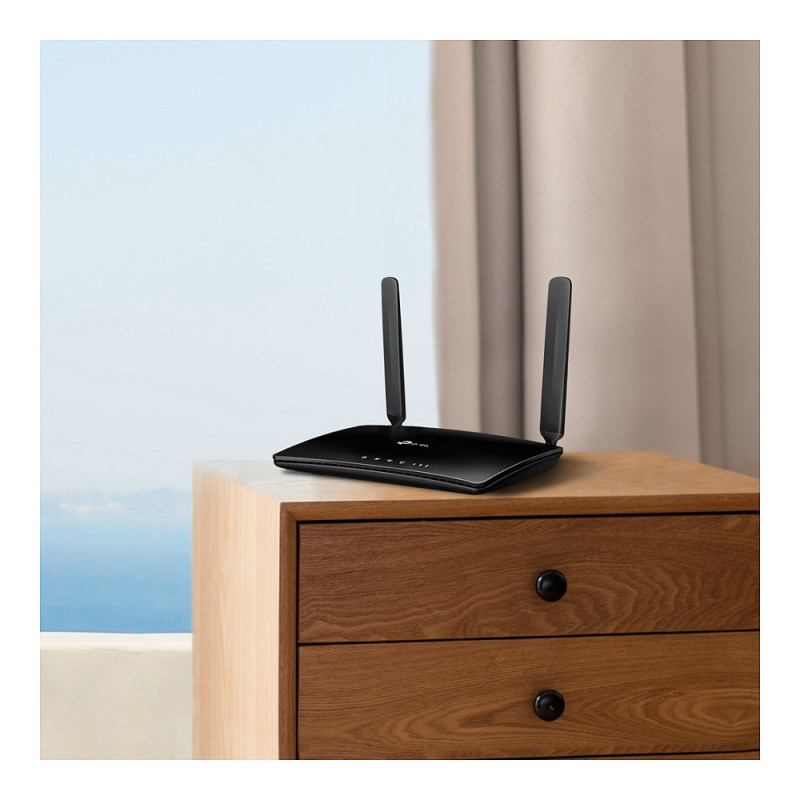

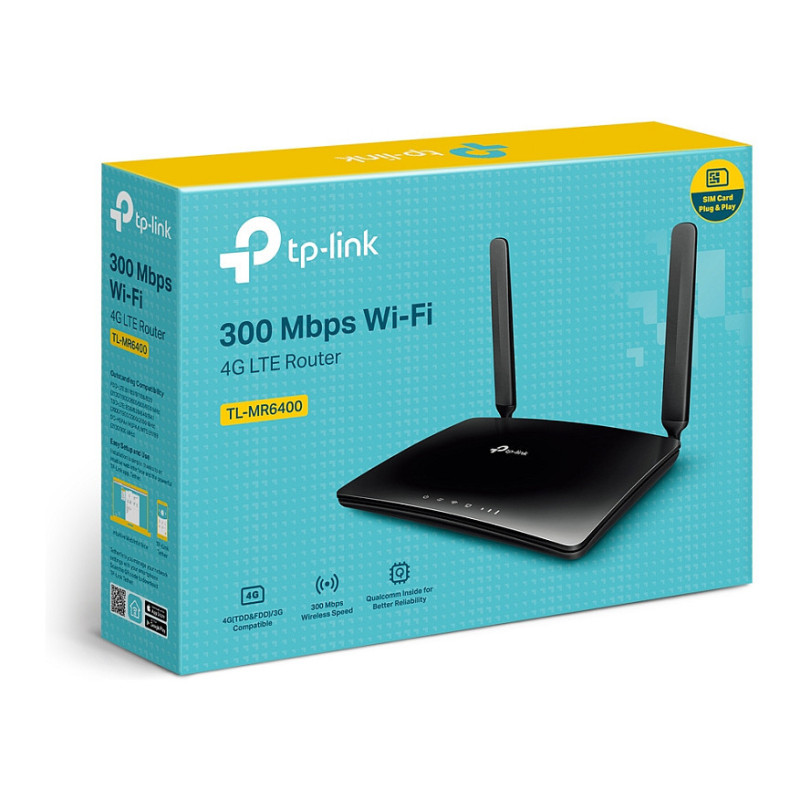

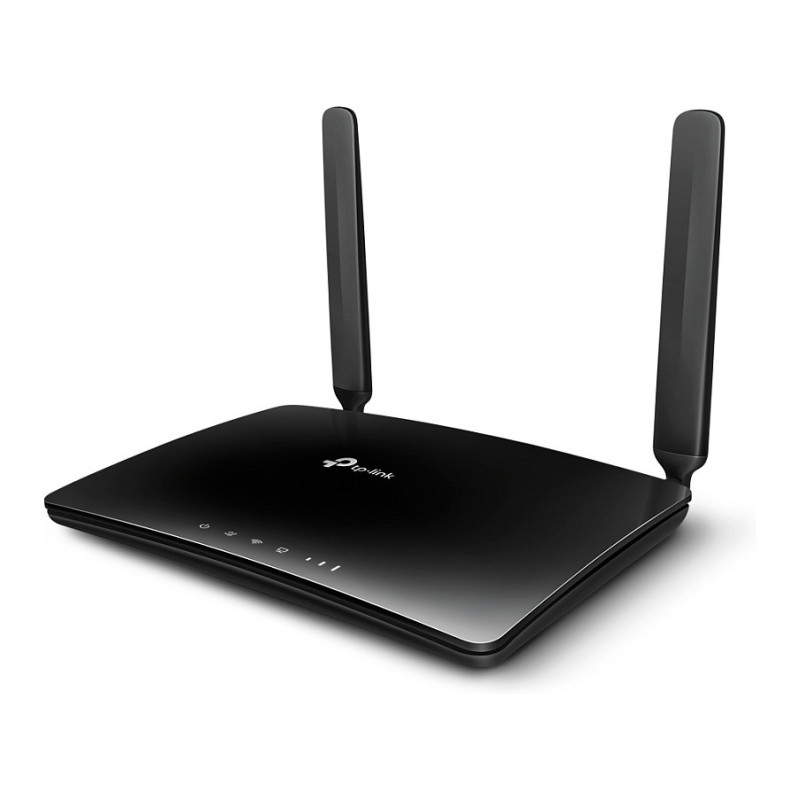

TP-Link TL-MR6400 wireless router

TP-Link TL-MR6400. WAN connection type: RJ-45. Wi-Fi band: Single-band (2.4 GHz), Top Wi-Fi standard: Wi-Fi 4 (802.11n), WLAN data transfer rate (max): 300 Mbit/s. Ethernet LAN interface type: Fast Ethernet, Ethernet LAN data rates: 10,100 Mbit/s, Cabling technology: 10/100Base-T(X). Mobile network generation: 4G, 3G standards: HSPA+, UMTS, 4G standard: LTE. Security algorithms: 64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK

No Configuration Needed Simply Plug and Play!
With an integrated 4G LTE modem and a built-in SIM card slot, all you need to do is insert a SIM card and turn on the TL-MR6400. Enjoying fast, stable Wi-Fi on a 4G LTE network has never been easier.

Share Your 4G LTE Network
Take full of advantage of your cutting-edge 4G LTE network, which can achieve download speeds of up to 150 Mbps. The TL-MR6400 shares your 4G LTE network with multiple Wi-Fi devices, so you can enjoy uninterrupted HD movies, rapid file downloads, and smooth video chats. It is also fully compatible with FDD-LTE and TDD-LTE, which are supported by most operators around the world.

Wi-Fi Where You Need It
The TL-MR6400 offers unmatched convenience and versatility. Whether you're at hom or working in a remote location, the TL-MR6400 is the perfect solution. Just plug it in to boost on-site productivity and stay connected in a diverse range of environments.
From the exhibition center to the RV, the TL-MR6400 always has you covered.

Internet Access for up to 32 Devices simultaneously
The TL-MR6400 can easily share a 3G/4G connection with up to 32 wireless devices, such as tablets, laptops and mobile phones at the same time. The LAN ports are also ready to provide internet for wired devices like desktop computers.

Easy Management
Set up the TL-MR6400 in minutes thanks to its intuitive web interface and the powerful Tether app. Manage network settings from any Android or iOS device. Control your home network anytime and anywhere.

WAN connection

Feature: Ethernet WAN
Feature: SIM card slot
WAN connection type: RJ-45

Wireless LAN features

Wi-Fi band: Single-band (2.4 GHz)
Top Wi-Fi standard: Wi-Fi 4 (802.11n)
WLAN data transfer rate (max): 300 Mbit/s
Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n)

Network

Feature: Ethernet LAN
Ethernet LAN interface type: Fast Ethernet
Ethernet LAN data rates: 10,100 Mbit/s
Cabling technology: 10/100Base-T(X)
Networking standards: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3
Feature: Port forwarding

Mobile network

Mobile network generation: 4G
Feature: 3G
Feature: 4G
3G standards: HSPA+, UMTS
4G standard: LTE
4G bands supported: 800,900,1800,1900,2100,2600 MHz
3G bands supported: 1900,2100 MHz

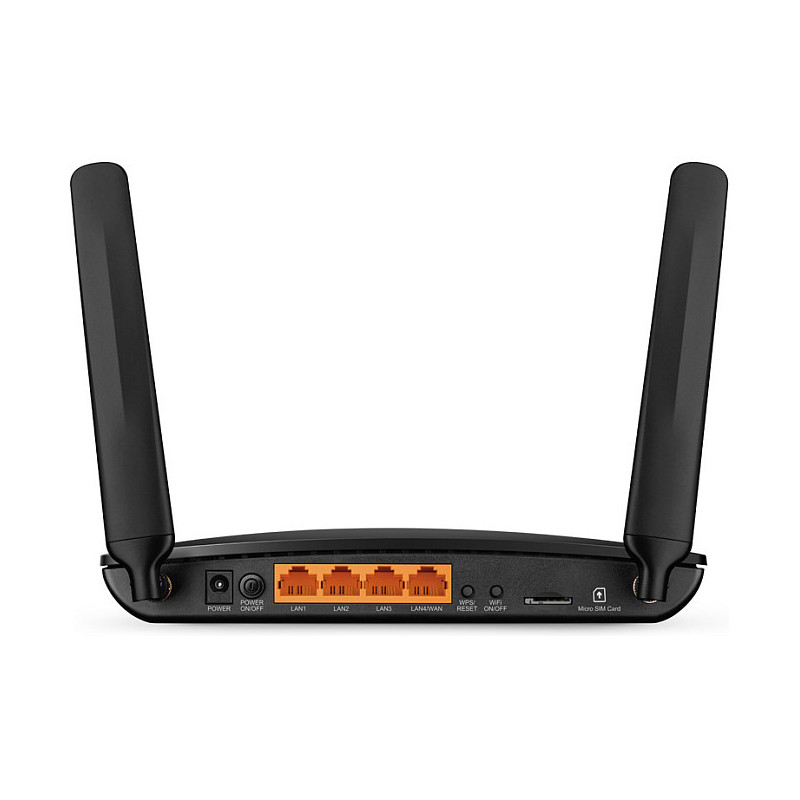

Ports & interfaces

Ethernet LAN (RJ-45) ports: 4
Feature: DC-in jack

Management features

Feature: Web-based management
Feature: Quality of Service (QoS) support
Feature: Reset button
Feature: WPS push button

Security

Security algorithms: 64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Feature: Firewall
Feature: Stateful Packet Inspection (SPI)
Feature: DoS attack prevention
Feature: Filtering
Feature: MAC address filtering
Feature: IP address filtering
Feature: DMZ support

Protocols

Feature: DHCP client
Feature: DHCP server
Feature: Universal Plug and Play (UPnP)
Supported network protocols: IPv4, IPv6

Design

Product colour: Black

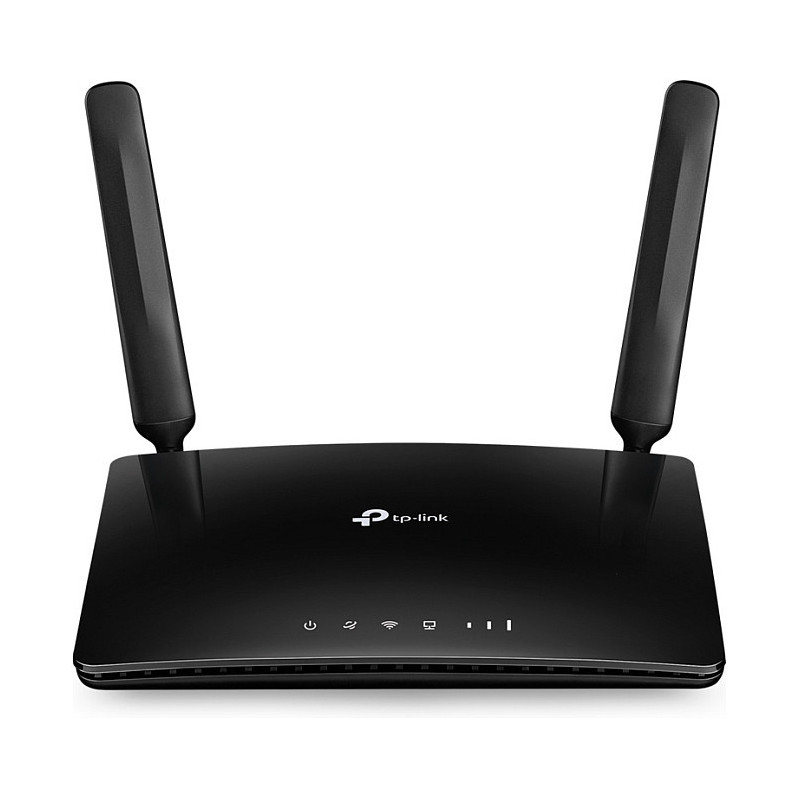

LED indicators: LAN, Power, WLAN
Feature: On/off switch
Product type: Tabletop router

Certificates

Certification: CE, RoHS

Packaging content

Cables included: LAN (RJ-45)
Feature: AC adapter included
Feature: Manual
Feature: Quick installation guide
Feature: Quick start guide

Antenna

Antenna design: External
Antennas quantity: 2
Feature: Detachable antenna(s)

Power

Power source type: DC
Output voltage: 9 V
Output current: 0.85 A

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%

System requirements

Windows operating systems supported: Yes
Linux operating systems supported: Yes
Mac operating systems supported: Yes
Feature: Mac compatibility

Weight & dimensions

Width: 202 mm
Depth: 141 mm
Height: 33.6 mm

Packaging data

Package width: 307 mm
Package depth: 223 mm
Package height: 70 mm
Package weight: 600 g

Logistics data

Harmonized System (HS) code: 85176990
