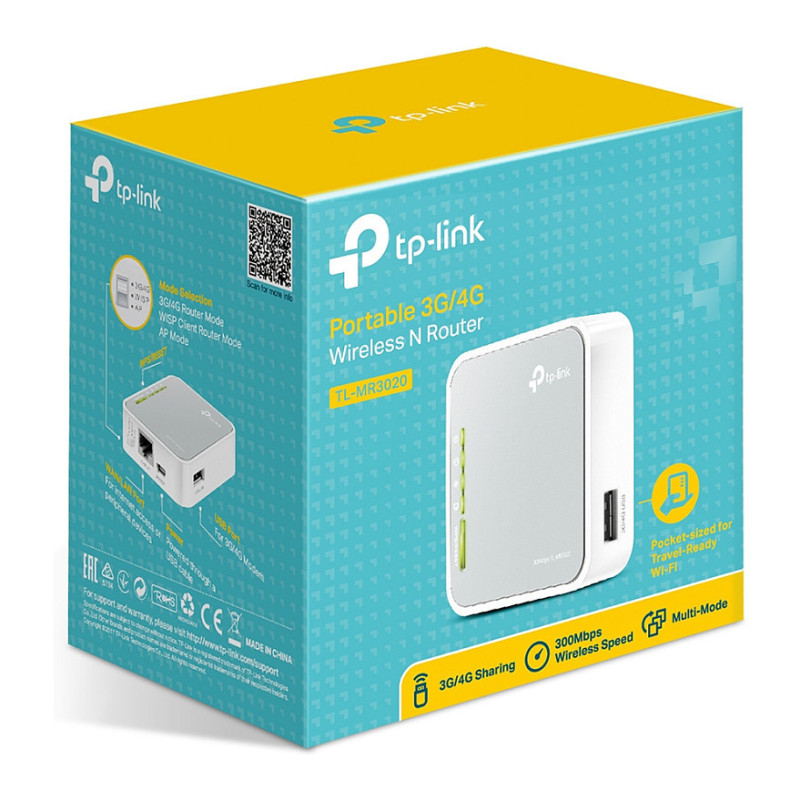

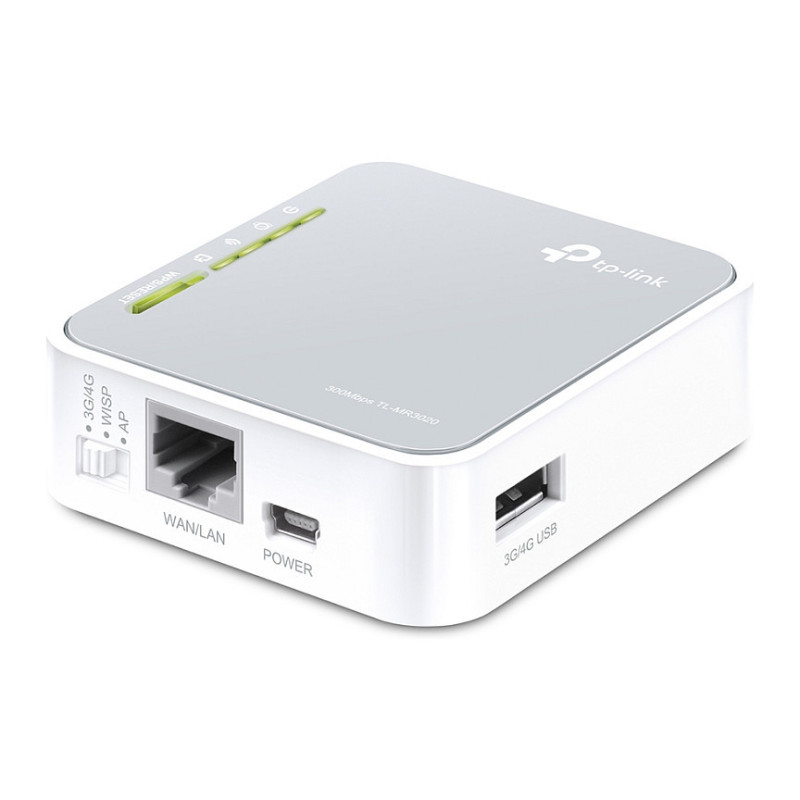

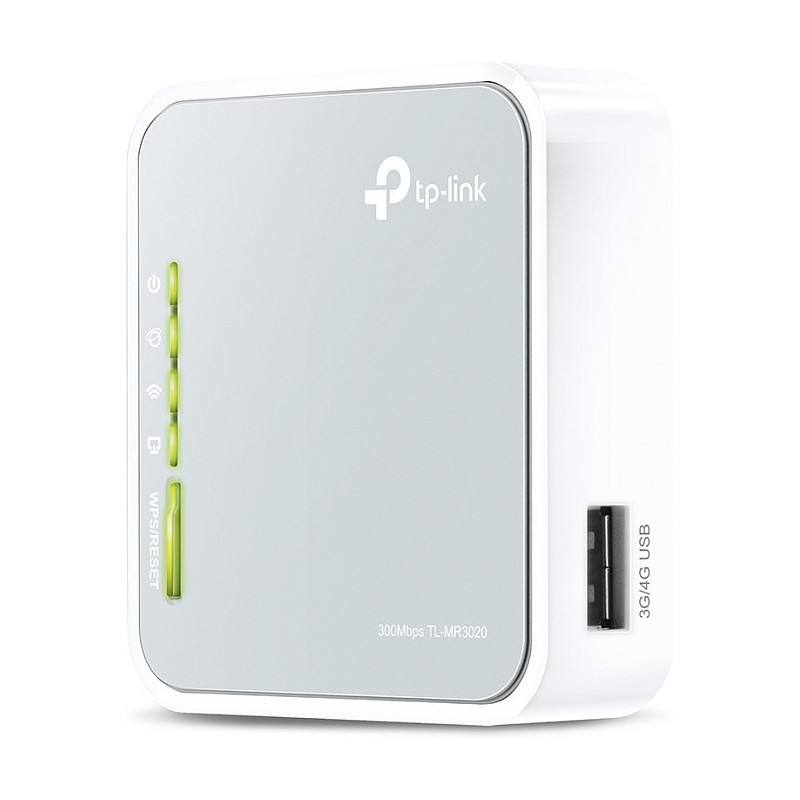

TP-Link TL-MR3020 wireless router

TP-Link TL-MR3020. WAN connection type: RJ-45. Wi-Fi band: Single-band (2.4 GHz), Top Wi-Fi standard: Wi-Fi 4 (802.11n), WLAN data transfer rate (max): 300 Mbit/s. Ethernet LAN interface type: Fast Ethernet, Ethernet LAN data rates: 10,100 Mbit/s, Networking standards: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n. Mobile network generation: 4G, 3G standards: EVDO, HSPA, HSPA+, UMTS, 4G standard: LTE. Security algorithms: 64-bit WEP, 128-bit WEP, WPA-PSK, WPA2-PSK, Firewall security: DoS, SPI

With a travel-sized design, a mini USB port, Wireless N speeds up to 150 Mbps and a high compatibility with 3G modems, TP-LINK's new Portable 3G/3.75G Wireless N Router,
TL-MR3020 is the ideal device to provide wireless cloud for iPads, iTouches, Android Phones, Kindles and the vast majority of other portable Wi-Fi enabled devices.

Travel-sized Design
With the travel-sized and compact design, TL-MR3020 is small enough to take on the road and make sure that you can share a 3G internet connection wherever wireless 3G coverage is available.

Travel Router with 3G/4G Function
TL-MR3020 is the ideal travel partner for people on the go. 3G Router Mode enables you to plug in a 3G USB modem and share it wirelessly. Its Travel Router Mode (AP Mode) allows you to conveniently setup an internet connection utilizing a hotel WAN cable. Meanwhile, you can also use the switch on the side of the router to choose between Travel Router Mode, 3G Router Mode and WISP Client Router Mode based on your different requirements.

Power Supply
TL-MR3020 provides you a mini USB port to be connected to your laptop or power adapter for power supply.

WAN connection

Feature: Ethernet WAN
Feature: 3G/4G USB modem compatibility
WAN connection type: RJ-45

Wireless LAN features

Wi-Fi band: Single-band (2.4 GHz)
Top Wi-Fi standard: Wi-Fi 4 (802.11n)
WLAN data transfer rate (max): 300 Mbit/s
Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n)

Network

Feature: Ethernet LAN
Ethernet LAN interface type: Fast Ethernet
Ethernet LAN data rates: 10,100 Mbit/s
Networking standards: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Feature: Port forwarding
Feature: Port triggering
Feature: Dynamic DNS (DDNS)
Receiver sensitivity: 270M: -70dBm@10% PER130M: -73dBm@10% PER108M: -74dBm@10% PER54M: -75dBm@10% PER11M: -86dBm@8% PER6M: -92dBm@10% PER1M: -95dBm@8% PER

Mobile network

Mobile network generation: 4G
Feature: 3G
3G standards: EVDO, HSPA, HSPA+, UMTS
4G standard: LTE

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1
Feature: USB port
USB 2.0 ports quantity: 1

Management features

Feature: Web-based management
Feature: Wi-Fi Multimedia (WMM)/(WME)
Feature: Quality of Service (QoS) support
Feature: Reset button
Feature: WPS push button

Security

Security algorithms: 64-bit WEP, 128-bit WEP, WPA-PSK, WPA2-PSK
Feature: Firewall
Firewall security: DoS, SPI
Feature: Guest access
Feature: DoS attack prevention
Feature: Parental control
Feature: Filtering
Feature: MAC address filtering
Feature: DMZ support

Protocols

Feature: DHCP client
Feature: DHCP server
Feature: Universal Plug and Play (UPnP)

Design

Product colour: Silver, White
Product type: Tabletop router

Certificates

Compliance certificates: RoHS, Federal Communications Commission (FCC), CE

Packaging content

Cables included: LAN (RJ-45), USB
Feature: Quick installation guide

Sustainability

Feature: Sustainability compliance

Antenna

Antenna design: Internal
Transmit power: 20 dBmW

Power

Power source type: USB
Output voltage: 5 V
Output current: 1 A

Operational conditions

Operating temperature (T-T): -10 - 60 °C
Storage temperature (T-T): -40 - 80 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%

System requirements

Linux operating systems supported: Yes
Mac operating systems supported: Yes

Weight & dimensions

Width: 74 mm
Depth: 67 mm
Height: 22 mm

Packaging data

Package width: 110 mm
Package depth: 109 mm
Package height: 81.5 mm
Package weight: 210 g

Logistics data

Harmonized System (HS) code: 85176990
