TP-Link TL-MR150 wireless router

TP-Link TL-MR150. WAN connection type: RJ-45. Wi-Fi band: Single-band (2.4 GHz), Top Wi-Fi standard: Wi-Fi 4 (802.11n), WLAN data transfer rate (max): 300 Mbit/s. Ethernet LAN interface type: Fast Ethernet, Ethernet LAN data rates: 10,100 Mbit/s, Cabling technology: 10/100Base-T(X). Mobile network generation: 4G, 3G standards: DC-HSPA+, HSPA, HSPA+, UMTS, 4G standard: LTE-TDD LTE-FDD. Security algorithms: 64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Superfast 4G LTE Speed for Reliable Wi-Fi
The TL-MR150 uses 4G LTE technology to achieve speeds of up to 150Mbps download and 50Mbps upload. It also shares a Wi-Fi network with maximum speed of 300Mbps on 2.4GHz for gaming, streaming, and more.
Design for Maximum Network Coverage
Advanced LTE antennas make efficient and stable connections to every device. Power Amplifier and Low Noise Amplifier boost sending and receiving capabilities, creating a wide-coverage Wi-Fi network for your home.
Plug and Play with a Micro SIM Card
Simply insert your 3G/4G Micro SIM card into the built-in slot, turn on the TL-MR150 and start surfing!
Available WAN Connection Backup
With a fully functional WAN/LAN port, TL-MR150 can work as a router which is compatible with cable, fiber, and DSL modems.

WAN connection

Ethernet WAN: Yes
DSL WAN: Yes
SIM card slot: Yes
3G/4G USB modem compatibility: Yes
WAN connection type: RJ-45

Wireless LAN features

Wi-Fi band: Single-band (2.4 GHz)
Top Wi-Fi standard: Wi-Fi 4 (802.11n)
WLAN data transfer rate (max): 300 Mbit/s
Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n)

Network

Ethernet LAN: Yes
Ethernet LAN interface type: Fast Ethernet
Ethernet LAN data rates: 10,100 Mbit/s
Cabling technology: 10/100Base-T(X)
Networking standards: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Dynamic DNS (DDNS): Yes
VPN Passthrough: Yes
VPN support: PPTP, L2TP, IPSec
Equivalent Isotropically Radiated Power (EIRP) (@IEEE 802.11n): 20 dBmW
Receiver sensitivity: 11g 54M: -74dBm11n HT20: -71dBm11n HT40: -67dBm

Mobile network

Mobile network generation: 4G
3G: Yes
4G: Yes
3G standards: DC-HSPA+, HSPA, HSPA+, UMTS
4G standard: LTE-TDD LTE-FDD
4G bands supported: 800,900,1800,1900,2100,2300,2500,2600 MHz
3G bands supported: 900,2100 MHz

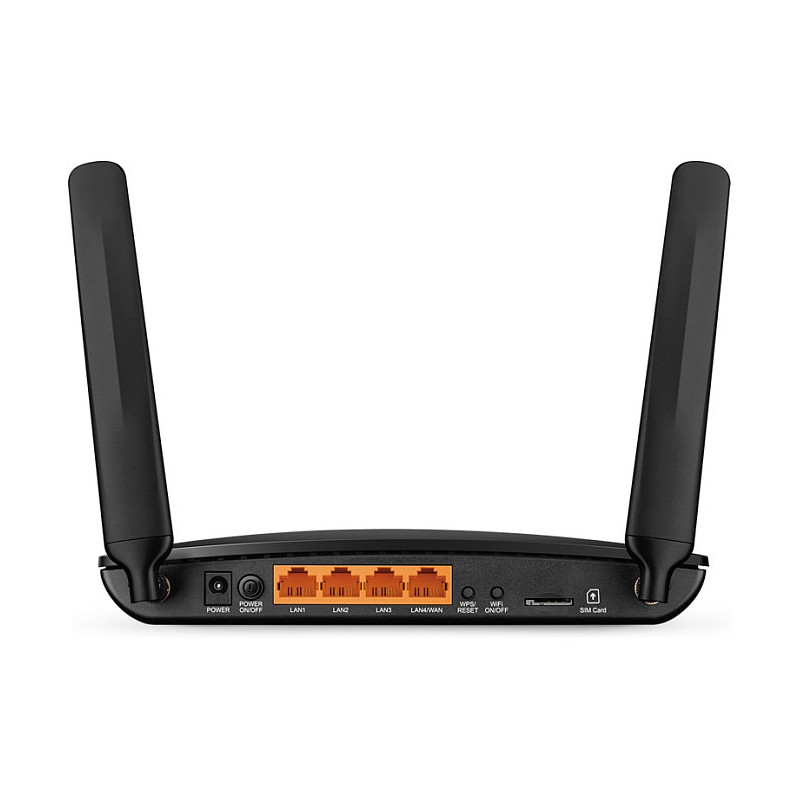

Ports interfaces

Ethernet LAN (RJ-45) ports: 4
USB port: No
Memory card slot(s): No
DC-in jack: Yes

Management features

Quality of Service (QoS) support: Yes
Reset button: Yes
WPS push button: Yes

Security

Security algorithms: 64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Firewall: Yes
Guest access: Yes
Access Control List (ACL): Yes
Stateful Packet Inspection (SPI): Yes
DoS attack prevention: Yes
MAC address filtering: Yes
IP address filtering: Yes
DMZ support: Yes

Protocols

DHCP client: Yes
DHCP server: Yes
Universal Plug and Play (UPnP): Yes
Supported network protocols: IPv4, IPv6

Design

Product colour: Black
On/off switch: Yes
Product type: Tabletop router

Certificates

Certification: CE, RoHS

Packaging content

Cables included: LAN (RJ-45)
AC adapter included: Yes
Quick installation guide: Yes

Antenna

Antenna design: External
Antenna connector type: N-type
Antennas quantity: 2

Power

Power source type: DC
Output voltage: 9 V
Output current: 0.85 A

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%

System requirements

Browser supported: Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0
Windows operating systems supported: Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows Vista, Windows XP
Linux operating systems supported: Yes
Mac operating systems supported: Yes

Weight dimensions

Width: 202 mm
Depth: 141 mm
Height: 33.6 mm

Packaging data

Package type: Box
