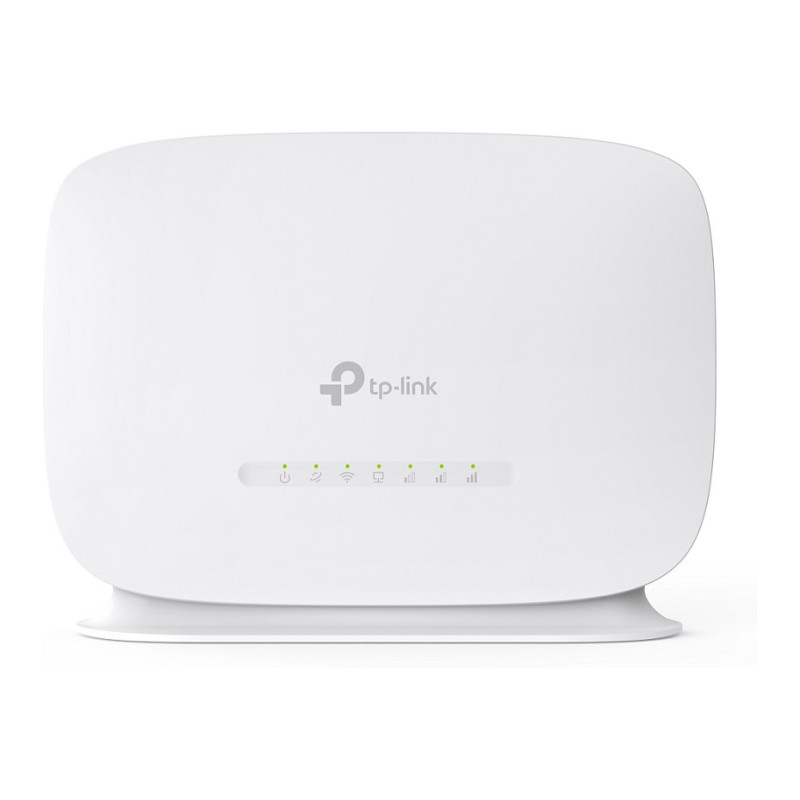

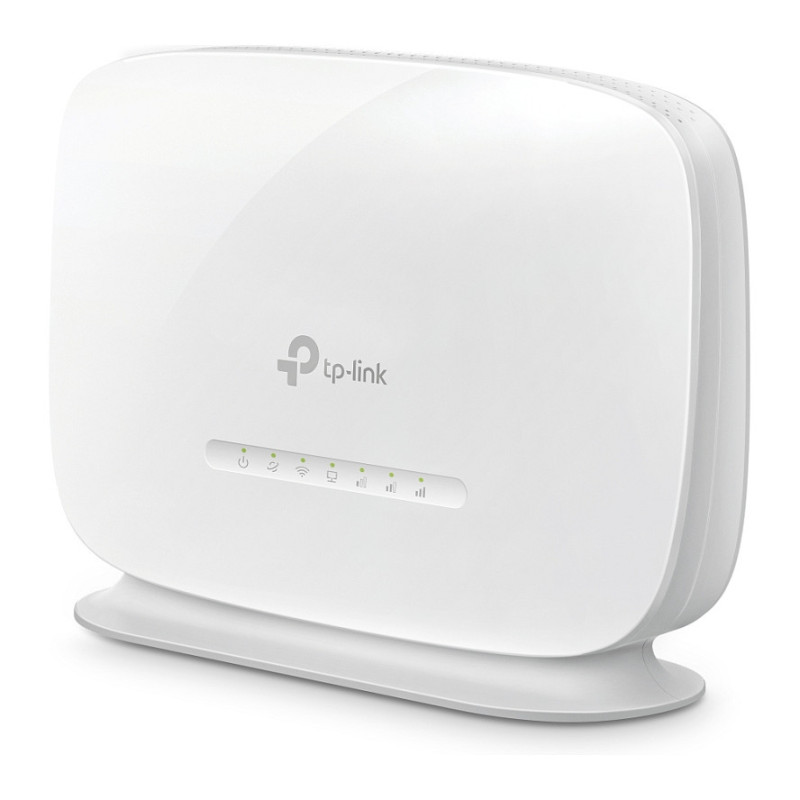

TP-Link TL-MR105 wireless router

TP-Link 300 Mbps Wireless N 4G LTE Router. WAN connection type: RJ-45. Wi-Fi band: Single-band (2.4 GHz), Top Wi-Fi standard: Wi-Fi 4 (802.11n), WLAN data transfer rate (max): 300 Mbit/s. Ethernet LAN interface type: Fast Ethernet, Ethernet LAN data rates: 10,100 Mbit/s. Mobile network generation: 4G, 3G standards: DC-HSPA+, HSDPA, HSPA, UMTS, 4G standard: LTE-TDD & LTE-FDD. Security algorithms: 64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, Firewall security: IPv4 SPI Firewall

Enjoy 4G LTE Sharing
Wherever You Want
300 Mbps Wireless N 4G LTE Router

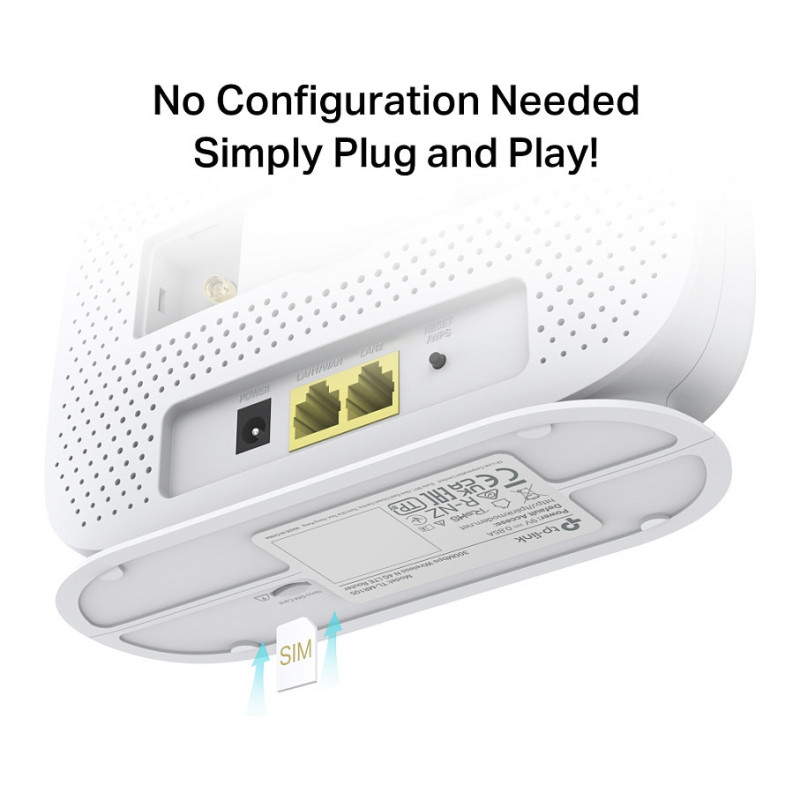

No Configuration Needed Simply Plug and Play!
With an integrated 4G LTE modem and a built-in SIM card slot, all you need to do is inserting a nano SIM card and turning on the router. It has never been easier than enjoy a fast, stable Wi-Fi on 4G LTE network.

Share Your 4G LTE Network
Take full advantage of your cutting-edge 4G LTE network to download speed up to 150 Mbps. Share your 4G LTE network with multiple Wi-Fi devices and enjoy uninterrupted HD movies, rapid file downloads, and smooth video chats. Fully compatible with FDD-LTE and TDD-LTE to work with most service providers worldwide.

Advanced Software Functions Help You Enhance Your Network Safety and Effectiveness

Robust Parental Controls
If you want to block harmful websites, set surfing time limits, check which sites your kids are using or just pause the internet, you can do it all.

Guest Network
It provides separate Wi-Fi access for guests while securing the whole network.

Wi-Fi Where You Need It
Enjoy unconstrained convenience and versatility. TL-MR105 has been tested in the field for years to ensure universal compatibility with 2 internal LTE antennas to deliver a smooth connection. Simply plug in a nano SIM card and power on this elegant piece of device to utilize fast and stable Wi-Fi, whether you're at home or working remotely.

Reliable Access for Up to 32 Devices Simultaneously
Easily share a 3G/4G connection with up to 32 wireless devices, such as phones, tablets, and laptops, at the same time. 2 LAN ports stand ready to provide internet for wired devices like desktop computers.

WAN connection

Feature: Ethernet WAN
Feature: SIM card slot
WAN connection type: RJ-45

Wireless LAN features

Wi-Fi band: Single-band (2.4 GHz)
Top Wi-Fi standard: Wi-Fi 4 (802.11n)
WLAN data transfer rate (max): 300 Mbit/s
Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n)
WLAN data transfer rate (first band): 300 Mbit/s

Network

Feature: Ethernet LAN
Ethernet LAN interface type: Fast Ethernet
Ethernet LAN data rates: 10,100 Mbit/s
Feature: Port forwarding
Feature: Port triggering
Feature: Dynamic DNS (DDNS)
Number of guest networks (2.4 GHz): 1

Mobile network

Mobile network generation: 4G
3G standards: DC-HSPA+, HSDPA, HSPA, UMTS
4G standard: LTE-TDD & LTE-FDD
4G bands supported: 800,850,900,1800,2100,2300,2500,2600 MHz
SIM card type: NanoSIM

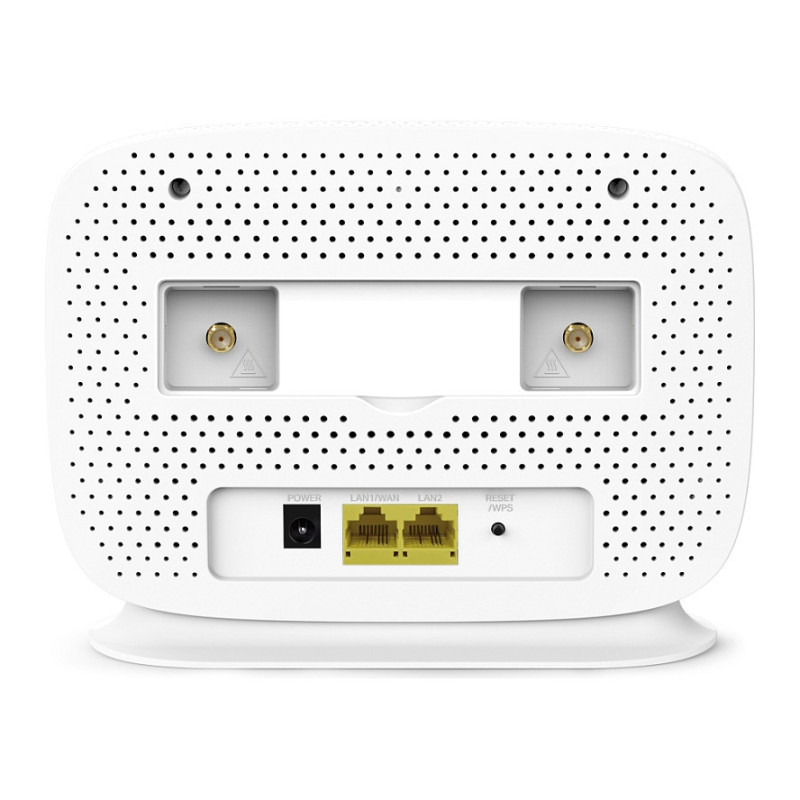

Ports & interfaces

Ethernet LAN (RJ-45) ports: 2
Feature: DC-in jack

Management features

Feature: Reset button
Feature: WPS push button

Security

Security algorithms: 64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Feature: Firewall
Firewall security: IPv4 SPI Firewall
Feature: Guest access
Feature: DMZ support

Protocols

Feature: DHCP client
Feature: DHCP server
Feature: Universal Plug and Play (UPnP)

Design

Product colour: White
Product type: Tabletop router

Certificates

Compliance certificates: CE, RoHS

Packaging content

Cables included: LAN (RJ-45)
Feature: Quick installation guide

Sustainability

Feature: Sustainability compliance

Antenna

Antenna design: Internal

Power

Power source type: DC

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%

Weight & dimensions

Width: 174 mm
Depth: 130 mm
Height: 60 mm

Packaging data

Package type: Box
