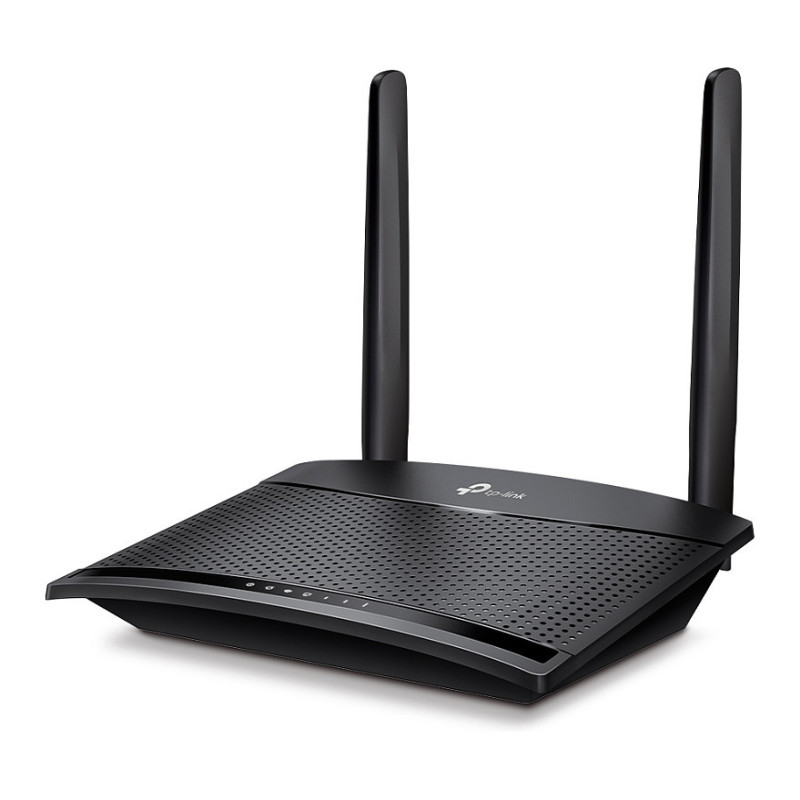

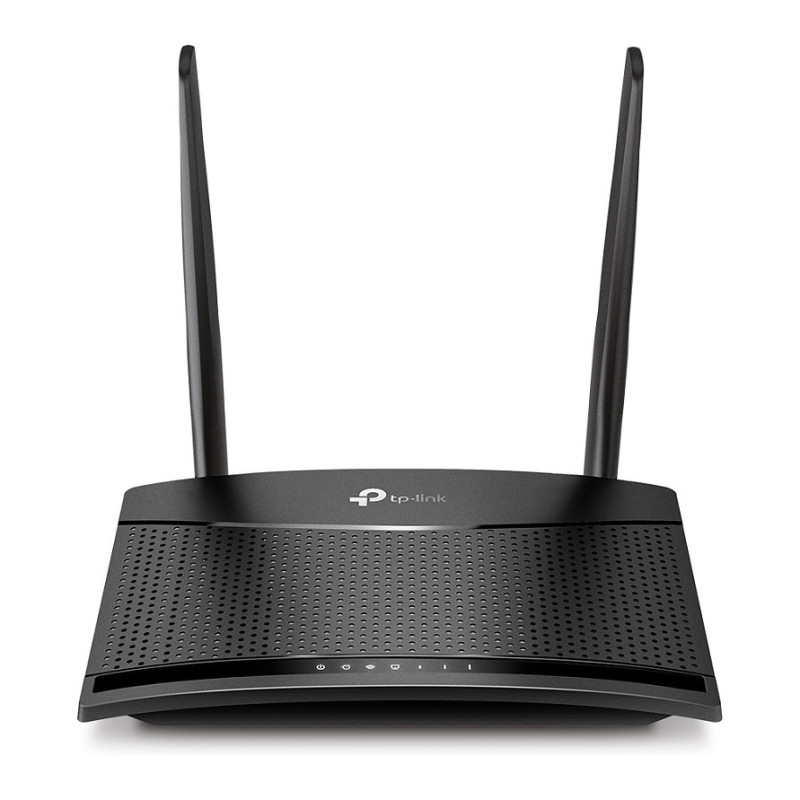

TP-Link TL-MR100 wireless router

TP-Link TL-MR100. WAN connection type: RJ-45. Wi-Fi band: Single-band (2.4 GHz), Top Wi-Fi standard: Wi-Fi 4 (802.11n), WLAN data transfer rate (max): 300 Mbit/s. Ethernet LAN interface type: Fast Ethernet, Ethernet LAN data rates: 10,100 Mbit/s, Cabling technology: 10/100Base-T(X). Mobile network generation: 4G, 3G standards: HSPA, UMTS, 4G standard: LTE-TDD & LTE-FDD. Security algorithms: 64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK

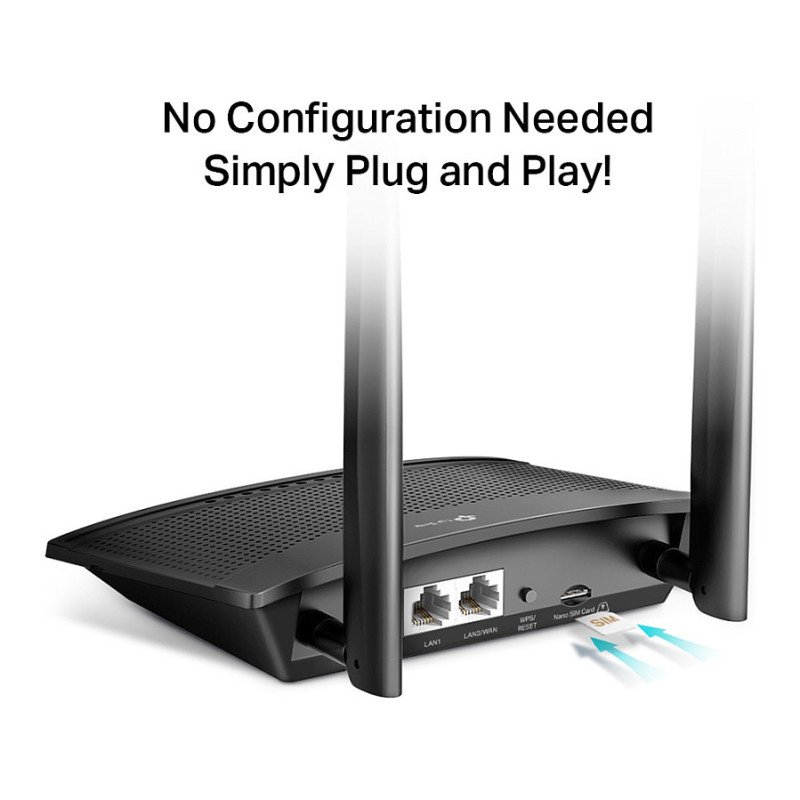

No Configuration Needed Simply Plug and Play!
With an integrated 4G LTE modem and a built-in SIM card slot, all you need to do is inserting a micro SIM card and turning on the router. It has never been easier than enjoy a fast, stable Wi-Fi on 4G LTE network.

Share Your 4G LTE Network
Take full advantage of your cutting-edge 4G LTE network to download speed up to 150 Mbps. Share your 4G LTE network with multiple Wi-Fi devices and enjoy uninterrupted HD movies, rapid file downloads, and smooth video chats. Fully compatible with FDD-LTE and TDD-LTE to work with most service providers worldwide.

Robust Parental Controls
If you want to block harmful websites, set surfing time limits, check which sites your kids are using or just pause the internet, you can do it all.

Wi-Fi Where You Need It
Enjoy unconstrained convenience and versatility. MR100 has been tested in the field for years to ensure universal compatibility with 2 advanced LTE antennas to deliver a smooth connection. Simply plug in a micro SIM card and power on this elegant piece of device to utilize fast and stable Wi-Fi, whether you're at home or working remotely.

Reliable Access for Up to 32 Devices Simultaneously
Easily share a 3G/4G connection with up to 32 wireless devices, such as phones, tablets, and laptops, at the same time. 1 LAN ports stand ready to provide internet for wired devices like desktop computers.

WAN connection

Feature: Ethernet WAN
Feature: SIM card slot
WAN connection type: RJ-45

Wireless LAN features

Wi-Fi band: Single-band (2.4 GHz)
Top Wi-Fi standard: Wi-Fi 4 (802.11n)
WLAN data transfer rate (max): 300 Mbit/s
Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n)

Network

Feature: Ethernet LAN
Ethernet LAN interface type: Fast Ethernet
Ethernet LAN data rates: 10,100 Mbit/s
Cabling technology: 10/100Base-T(X)
Networking standards: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Feature: Port forwarding
Feature: Port triggering
Feature: Dynamic DNS (DDNS)
Feature: Wireless radio
Equivalent Isotropically Radiated Power (EIRP) (@IEEE 802.11n): 20 dBmW
Receiver sensitivity: 11g 54M: -74dBm11n HT20: -71dBm11n HT40: -67dBm

Mobile network

Mobile network generation: 4G
Feature: 3G
Feature: 4G
3G standards: HSPA, UMTS
4G standard: LTE-TDD & LTE-FDD
4G bands supported: 800,900,1800,1900,2100,2300,2500,2600 MHz
3G bands supported: 850,900,2100 MHz
SIM card type: MicroSIM

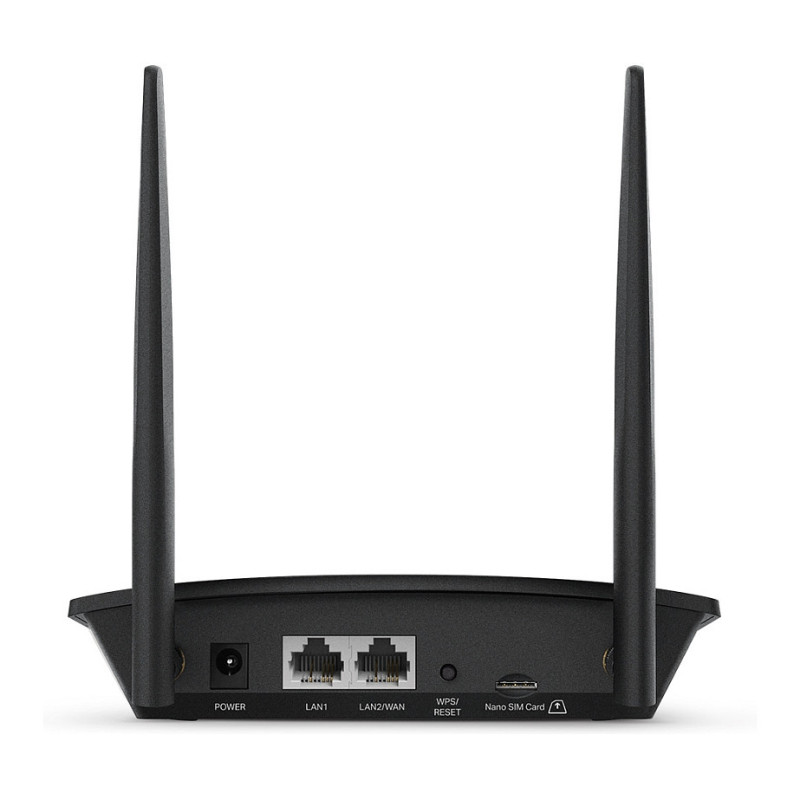

Ports & interfaces

Ethernet LAN (RJ-45) ports: 2
Feature: DC-in jack

Management features

Feature: Wi-Fi Multimedia (WMM)/(WME)
Feature: Quality of Service (QoS) support
Feature: Wireless statistics
Feature: Reset button
Feature: WPS push button

Security

Security algorithms: 64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Feature: Firewall
Feature: Guest access
Feature: Stateful Packet Inspection (SPI)
Feature: Schedule access
Feature: MAC address filtering
Feature: IP address filtering
Feature: DMZ support

Protocols

Feature: DHCP client
Feature: DHCP server
Feature: Universal Plug and Play (UPnP)
Supported network protocols: IPv4, IPv6

Design

Product colour: Black
Feature: On/off switch
Product type: Tabletop router

Certificates

Certification: CE, RoHS

Packaging content

Cables included: LAN (RJ-45)
Feature: AC adapter included
Feature: Quick installation guide

Antenna

Antenna design: External
Antenna connector type: N-type
Antennas quantity: 2

Features

Feature: Firmware upgradeable

Power

Power source type: DC
Output voltage: 9 V
Output current: 0.85 A

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%

System requirements

Browser supported: Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0
Windows operating systems supported: Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows Vista, Windows XP
Linux operating systems supported: Yes
Mac operating systems supported: Yes

Weight & dimensions

Width: 154 mm
Depth: 114 mm
Height: 36 mm
Weight: 150 g

Packaging data

Package width: 293 mm
Package depth: 161 mm
Package height: 66 mm
Package weight: 480 g

Logistics data

Harmonized System (HS) code: 85176990
