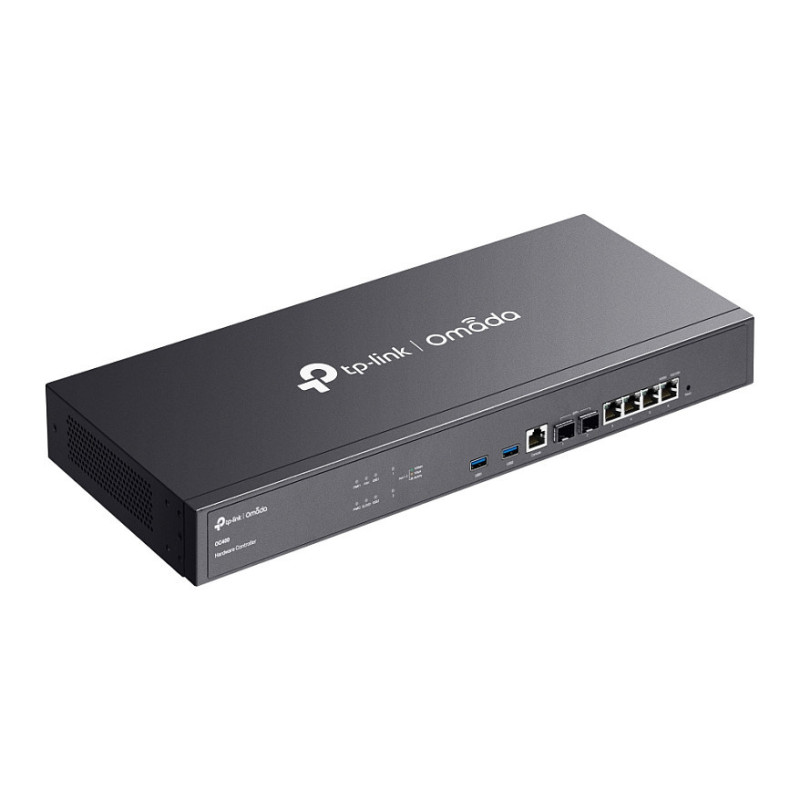

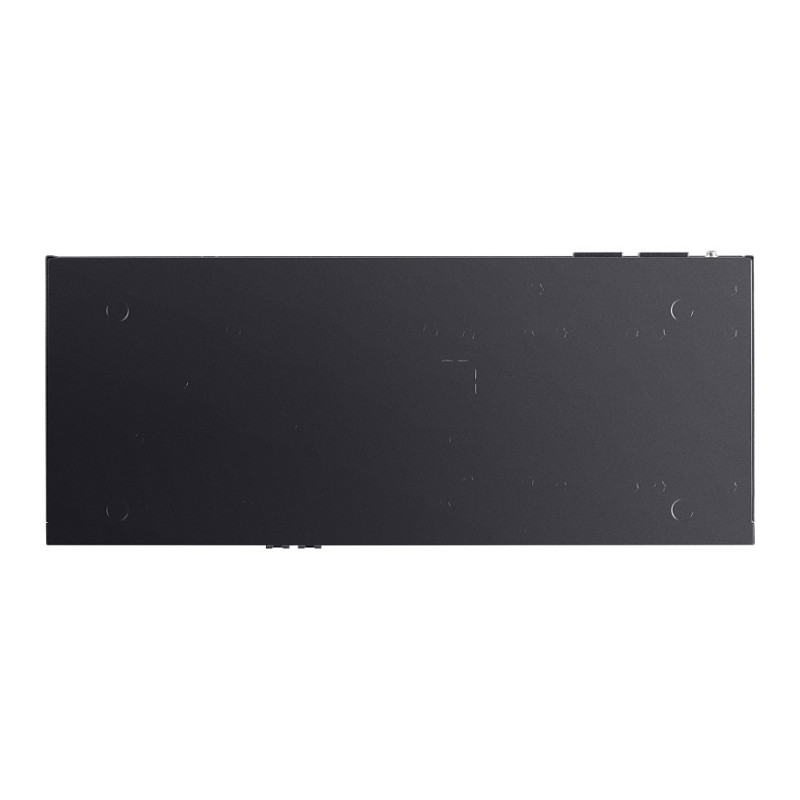

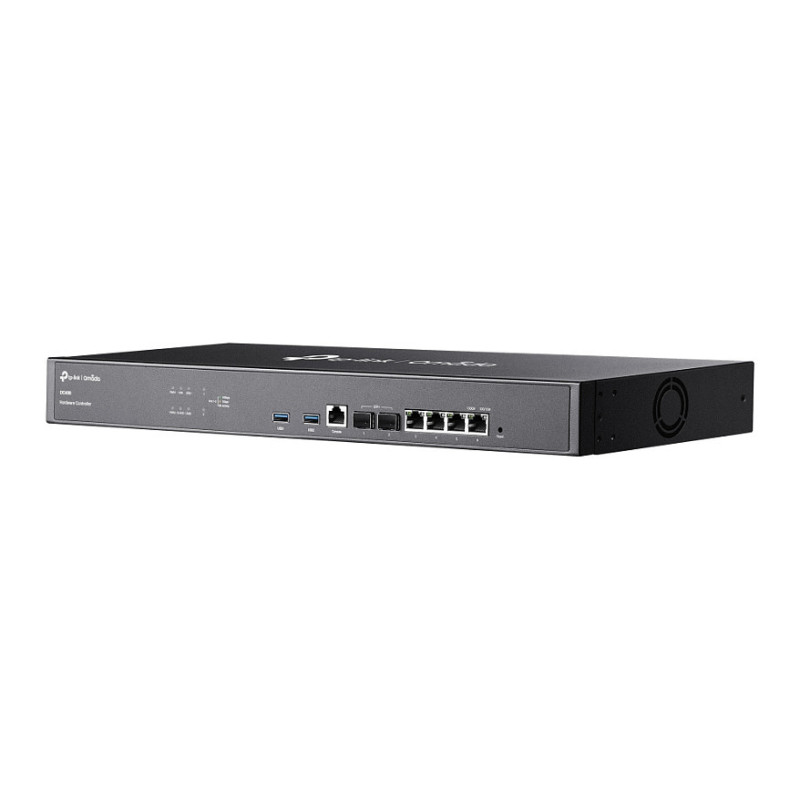

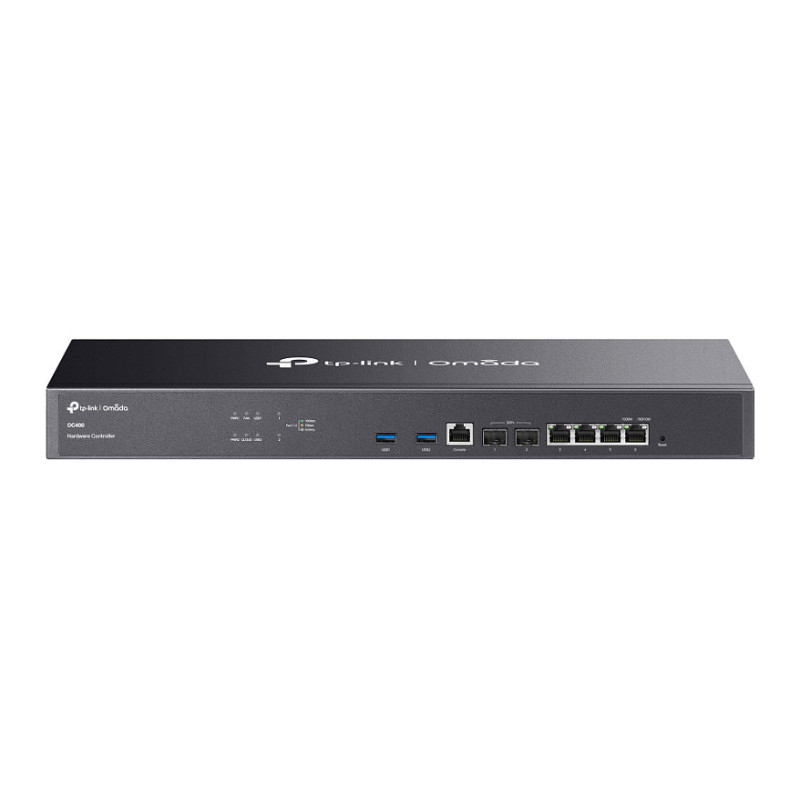

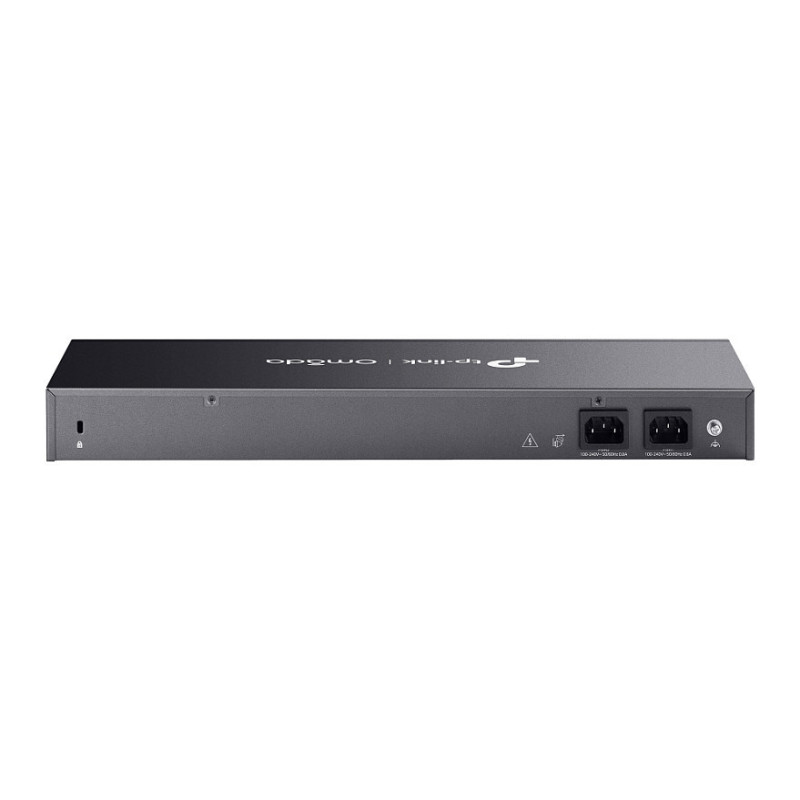

TP-Link Omada OC400 gateway / controller

TP-Link Omada Hardware Controller. Product colour: Grey. Internal memory: 8 MB, Internal memory type: DDR4, SSD capacity: 32 GB. Ethernet LAN data rates: 1000,10000 Mbit/s. Management platform: Omada App, Performance management: • Up to 1,000 Omada access points, 200 Omada switches, and 100 Omada routers* • Up to 30,000 clients. Input voltage: 100 - 240 V, Input frequency: 50/60 Hz

Centralized Management
The Omada hardware controller (OC400) for the Omada Software Defined Networking (SDN) platform, supports centralized management for up to 1,000 Omada access points, 200 Omada switches, and 100 Omada routers.* Enjoy cloud service with no license fees with the use of OC400.

Design

Product colour: Grey
LED indicators: Yes

Performance

Feature: Built-in processor
Internal memory: 8 MB
Internal memory type: DDR4
SSD capacity: 32 GB
Flash memory: 4 MB

Network

Ethernet LAN data rates: 1000,10000 Mbit/s

Ports & interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Number of console ports: 1
Ethernet LAN (RJ-45) ports: 4
Feature: DC-in jack
SFP+ ports quantity: 2

Management features

Management platform: Omada App
Performance management: • Up to 1,000 Omada access points, 200 Omada switches, and 100 Omada routers* • Up to 30,000 clients
Feature: Reset button

Power

Input voltage: 100 - 240 V
Input frequency: 50/60 Hz

Weight & dimensions

Width: 440 mm
Depth: 180 mm
Height: 44 mm

Packaging content

Cables included: LAN (RJ-45), Power
Feature: Quick installation guide
Packaging content: • Omada Hardware Controller OC400• Quick Installation Guide• Ethernet Cable• Power Cord• Rackmount Kit

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%

Sustainability

Feature: Sustainability compliance

Certificates

Compliance certificates: CE, Federal Communications Commission (FCC), RoHS
