TP-Link Omada AX3000 wireless router

TP-Link Omada AX3000. WAN connection type: RJ-45. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), WLAN data transfer rate (max): 2402 Mbit/s, Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax). Ethernet LAN interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Cabling technology: 10/100/1000Base-T(X). Security algorithms: WPA-Enterprise, WPA-Personal, WPA2-Enterprise, WPA2-Personal, WPA3-Enterprise, WPA3-Personal, NAT functionality: One-to-One NAT Multi-Net NAT Virtual Server Port Triggering1 NAT-DMZ FTP/H.323/SIP/IPSec/PPTP ALG.... Voice codecs: G.711a, G.711ulaw, G.722, G.726, G.729ab
Get the Higher DSL Speeds Cost-Effectively
The integrated DSL port supports VDSL2/ADSL2+/ADSL2/ADSL connections. Compatibility with the leading ISPs provides ideal IP-based connections for any small business.
Versatile Connectivity
DR3650v is compatible with Super VDSL (VDSL2 Profile 35b), Ethernet access, and 4G/3G USB modems. Its Gigabit LAN/WAN port accepts connections from cable or fiber modems, and the USB 3.0 port supports 4G/3G dongles for a solid main or backup internet connection.
Software Defined Networking (SDN) with Cloud Access
Centralized cloud management for Omada gateways, switches, and access points across multiple sites, with the Omada cloud-based controller offering the Essentials version of cloud services for free, reducing maintaince costs.
High-Security and High-Performance VPN
IPSec/PPTP/L2TP/GRE/WireGuard/ Open VPN/ SSL VPN easily builds secure VPN tunnels for secure Internet browsing, communication between different branches, or enabling remote work or study from home.

WAN connection

Ethernet WAN: Yes
DSL WAN: Yes
SIM card slot: No
3G/4G USB modem compatibility: Yes
WAN connection type: RJ-45

Wireless LAN features

Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)
WLAN data transfer rate (max): 2402 Mbit/s
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
WLAN data transfer rate (first band): 574 Mbit/s
WLAN data transfer rate (second band): 2402 Mbit/s

Network

Ethernet LAN: Yes
Ethernet LAN interface type: Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
Cabling technology: 10/100/1000Base-T(X)
Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Port triggering: Yes
Load balancing system: Yes
Dynamic DNS (DDNS): Yes
Policy-based routing: Yes
Static route: Yes
Built-in FTP server: Yes
VPN support: IPSec/PPTP/L2TP/OpenVPN/WireGuard/GRE/SSL

DSL features

ADSL: Yes
ADSL2: Yes
ADSL2+: Yes
VDSL2: Yes

Ports interfaces

Ethernet LAN (RJ-45) ports: 4
USB port: Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
RJ-11 ports quantity: 3
DC-in jack: Yes

Management features

Web-based management: Yes
Quality of Service (QoS) support: Yes
Reset button: Yes
MU-MIMO technology: Yes

Security

Security algorithms: WPA-Enterprise, WPA-Personal, WPA2-Enterprise, WPA2-Personal, WPA3-Enterprise, WPA3-Personal
Guest access: Yes
Access Control List (ACL): Yes
URL filtering: Yes
System event log: Yes
DMZ support: Yes
Network address translation (NAT): Yes
NAT functionality: One-to-One NATMulti-Net NATVirtual ServerPort Triggering1NAT-DMZFTP/H.323/SIP/IPSec/PPTP ALGUPnP

Protocols

DHCP client: Yes
DHCP server: Yes
Universal Plug and Play (UPnP): Yes
Voice codecs: G.711a, G.711ulaw, G.722, G.726, G.729ab

Design

Product colour: Black
Wall mountable: Yes
Indication light: Yes
LED indicators: DSL, LAN, USB, WLAN
Product type: Tabletop router

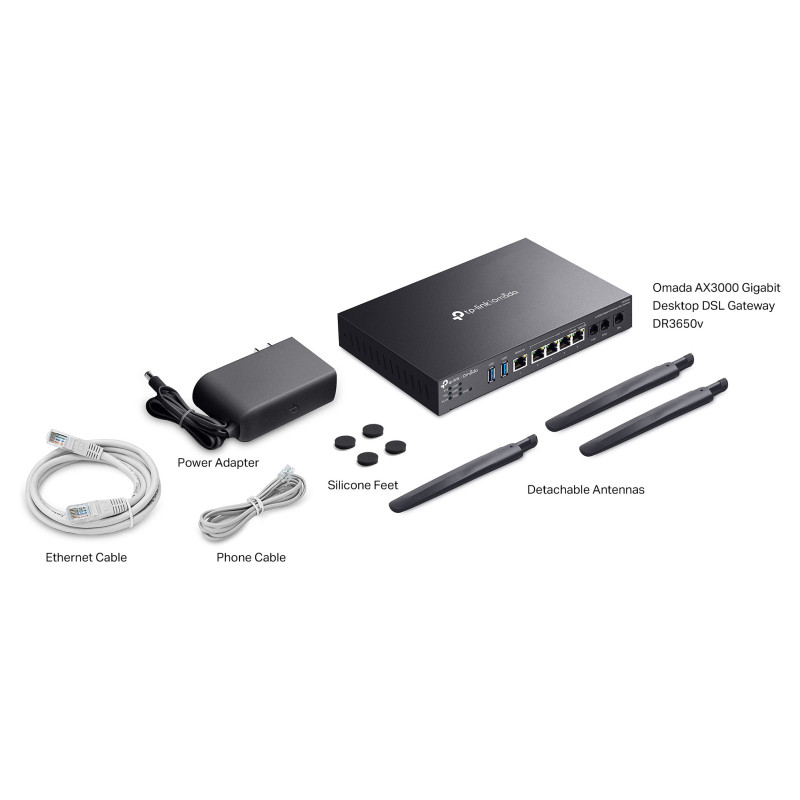

Packaging content

Cables included: LAN (RJ-45), Phone
AC adapter included: Yes
Antenna included: Yes

Antenna

Antenna design: External
Antenna gain level (max): 4.5 dBi
Antennas quantity: 3
Detachable antenna(s): Yes

Features

Internal memory: 512 MB
Internal memory type: DDR4
Mean time between failures (MTBF): 671034 h

Power

Power source type: AC
Output voltage: 12 V
Output current: 3.3 A

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%

Weight dimensions

Width: 226 mm
Depth: 131.2 mm
Height: 35 mm
