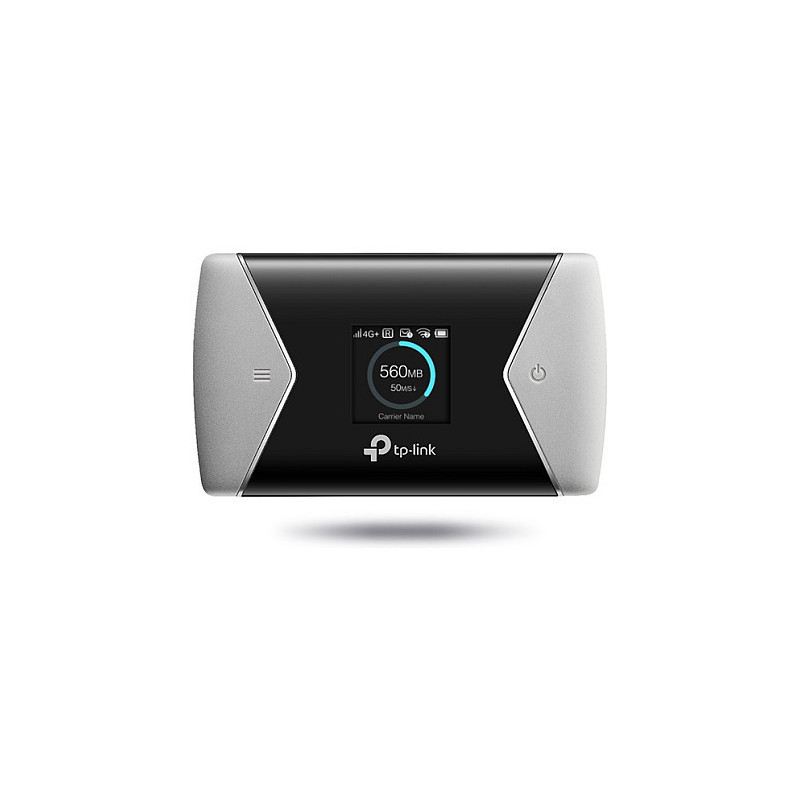

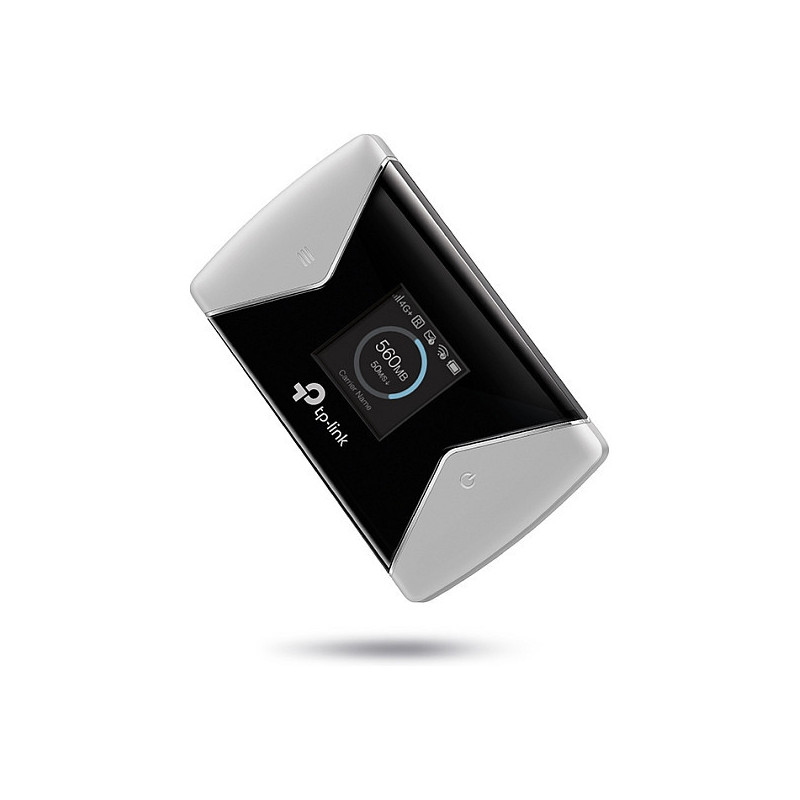

TP-Link M7650 cellular network device

TP-Link M7650. Device type: Cellular network router, Product colour: Black, Grey, Market positioning: Portable. Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), WLAN data transfer rates supported: 867 Mbit/s, Wi-Fi frequency: 5 GHz. Data network: 2G, 3G, 4G, LTE, 2G standards: Edge, GPRS, GSM, 3G standards: DC-HSPA+, HSPA, UMTS. Compatible memory cards: MicroSD (TransFlash). Security algorithms: WPA-PSK, WPA2-PSK
- LTE-Advanced cat11 supported with up to 600Mbps download and 50Mbps upload speeds
- Supports up to 32 devices simultaneously
- Selectable 300Mbps at 2.4GHz or 867Mbps at 5GHz dual band Wi-Fi
- All useful information at a glance with screen display
- 3000mAh battery for up to 15 hours of working
- Equipped with a micro SD card slot for up to 32GB of optional storage
- Easy management with the tpMiFi App
Fastest Mobile Connection up to 600Mbps
The M7650 supporting the 4G LTE network LTE-A Cat.11, which is used Carrier Aggregation. This advanced technology merges the fragmented LTE band into a "virtual" wider band to increase the data rate, with the 256-QAM, to provide fast 4G speeds of up to 600Mbps.
Do more with a Fast Connection
With the fastest 4G speed of up to 600Mbps, you can enjoy HD movies without interruption, downloading files in seconds, and smooth online gaming. Truly fastest, smoothest, most efficient data transmission.
Your Perfect Daily Wi-Fi Partner
The M7650 provides selectable dual band Wi-Fi, 867Mbps at 5GHz or 300Mbps at 2.4GHz. With this convenient companion, you can share your Wi-Fi with your friends everywhere.
Advanced Screen Menu for Easy Using
The intuitive screen display of M7650 makes it easy to stay within your data budget and avoids going over the monthly data cap. The screen also displays other much more information of battery life, signal strength, Wi-Fi status, connected users and more.
Internet Access for up to 32 Devices Simultaneously
The M7650 can easily share a 4G/3G connection with up to 32 wireless devices like tablets, laptops, and mobile phones at the same time. It can also provide internet access for desktop computers via the integrated USB port.
Power to Keep Working All-day-long
M7650 is equipped with a powerful 3000mAh battery. On its own, it can work effortlessly up to 15 hours at full capacity and stand by for over 900 hours. M7650 can be recharged via a micro USB cable connected to a laptop, portable charger or adapter for endless hours of 4G sharing.
Spread Your Wings with an Elegant Wi-Fi Companion
The smooth curves and elegant, compact design make the lightweight M7650 perfect for personal travel, business trips, outdoor activities, and everywhere else life takes you.
Wireless Media Sharing from Micro SD Card
It's now easier than ever to share photos, music, videos and more in your mobile network from a micro SD Storage - supports optional storage of up to 32G.
Easy Management with tpMiFi App
With the tpMiFi App, you can easily access and manage the M7650 from your connected iOS/Android devices. The tpMiFi app allows you to establish data limits, control which devices can access your Wi-Fi, send messages, and share media files to/from a removable Micro SD card.

Design

Device type: Cellular network router
Product colour: Black, Grey
Market positioning: Portable
Built-in display: Yes
Display type: TFT
Display diagonal: 3.66 cm (1.44")
Reset button: Yes
LED indicators: Yes

Ethernet LAN features

Ethernet LAN: No
DHCP client: Yes
DHCP server: Yes

Wireless LAN features

Wi-Fi: Yes
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
WLAN data transfer rates supported: 867 Mbit/s
Wi-Fi frequency: 5 GHz

Mobile network

Data network: 2G, 3G, 4G, LTE
2G standards: Edge, GPRS, GSM
3G standards: DC-HSPA+, HSPA, UMTS
4G standard: LTE
2G bands supported: 850,900,1800,1900 MHz
3G bands supported: 900,2100 MHz
4G bands supported: 800,900,1800,2100 MHz
GSM bands supported: 850,900,1800,1900 MHz
UMTS bands supported: 900,2100 MHz
SIM card type: MicroSIM

Ports interfaces

Card reader integrated: Yes
Compatible memory cards: MicroSD (TransFlash)

Security

Security algorithms: WPA-PSK, WPA2-PSK

Certificates

Certification: CE, RoHS

Packaging content

Cables included: Micro-USB

Performance

Windows operating systems supported: Windows 10, Windows 7, Windows 8, Windows 8.1, Windows Vista, Windows XP

Power

Power source type: AC
Battery capacity: 3000 mAh

Operational conditions

Operating temperature (T-T): 0 - 35 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%

Weight dimensions

Width: 106 mm
Depth: 66 mm
Height: 16 mm

Packaging data

User guide: Yes
Package width: 149 mm
Package depth: 101 mm
Package height: 60 mm
Package weight: 260 g

Logistics data

Harmonized System (HS) code: 85176990
