TP-Link M7450 cellular network device

TP-Link 300Mbps LTE-Advanced Mobile Wi-Fi M7450. Device type: Cellular network router, Product colour: Black, Grey, Market positioning: Portable. Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), WLAN data transfer rates supported: 300 Mbit/s. Data network: Edge, GPRS, GSM, HSPA, LTE, UMTS, 2G standards: Edge, GPRS, 3G standards: DC-HSDPA, HSPA, HSPA+, UMTS. Compatible memory cards: MicroSD (TransFlash), Maximum memory card size: 32 GB. Security algorithms: WPA-PSK, WPA2-PSK
Do More with a Faster Mobile Connection up to 300Mbps
The M7450 supporting the 4G LTE network LTE-A Cat.6, which is used Carrier Aggregation. This advanced technology merges the fragmented LTE band into a "virtual" wider band to increase the data rate,,to provide fast 4G speeds of up to 300Mbps. You can enjoy HD movies without interruption, downloading files in seconds, and smooth online gaming.
Share AC1200 Wi-Fi with 32 Wireless Devices Simultaneously
The M7450 provides selectable dual band Wi-Fi, 867Mbps at 5GHz or 300Mbps at 2.4GHz. It can easily share a 4G/3G connection with up to 32 wireless devices like tablets, laptops, and mobile phones at the same time. With this convenient companion, you can share your Wi-Fi with your friends everywhere.
Power to Keep Working All-day-long about 15 Hours
M7450 is equipped with a powerful 3000mAh battery. On its own, it can work effortlessly up to 15 hours at full capacity and stand by for over 900 hours. M7450 can be recharged via a micro USB cable connected to a laptop, portable charger or adapter for endless hours of 4G sharing.
Your Perfect Daily Wi-Fi Partner
The smooth curves and elegant, compact design make the lightweight M7450 perfect for personal travel, business trips, outdoor activities, and everywhere else life takes you.
Advanced Screen Menu for Easy Using
The intuitive screen display of M7450 makes it easy to stay within your data budget and avoids going over the monthly data cap. The screen also displays other much more information of battery life, signal strength, Wi-Fi status, connected users and more.
Wireless Media Sharing from Micro SD Card
It's now easier than ever to share photos, music, videos and more in your mobile network from a micro SD Storage - supports optional storage of up to 32G.
Easy Management with tpMiFi App
With the tpMiFi App, you can easily access and manage the M7450 from your connected iOS/Android devices. The tpMiFi app allows you to establish data limits, control which devices can access your Wi-Fi, send messages, and share media files to/from a removable Micro SD card.

Design

Device type: Cellular network router
Product colour: Black, Grey
Market positioning: Portable
Built-in display: Yes
Display type: TFT
Display diagonal: 3.66 cm (1.44")
Reset button: Yes
LED indicators: Yes

Ethernet LAN features

Ethernet LAN: No
DHCP client: Yes
DHCP server: Yes

Wireless LAN features

Wi-Fi: Yes
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
WLAN data transfer rates supported: 300 Mbit/s

Mobile network

Data network: Edge, GPRS, GSM, HSPA, LTE, UMTS
2G standards: Edge, GPRS
3G standards: DC-HSDPA, HSPA, HSPA+, UMTS
4G standard: LTE-TDD LTE-FDD
2G bands supported: 850,900,1800,1900 MHz
3G bands supported: 900,2100 MHz
4G bands supported: 800,900,1800,2100,2600 MHz
GSM bands supported: 850,900,1800,1900 MHz
UMTS bands supported: 900,2100 MHz
Number of simultaneous SIM cards: 1

Ports interfaces

USB port: Yes
Card reader integrated: Yes
Compatible memory cards: MicroSD (TransFlash)
Maximum memory card size: 32 GB

Security

Security algorithms: WPA-PSK, WPA2-PSK

Certificates

Certification: CE, RoHS

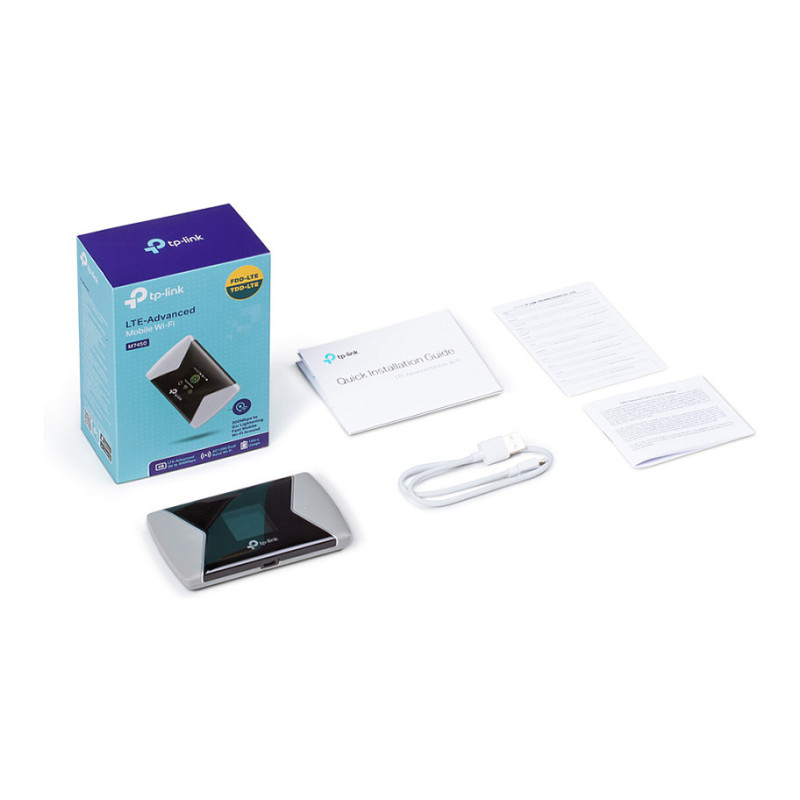

Packaging content

Cables included: Micro-USB

Performance

Antenna type: Internal
Windows operating systems supported: Windows 10, Windows 7, Windows 8, Windows 8.1, Windows Vista, Windows XP
Mac operating systems supported: Yes

Power

Power source type: Battery
Battery capacity: 3000 mAh

Operational conditions

Operating temperature (T-T): 0 - 35 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%

Weight dimensions

Width: 112 mm
Depth: 65 mm
Height: 16 mm

Packaging data

Package width: 149 mm
Package depth: 101 mm
Package height: 60 mm
Package weight: 260 g

Logistics data

Harmonized System (HS) code: 85176990
