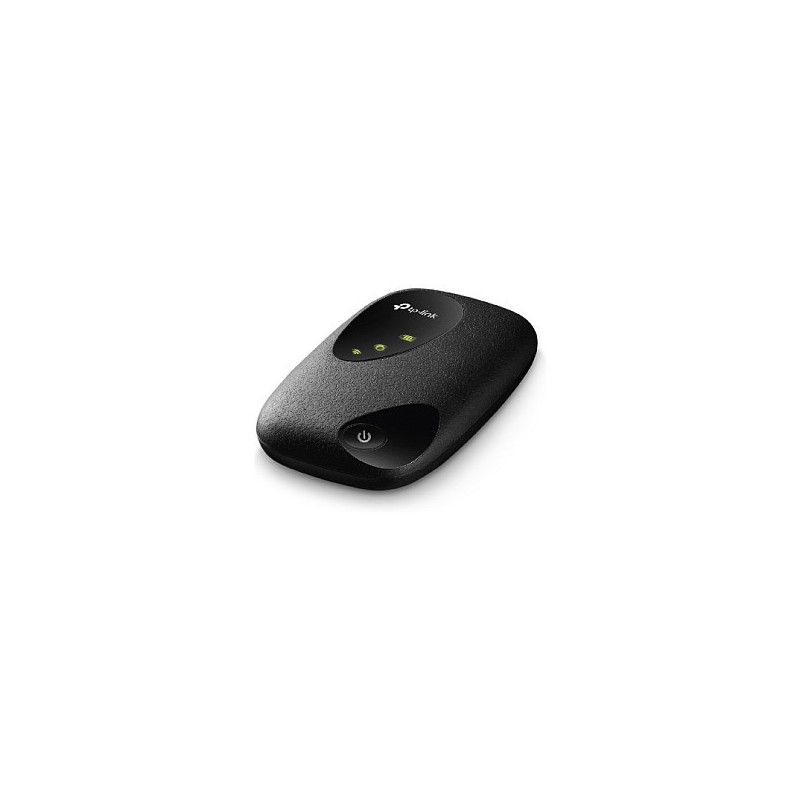

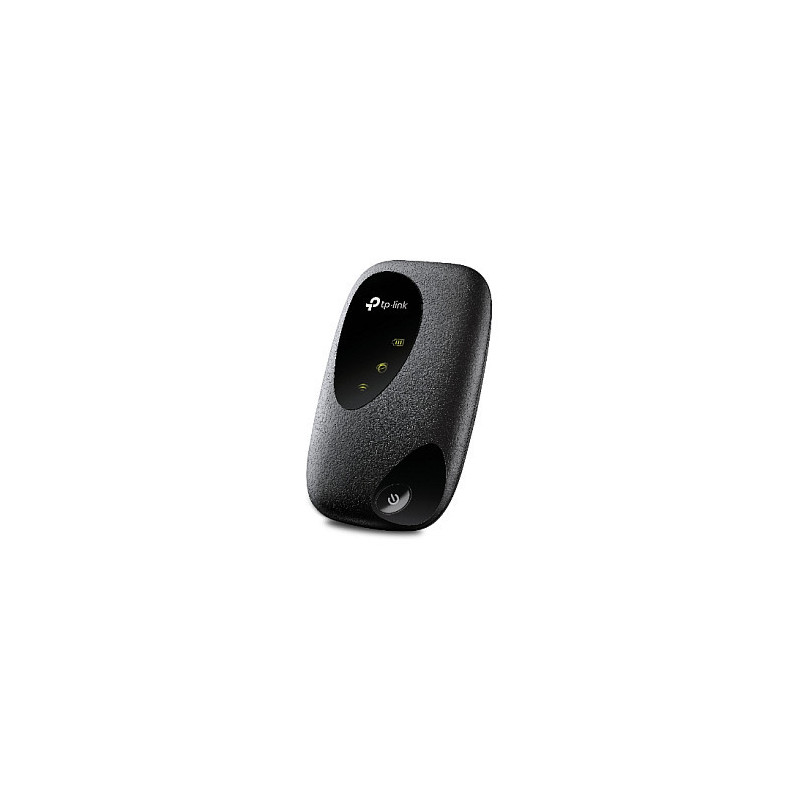

TP-Link M7010 cellular network device

TP-Link 4G LTE Mobile Wi-Fi. Device type: Cellular network router, Product colour: Black, LED indicators: Power, WLAN. Networking standards: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n. Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n), WLAN data transfer rates supported: 300 Mbit/s. Data network: 3G, 4G, LTE, 3G standards: HSPA, HSPA+, UMTS, 4G standard: LTE-FDD. USB port type: Micro-USB
Go Anywhere,
Connect Everywhere
LTE Mobile Wi-Fi
M7010
Share 4G LTE Connections on the Go
Just insert your 4G SIM card and M7010 provides WiFi connections for multiple devices, especially when you want to stay online on the road. With an 8-hour battery life, it'll replace your phone as your mobile hotspot for your laptop, saving your phone's battery power in the process.
Faster Speeds with
4G Plug and Play
M7010 supports 4G LTE for a download speed of up to 150 Mbps. Fast enough to enjoy HD movies with zero buffering, download files in seconds, and hold video calls without any drops. Always stay connected and enjoy a fast internet connection.
Share with Friends
This compact mobile hotspot works seamlessly with an impressive range of wireless devices. M7010 enables up to 10 simultaneous 4G/3G connections for tablets, laptops, mobile phones, and more.
Power through Your Day with up to 8 Hours of Sharable 4G
With its powerful 2000 mAh battery, M7010 provides up to 8 hours of wireless connectivity, making it the
perfect companion for travel, business trips, outdoor activities, and more.
Easy Management with tpMiFi
With the tpMiFi app, easily access and manage M7010 from your connected iOS/Android devices. The tpMiFi app allows you to establish data limits, control which devices can access your WiFi, and send messages.

Design

Device type: Cellular network router
Product colour: Black
Reset button: Yes
LED indicators: Power, WLAN

Ethernet LAN features

Ethernet LAN: No
Networking standards: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
DHCP client: Yes
DHCP server: Yes

Wireless LAN features

Wi-Fi: Yes
Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n)
WLAN data transfer rates supported: 300 Mbit/s

Mobile network

Data network: 3G, 4G, LTE
3G standards: HSPA, HSPA+, UMTS
4G standard: LTE-FDD
3G bands supported: 850,900,2100 MHz
4G bands supported: 800,850,900,1800,2100,2300,2500,2600 MHz
UMTS bands supported: 850,900,2100 MHz
SIM card type: MicroSIM

Ports interfaces

USB port type: Micro-USB
USB port: Yes

Security

Security algorithms: SSID, WPA-PSK, WPA2-PSK

Certificates

Compliance certificates: CE, RoHS
Certification: CE, RoHS

Packaging content

Cables included: Micro-USB

Sustainability

Sustainability compliance: Yes

Performance

Web-based management: Yes
Windows operating systems supported: Windows 10, Windows 7, Windows 8, Windows Vista, Windows XP
Mac operating systems supported: Yes
Mobile operating systems supported: Android, Windows Phone, iOS

Power

Power source type: Battery
Output voltage: 5 V
Output current: 1 A
Battery capacity: 2000 mAh

Operational conditions

Operating temperature (T-T): 0 - 35 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%

Weight dimensions

Width: 94 mm
Depth: 56.7 mm
Height: 19.8 mm

Packaging data

Package width: 135 mm
Package depth: 95 mm
Package height: 50 mm
Package weight: 197 g
