TP-Link M7005 wireless router

TP-Link M7005. Wi-Fi band: Single-band (2.4 GHz), Top Wi-Fi standard: Wi-Fi 6 (802.11ax), WLAN data transfer rate (max): 287 Mbit/s. Receiver sensitivity: 11b 11Mbps -89dBm 11g 54Mbps -75.5dBm 11n HT20 MCS7 -73.5dBm 11n HT40 MCS7 -70.5dBm 11ax HT20 MCS9.... Mobile network generation: 4G, 3G standards: HSPA, HSPA+, WCDMA, 4G standard: LTE-TDD & LTE-FDD. Security algorithms: SSID, WPA-PSK, WPA-PSK2, WPA3-SAE. Supported network protocols: HTTP, HTTPS, UDP

Go Anywhere, Connect Everywhere
4G LTE Mobile Wi-Fi

Connect Compact, Explore Boundless
The pocket-sized M7005 delivers seamless connectivity wherever life leads. Compact enough to slip into most bags, it powers adventures, business trips, and daily commutes with reliable internet.

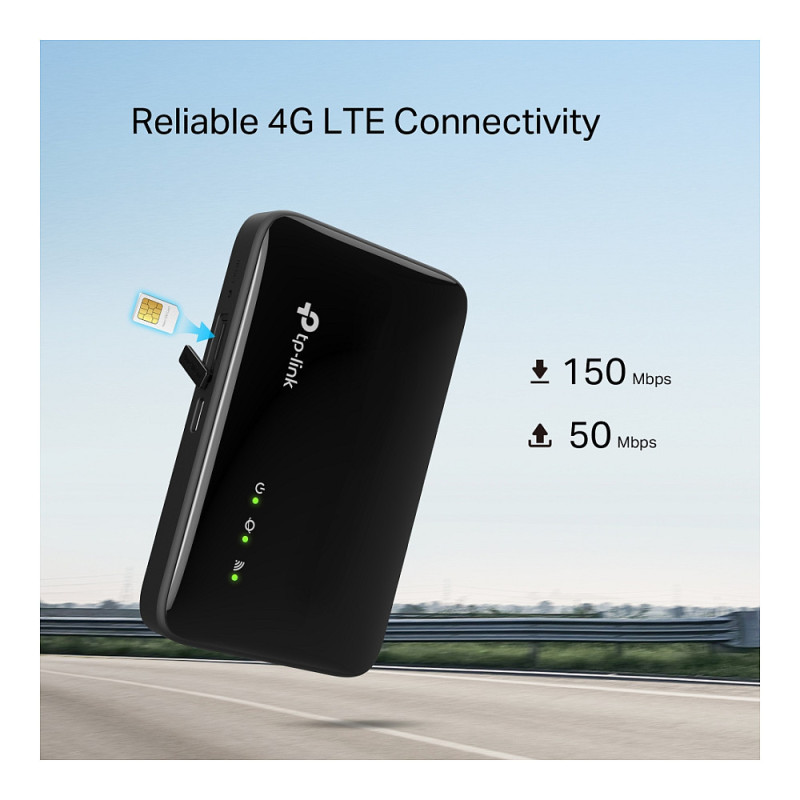

Reliable 4G LTE Connectivity
Skip the hassle of back cover removal—simply insert your SIM into the side slot for 4G speeds up to 150 Mbps. Enjoy smooth HD streaming, lag-free gaming, and instant large-file sharing, all with reliable connectivity wherever you go

Your Perfect Daily Wi-Fi Partner
The M7005 provides stable 287 Mbps Wi-Fi speeds, connecting you and your friends with reliable sharing anywhere

2400mAh Battery Powers All your Day
Powered by a 2400mAh high-capacity battery, the M7005 delivers up to 12 hours of use on a single charge. Enjoy fewer interruptions from charging and a consistently reliable connection throughout your day.

Power 10 Devices on the Go
Break free from spotty public WiFi and device limits. The M7005 delivers reliable Internet for up to 10 devices simultaneously, minimizing dead zones and connection drops. Stay connected anywhere with minimal effort.

Easy Management with tpMiFi App
With the tpMiFi App, you can easily access and manage the M7005 from your connected iOS/Android devices. The tpMiFi app allows you to establish data limits, control which devices can access your Wi-Fi, and send messages.

WAN connection

Feature: SIM card slot

Wireless LAN features

Wi-Fi band: Single-band (2.4 GHz)
Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
WLAN data transfer rate (max): 287 Mbit/s
Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 6 (802.11ax)

Network

Ethernet LAN interface type: Not available
Receiver sensitivity: 11b 11Mbps -89dBm11g 54Mbps -75.5dBm11n HT20 MCS7 -73.5dBm11n HT40 MCS7 -70.5dBm11ax HT20 MCS9 -68dBm11ax HT40 MCS9 -64.5dBm

Mobile network

Mobile network generation: 4G
3G standards: HSPA, HSPA+, WCDMA
4G standard: LTE-TDD & LTE-FDD
4G bands supported: 800,850,900,1800,2100,2300,2500,2600 MHz
3G bands supported: 850,900,2100 MHz
SIM card type: NanoSIM

Ports & interfaces

Feature: USB port
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
Feature: USB charging port

Management features

Feature: Reset button

Security

Security algorithms: SSID, WPA-PSK, WPA-PSK2, WPA3-SAE
Feature: Filtering
Feature: MAC address filtering

Protocols

Feature: DHCP client
Feature: DHCP server
Supported network protocols: HTTP, HTTPS, UDP

Design

Product colour: Black
LED indicators: Power
Feature: On/off switch
Product type: Portable router

Certificates

Compliance certificates: CE, RoHS

Packaging content

Cables included: USB Type-C
Feature: Quick installation guide

Battery

Battery capacity: 2400 mAh

Antenna

Antenna design: Internal
Transmit power: 20 dBmW

Power

Power source type: Battery
Battery life (max): 12 h

Operational conditions

Operating temperature (T-T): 0 - 35 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%

System requirements

Windows operating systems supported: Windows 10, Windows 11, Windows 7, Windows 8, Windows Vista, Windows XP
Mac operating systems supported: Yes
Mobile operating systems supported: Android, Windows Phone, iOS

Weight & dimensions

Width: 114 mm
Depth: 70 mm
Height: 23.9 mm
Weight: 118 g

Packaging data

Package type: Box
