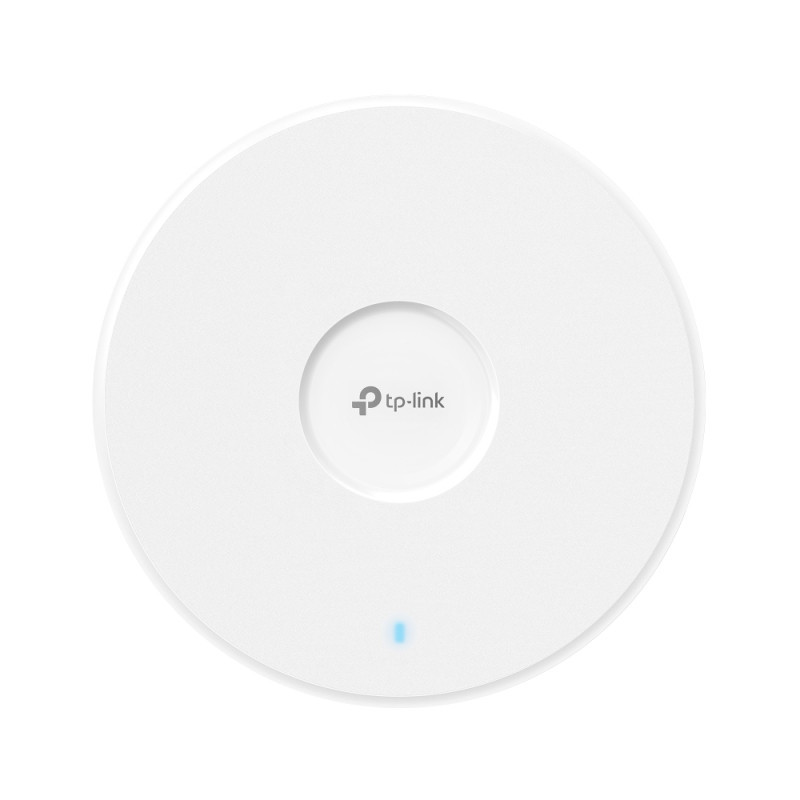

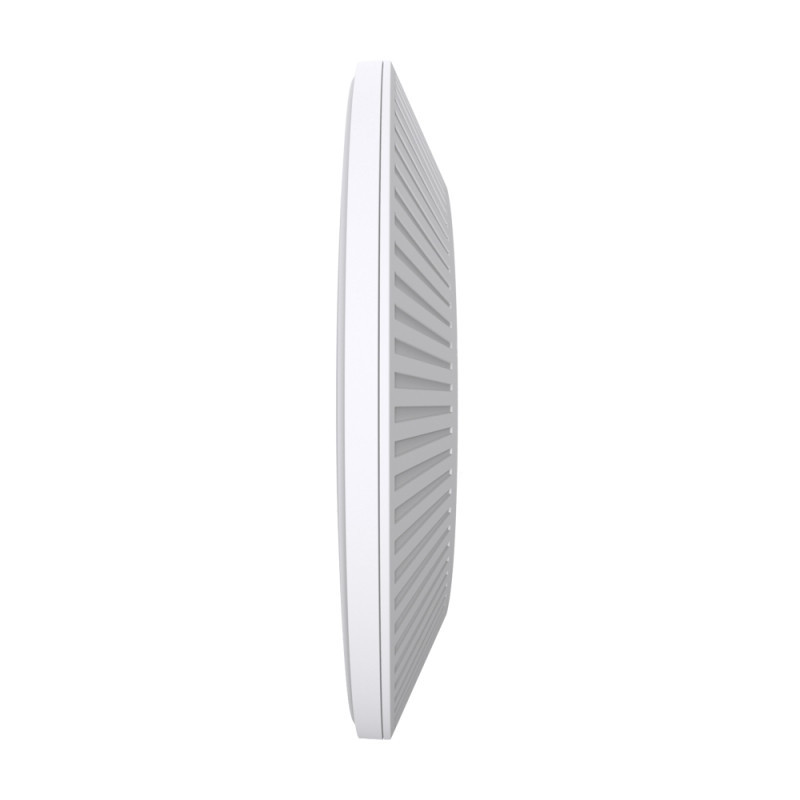

TP-LINK BE9300 Ceiling Mount Tri-Band Wi-Fi 7 Access Point EAP773 (EU)
Product reference:
18-EAP773
TP-LINK BE9300 Ceiling Mount Tri-Band Wi-Fi 7 Access Point EAP773 (EU)
TP-LINK BE9300 Ceiling Mount Tri-Band Wi-Fi 7 Access Point EAP773 (EU)
Product reference:
18-EAP773
TP-LINK BE9300 Ceiling Mount Tri-Band Wi-Fi 7 Access Point EAP773 (EU)
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
12 month
Delivery from Lithuania in
2 - 3
business days
- BE9300 Tri-Band Wi-Fi 7:5760 Mbps (6 GHz) + 2880 Mbps (5 GHz) + 574 Mbps (2.4 GHz). Buffering will no longer be a problem.
- 1× 10G Port:Unlock the full potential of Wi-Fi 7.
- Clear 6 GHz Band:Brings cleaner and wider band resources to your Wi-Fi.
- 320 MHz Bandwidth:Up to 320 MHz bandwidth enables many more simultaneous transmissions at the fastest possible speeds.
- Low Latency and Interference: Multi-Link Operation, and Multi-RUs ensure high performance of your network.
- Advanced Functions：Supports centralized management, mesh, and AI roaming.
HARDWARE FEATURES | |
|---|---|

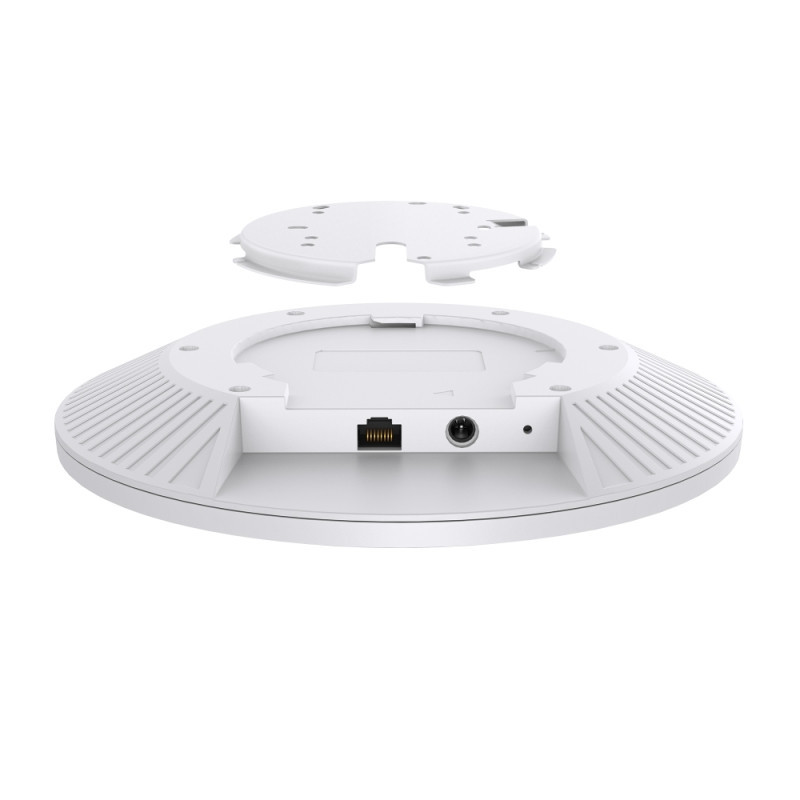

| Interface | 1× 10G Ethernet Port |
| Button | Reset |
| Power Supply | 802.3at PoE or 12V/2.5A DC Notice: Due to the software update, the power supply has been updated from 802.3bt to 802.3at. |
| Max. Power Consumption | • 24.05 W (For PoE); • 20.92 W (For DC) |
| Dimensions (W x D x H) | 8.7 × 8.7 × 1.3 in (220 × 220 × 32.5 mm) |
| Antenna | • 2.4 GHz: 2× 4.0 dBi • 5 GHz: 2× 5.0 dBi • 6 GHz: 2× 5.0 dBi |
| Bluetooth | 1 × 4.0 dBi, Bluetooth 5.2 *Firmware update may be required. |

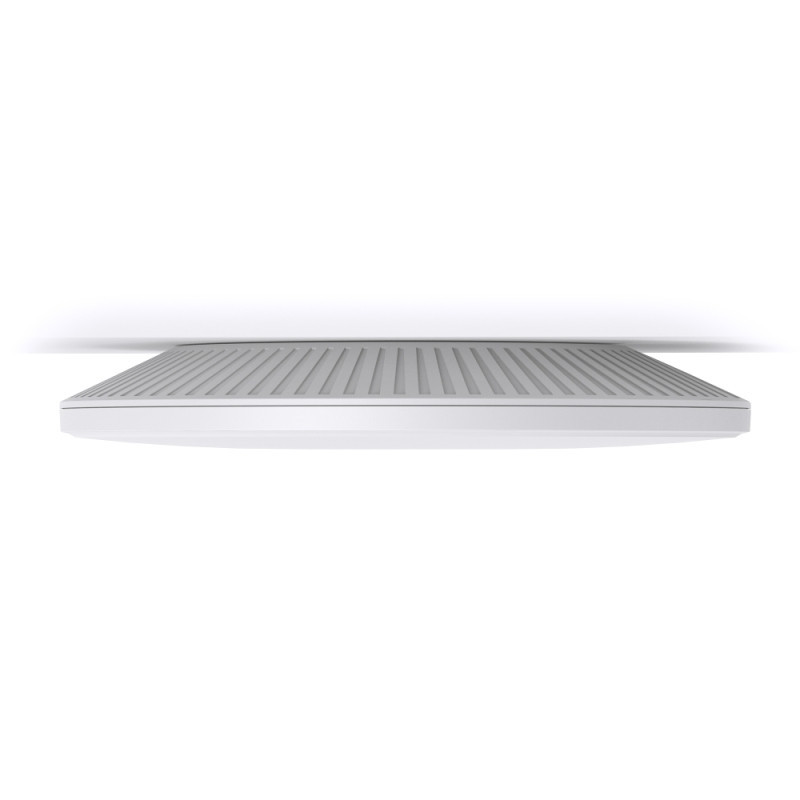

| Mounting | Ceiling / Wall / Junction Box Mounting (Kits Included) |
WIRELESS FEATURES | |
|---|---|
| Coverage | 140㎡(1500 ft²) |
| Concurrent Clients | 380+ |
| Wireless Standards | IEEE 802.11 a/b/g/n/ac/ax/be |
| Frequency | 6 GHz, 5 GHz, and 2.4 GHz |
| Signal Rate | 574 Mbps (2.4 GHz) + 2880 Mbps (5 GHz) + 5760 Mbps (6 GHz) |
| Wireless Functions | • MLO‡ • 4K-QAM‡ • Seamless Roaming(802.11k/v/r) • MU-MIMO (2*2 DL/UL MU-MIMO) • HE320 • Mesh • BSS Coloring • OFDMA • Load Balance • Band Steering • Beamforming • Airtime Fairness • Multiple SSIDS:24(8 on each band) • Wireless Schedule • Reboot Schedule • QoS(WMM) • Rate Limit • Static IP/Dynamic IP • RADIUS Accounting • MAC Authentication |
| Wireless Security | • Captive Portal Authentication • Access Control • Maximum number of MAC Filter: 4,000 • Wireless Isolation Between Clients • VLAN • Rogue AP Detection • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| Transmission Power | < 20 dBm (2.4 GHz, EIRP) < 23 dBm (5 GHz, band 1band 2, EIRP) < 28 dBm (5 GHz, band 3, EIRP) < 23 dBm (6 GHz, EIRP) |
Management Features | |
|---|---|
| Omada App | Yes |
| Centralized Management | • Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller |
| Cloud Access | Yes. Requires the use of an Omada controller. |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| System Logging Local/Remote Syslog | Yes |
| Web-based Management | Yes |
OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS, IC |
| Package Contents | • EAP773 • Installation Guide • Ceiling/Wall/Junction Box Mounting Kits Note: Power Adapter is NOT included. |
| Environment | • Operating Temperature: 0 °C-40 °C (32 °F-104 °F); • Storage Temperature: -40 °C-70 °C (-40 °F-158 °F); • Operating Humidity: 10%-90% non-condensing; • Storage Humidity: 5%-90% non-condensing; |
