TP-Link Archer TXE75E

TP-Link AXE5400 Wi-Fi 6E Bluetooth 5.2 PCIe Adapter. Internal. Connectivity technology: Wireless, Host interface: PCI Express, Interface: WLAN / Bluetooth. Maximum data transfer rate: 5400 Mbit/s, Top Wi-Fi standard: Wi-Fi 6E (802.11ax), Wi-Fi band: Dual-band (2.4 GHz / 5 GHz). Product colour: Black, Red

CONNECT YOUR PC
TO THE NEW FRONTIER
AXE5400 Wi-Fi 6E Bluetooth 5.2 PCIe Adapter

Upgrade Your WiFi to 6E
WiFi 6E means WiFi 6 extended to the 6 GHz band, a newly-opened frequency band that adds more bandwidth, faster speeds, and lower
latency. This opens up resources for future innovations in AR/VR, 8K streaming, and more.

Super Highway for Unimpeded Streaming
Archer TXE75E arms your PC with the newly opened 6 GHz band, unlocking your WiFi 6E router's full potential. Enjoy unimpeded streaming on the 6 GHz band—exclusive to WiFi 6E devices. This prevents drops in speed and interference from legacy devices.

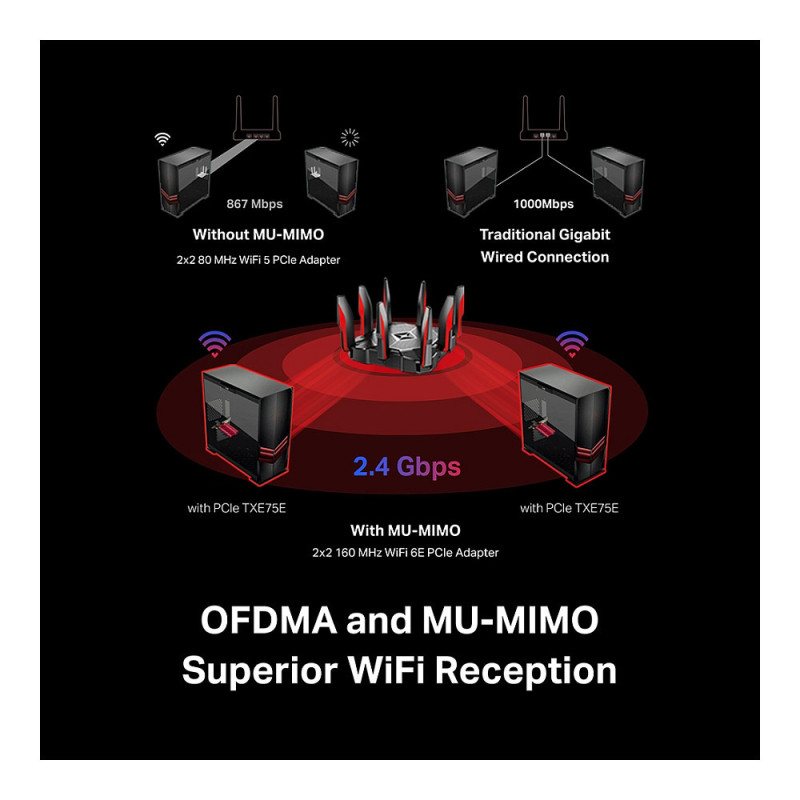

Superior WiFi Reception
Archer TXE75E brings your PC's WiFi reception to the next level with the revolutionary combination of OFDMA and MU-MIMO. This ensures the efficiency of your PC's WiFi connection by allowing more devices to communicate with your router simultaneously, rather than waiting in turn for data.

Ultra-Responsive Gaming with Lower Latency
Lower latency is key to seamless experiences in real-time applications like video conferencing and gaming. To achieve this, Archer TXE75E reduces lag by up to 75% with the Intel® Wi-Fi 6E chipset.

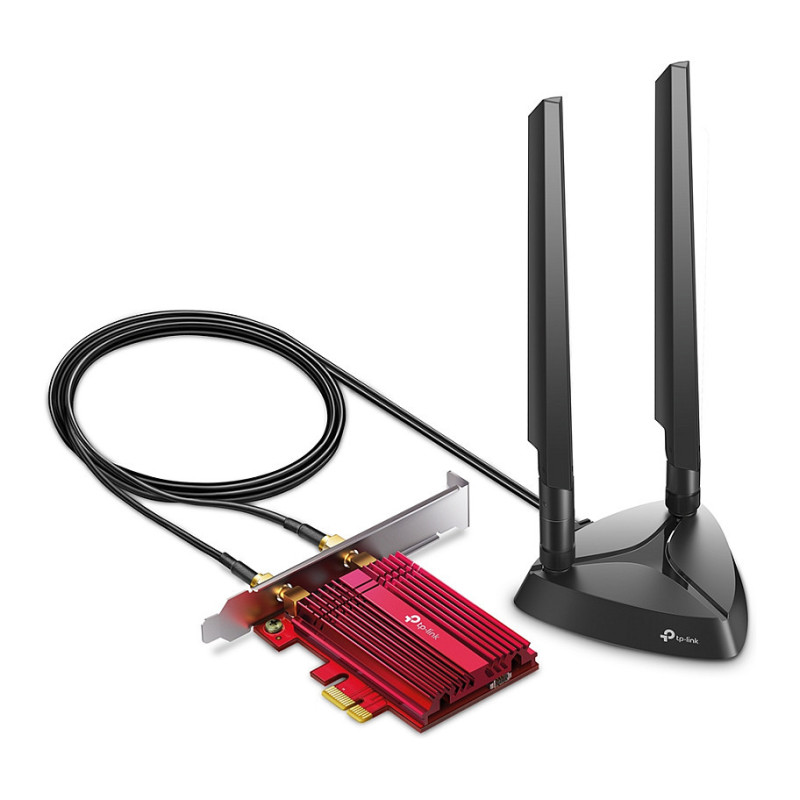

Stronger Connection with Flexible Antenna Placement
Two multi-directional and high-performance antennas with a magnetized base extend your existing WiFi reception capabilities, allowing you to stream throughout your home. Place the antenna base anywhere on your desktop to find the optimal location for signal reception.

The Latest Bluetooth 5.2
Coordinate your game controllers, headphones, and keyboards with the latest Bluetooth standard. Archer TXE75E equips your PC with Bluetooth 5.2, which achieves faster speeds and broader coverage.

Refined Security
The latest WiFi security protocol, WPA3, brings new capabilities to improve cybersecurity. More secure encryption in WiFi password safety and enhanced protection against brute-force attacks combine to safeguard your home network.

Ports & interfaces

Connectivity technology: Wireless
Host interface: PCI Express
Interface: WLAN / Bluetooth

Network

Maximum data transfer rate: 5400 Mbit/s
Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Feature: Wi-Fi
Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
WLAN data transfer rates supported: 11,54,300,1732,2402 Mbit/s
Security algorithms: WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, WPA3
Feature: Bluetooth
Bluetooth version: 5.2

Design

Component for: PC
Product colour: Black, Red
Feature: Internal
Antenna: Yes
Antenna design: External
Transmitting power (FCC): 5 GHz: 20dBm, 2.4 GHz: 20dBm, 6 GHz: 12dBm
Operating modes: Infrastructure mode

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%

Sustainability

Feature: Sustainability compliance

Weight & dimensions

Width: 95.2 mm
Depth: 120.8 mm
Height: 21.5 mm

Packaging data

Package width: 271.5 mm
Package depth: 216.5 mm
Package height: 48.5 mm
Package weight: 480 g

Packaging content

Feature: Mounting brackets included
Feature: Resource CD
Feature: Bluetooth header cable
Feature: Quick installation guide

Technical details

Compliance certificates: CE, Federal Communications Commission (FCC), RoHS

Logistics data

Harmonized System (HS) code: 85176990
