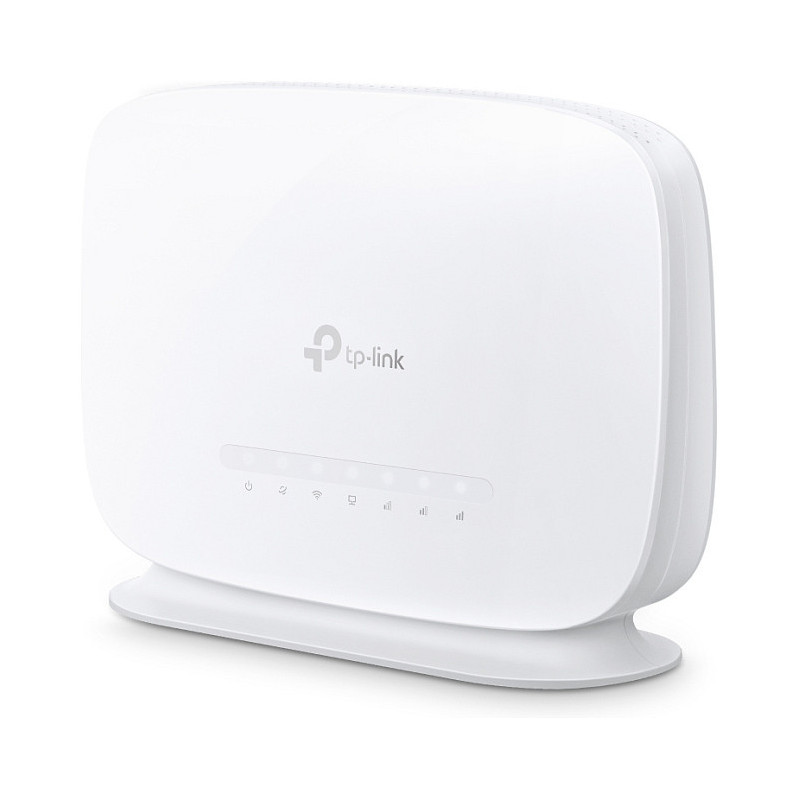

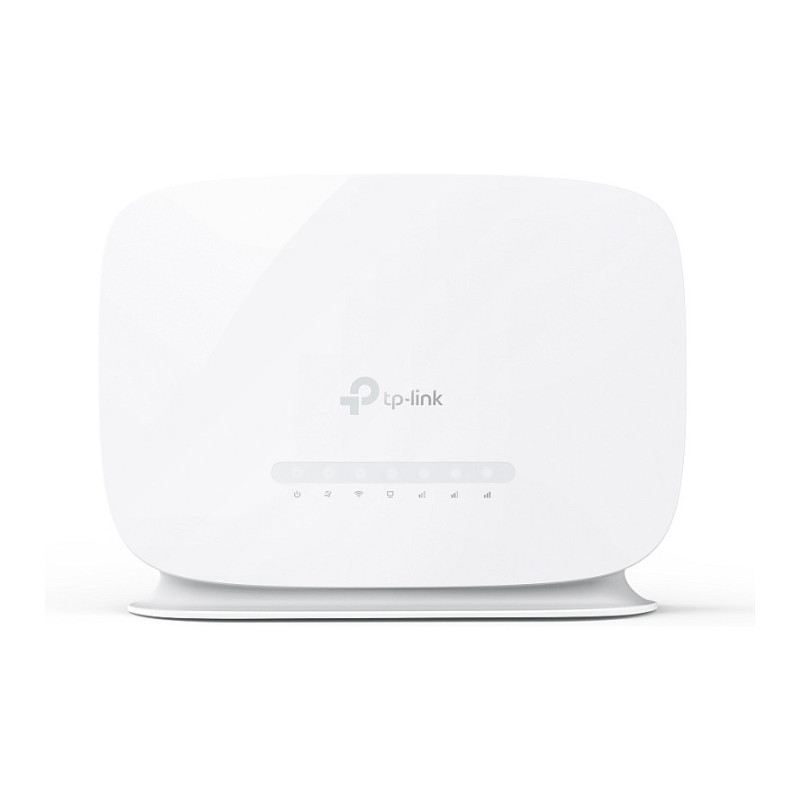

TP-Link Archer MR505 wireless router

TP-Link Archer 4G+ Cat6 AC1200 Wireless Dual Band Gigabit Router. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), Top Wi-Fi standard: Wi-Fi 5 (802.11ac), WLAN data transfer rate (max): 1200 Mbit/s. Ethernet LAN interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Cabling technology: 10/100/1000Base-T(X). Mobile network generation: 4G, 3G standards: DC-HSPA+, HSPA+, UMTS, 4G standard: LTE-TDD LTE-FDD. Security algorithms: 64-bit WEP, 128-bit WEP, WPA, WPA3. Product type: Desktop/pole router, Product colour: White
A 4G+ Router for Flexible Connections
AC1200 Dual Band Wi-Fi LTE Router
Fast 4G+ Connection Where You Need It
Simple, just one SIM card
Traditional broadband or cable installation is expensive and time-consuming for your vacation home, farm, or suburban warehouse. Long contract periods also create headaches for short-rentals, pop-up venues, and temporary shops to access the internet. Archer MR505 ensures a comfortable and no-block network installation. Plug in your SIM card and enjoy high-speed internet!
Superfast 4G+ LTE Speed for Reliable Wi-Fi
Thanks to 4G+ Carrier Aggregation technology which combines different carrier signals for even faster bandwidth, MR505 boosts 300 Mbps download speeds fulfills your devices' needs. It can also share a dual-band Wi-Fi network with speeds of 867 Mbps on 5 GHz for bandwidth-intensive tasks like HD streaming and gaming and 300 Mbps on 2.4 GHz for internet surfing, email, and social media.
Ideal for Small Business
with 64 Devices Connection Simultaneously
Easily share a 3G/4G connection with up to 64 wireless devices, such as phones, tablets, and laptops, at the same time. 3 LAN ports stand ready to provide internet for wired devices like desktop computers.
Powerful CPU
for Stable Data Processing
MU-MIMO
Serves Multiple Devices at once
Beamforming
Concentrate Signal Strength
Amplifier with External Antennas
Boost Signal Coverage
Flexibly Create Whole Home Mesh WiFi
If you have any dead zones at home, just add another EasyMesh-compatible router/range extender to further form your whole home multi-gigabit mesh WiFi. No more searching for a stable connection.
WiFi Dead Zone Killer
Eliminate weak signal areas with WiFi coverage for the whole house
Smart Roaming
Uninterrupted streaming when moving around your home
One WiFi Name
No more switching WiFi network names
Available WAN Connection Backup
With a fully functional WAN/LAN port, Archer MR505 can work as a router that is compatible with cable, fiber, and DSL modems, or provide internet for wired devices. The reliable access is for up to 64 devices Simultaneously.
Easy Setup and Use
Set up the Archer MR505 in minutes thanks to its intuitive web interface and the powerful Tether app. Manage network settings, including Parental Controls and Access Control, from any Android or iOS device. Tether also provides Automatic Firmware Updates to always give your network the latest performance and security.

WAN connection

Ethernet WAN: Yes
SIM card slot: Yes

Wireless LAN features

Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard: Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max): 1200 Mbit/s
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
WLAN data transfer rate (first band): 300 Mbit/s
WLAN data transfer rate (second band): 867 Mbit/s

Network

Ethernet LAN: Yes
Ethernet LAN interface type: Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
Cabling technology: 10/100/1000Base-T(X)
Dynamic DNS (DDNS): Yes
Static route: Yes
Number of guest networks (2.4 GHz): 1
Number of guest networks (5 GHz): 1
VPN server: Y

Mobile network

Mobile network generation: 4G
3G standards: DC-HSPA+, HSPA+, UMTS
4G standard: LTE-TDD LTE-FDD
4G bands supported: 700,800,850,900,1800,2100,2300,2500,2600 MHz
3G bands supported: 850,900,2100 MHz

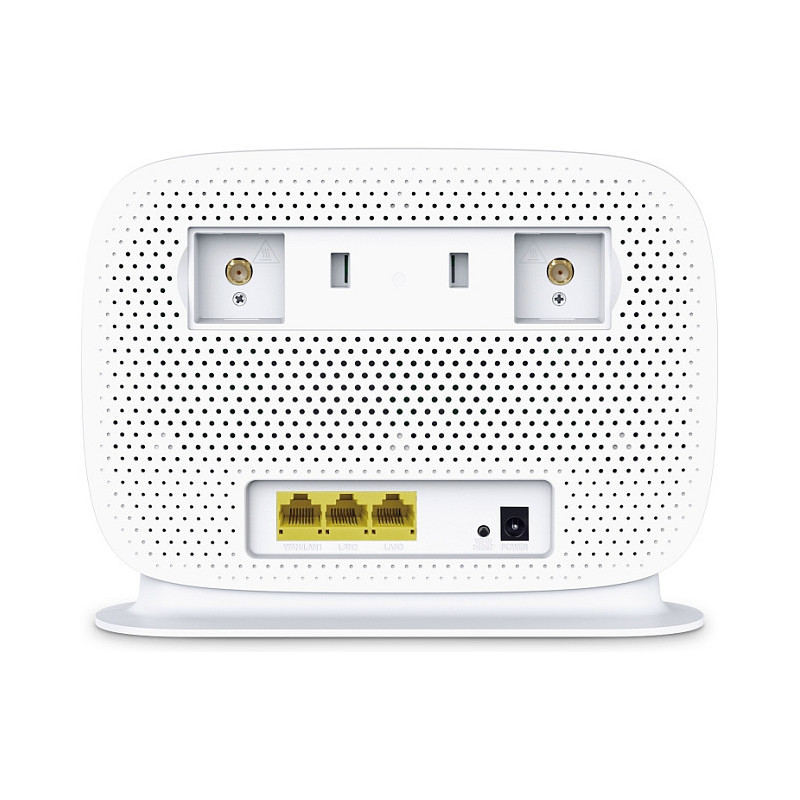

Ports interfaces

Ethernet LAN (RJ-45) ports: 3
USB port: No
DC-in jack: Yes

Security

Security algorithms: 64-bit WEP, 128-bit WEP, WPA, WPA3
Parental control: Yes

Protocols

DHCP client: Yes
DHCP server: Yes

Design

Product colour: White
Indication light: Yes
Product type: Desktop/pole router

Packaging content

AC adapter included: Yes
Quick start guide: Yes

Antenna

Antenna design: Internal
Antennas quantity: 2
Detachable antenna(s): Yes

Power

Power source type: DC
Output voltage: 12 V
Output current: 1.5 A

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%

Weight dimensions

Width: 212 mm
Depth: 157.5 mm
Height: 57 mm

Packaging data

Package type: Box
