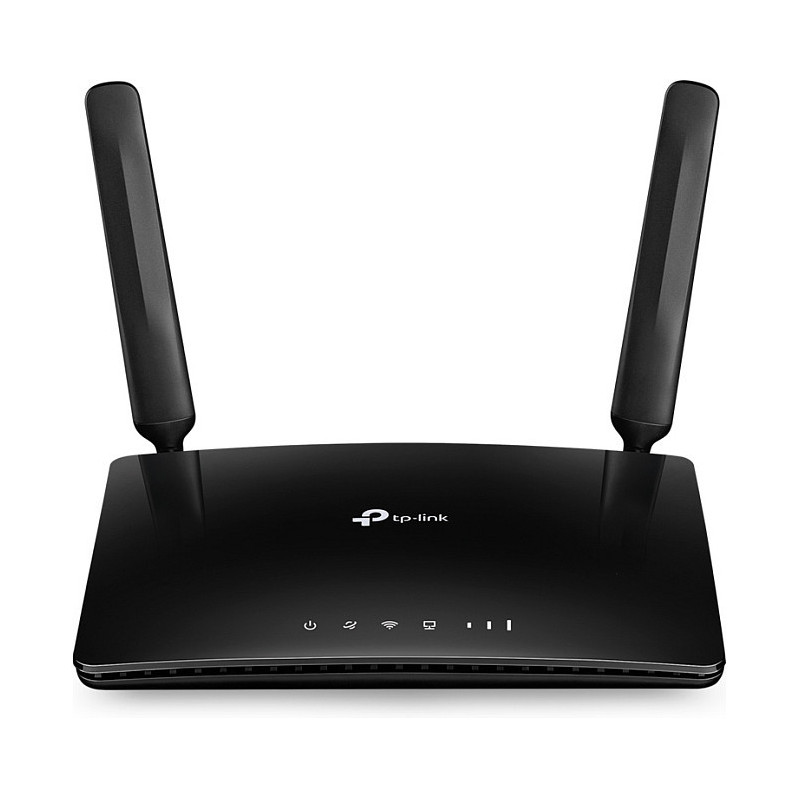

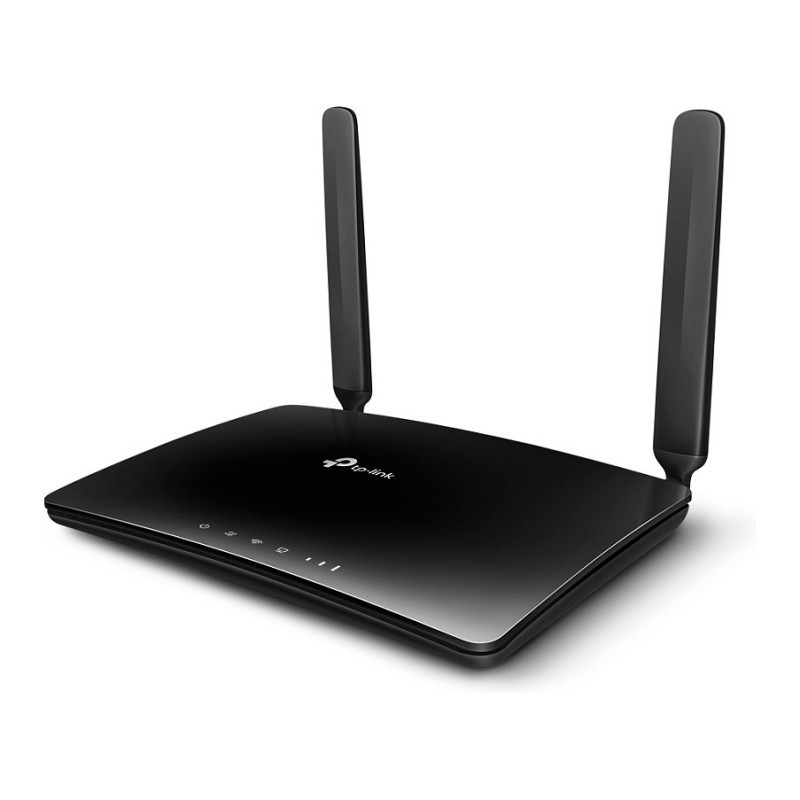

TP-Link Archer MR400 wireless router

TP-Link Archer AC1200 Wireless Dual Band 4G LTE Router. WAN connection type: RJ-45. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), Top Wi-Fi standard: Wi-Fi 5 (802.11ac), WLAN data transfer rate (max): 867 Mbit/s. Ethernet LAN interface type: Fast Ethernet, Ethernet LAN data rates: 10,100 Mbit/s, Cabling technology: 10/100Base-T(X). Mobile network generation: 4G, 2G standards: Edge, GPRS, GSM, 3G standards: DC-HSPA+, HSPA, HSPA+, UMTS. Security algorithms: 64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, Firewall security: DoS, SPI Firewall, IP and MAC Address Binding

4G LTE with AC1200 Wi-Fi to Stream from Everywhere
AC1200 Wireless Dual Band 4G LTE Router
Archer MR400

Got SIM Card?
Then Plug and Play!
With an integrated 4G LTE modem and a built-in SIM card slot, all you need to do is insert a micro SIM card and turn on the Router. Enjoying fast, stable Wi-Fi on a 4G LTE network has never been easier.

Share Your 4G LTE Network
Take full of advantage of your cutting-edge 4G LTE network for download speeds of up to 150 Mbps. Share your 4G LTE network with multiple Wi-Fi devices and enjoy uninterrupted HD movies, rapid file downloads, and smooth video chats. Fully compatible with FDD-LTE and TDD-LTE to work with most service providers worldwide.

Wi-Fi Where You Need It
Enjoy unmatched convenience and versatility. Tested in the field for years to ensure universal compatibility with 2 advanced LTE antennas to deliver a smooth connection. Simply plug in a micro SIM card and power on this elegant piece of technology to utilize fast and stable Wi-Fi, whether you're at home or working remote.

Internet Access for
up to 64 Devices Simultaneously
Easily share a 3G/4G connection with up to 64 wireless devices, such as phones, tablets, and laptops, at the same time. 4 LAN ports stand ready to provide internet for wired devices like desktop computers.

Easy Setup and Management
Set up the Archer MR400 in minutes thanks to its intuitive web interface and the powerful Tether app. Tether also lets you manage its network settings from any Android or iOS device, including parental controls and access control.

WAN connection

Feature: Ethernet WAN
Feature: SIM card slot
WAN connection type: RJ-45

Wireless LAN features

Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard: Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max): 867 Mbit/s
Wi-Fi standards: 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
WLAN data transfer rate (first band): 450 Mbit/s
WLAN data transfer rate (second band): 867 Mbit/s

Network

Feature: Ethernet LAN
Ethernet LAN interface type: Fast Ethernet
Ethernet LAN data rates: 10,100 Mbit/s
Cabling technology: 10/100Base-T(X)
Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Feature: Port forwarding
Feature: Dynamic DNS (DDNS)
VPN server: PPTP VPN, IPSec VPN , OpenVPN
VPN tunnels quantity: 10
Feature: VPN Passthrough
VPN support: PPTP, L2TP, IPSec

Mobile network

Mobile network generation: 4G
Feature: 3G
Feature: 4G
2G standards: Edge, GPRS, GSM
3G standards: DC-HSPA+, HSPA, HSPA+, UMTS
4G standard: LTE
GSM bands supported: 850,900,1800,1900 MHz
4G bands supported: 800,900,1800,2100,2600 MHz
3G bands supported: 900,2100 MHz
SIM card type: MicroSIM

Ports & interfaces

Ethernet LAN (RJ-45) ports: 3
Feature: DC-in jack

Management features

Feature: Web-based management
Feature: Quality of Service (QoS) support
Feature: Reset button
Feature: WPS push button

Security

Security algorithms: 64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Feature: Firewall
Firewall security: DoS, SPI Firewall, IP and MAC Address Binding
Feature: Guest access
Feature: Access Control List (ACL)
Feature: Stateful Packet Inspection (SPI)
Feature: DoS attack prevention
Feature: DMZ support

Protocols

Feature: DHCP client
Feature: DHCP server
Feature: Universal Plug and Play (UPnP)
Supported network protocols: IPv4, IPv6

Design

Product colour: Black
Feature: Wall mountable
LED indicators: LAN, Power, Status, WLAN
Feature: On/off switch
Product type: Tabletop router

Certificates

Certification: CE, RoHS

Packaging content

Cables included: LAN (RJ-45)
Feature: AC adapter included
Feature: Quick installation guide

Antenna

Antenna design: Internal & external
Antennas quantity: 2
Feature: Detachable antenna(s)
Transmit power: CE: <20dBm(2.4GHz), <23dBm(5GHz)

Power

Power source type: DC
Output voltage: 12 V
Output current: 1.5 A

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%

System requirements

Linux operating systems supported: Yes
Mac operating systems supported: macOS
Feature: Mac compatibility

Weight & dimensions

Width: 174 mm
Depth: 124.5 mm
Height: 33.5 mm

Packaging data

Package width: 307 mm
Package depth: 223 mm
Package height: 70 mm
Package weight: 670 g
Package type: Box

Logistics data

Harmonized System (HS) code: 85176990
