TP-Link Archer C54 wireless router

TP-Link Archer C54. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), Top Wi-Fi standard: Wi-Fi 5 (802.11ac), WLAN data transfer rate (max): 867 Mbit/s. Ethernet LAN interface type: Fast Ethernet, Ethernet LAN data rates: 10,100 Mbit/s, Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11d, IEEE 802.11g, IEEE 802.11n. Security algorithms: WEP, WPA, WPA2, WPA2-Enterprise. Product type: Tabletop router, Product colour: Black. Antenna design: External

Fast Dual-Band WiFi
Dual-band Wi-Fi allows you to connect your demanding devices to the faster and clearer 5 GHz band, while a tradition 2.4 GHz band provides a far-reaching, stable connection to the rest of your devices.

Boosted Signal throughout Your Home
Access your entertainment from every corner of your home with 4 external high-performance antennas. Beamforming technology detects devices and concentrates wireless signals towards them, even if they are far away or low-powered.

Talk to Devices Simultaneously
Equipped with MU-MIMO technology to connect more devices and maintain low latency. Concurrent streamings on 2 different MU-MIMO devices now will just be smooth as connecting only one, as long as you have enough bandwidth from your ISP.

Router Mode (Default)
Plug in an Ethernet cable to instantly create a private wireless network and share internet access with all your Wi-Fi devices.

Access Point Mode
Transform your existing wired network into a wireless one.

Range Extender Mode
Boost the existing wireless coverage in your house.

Versatile Management
Easily manage your home network with versatile built-in tools, including Parental Controls, Guest Network, QoS, and more.

WAN connection

Feature: Ethernet WAN
Feature: DSL WAN

Wireless LAN features

Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard: Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max): 867 Mbit/s
WLAN data transfer rate (first band): 867 Mbit/s
WLAN data transfer rate (second band): 300 Mbit/s

Network

Feature: Ethernet LAN
Ethernet LAN interface type: Fast Ethernet
Ethernet LAN data rates: 10,100 Mbit/s
Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11d, IEEE 802.11g, IEEE 802.11n
Feature: Port forwarding
Feature: Port triggering
Feature: Dynamic DNS (DDNS)

Ports & interfaces

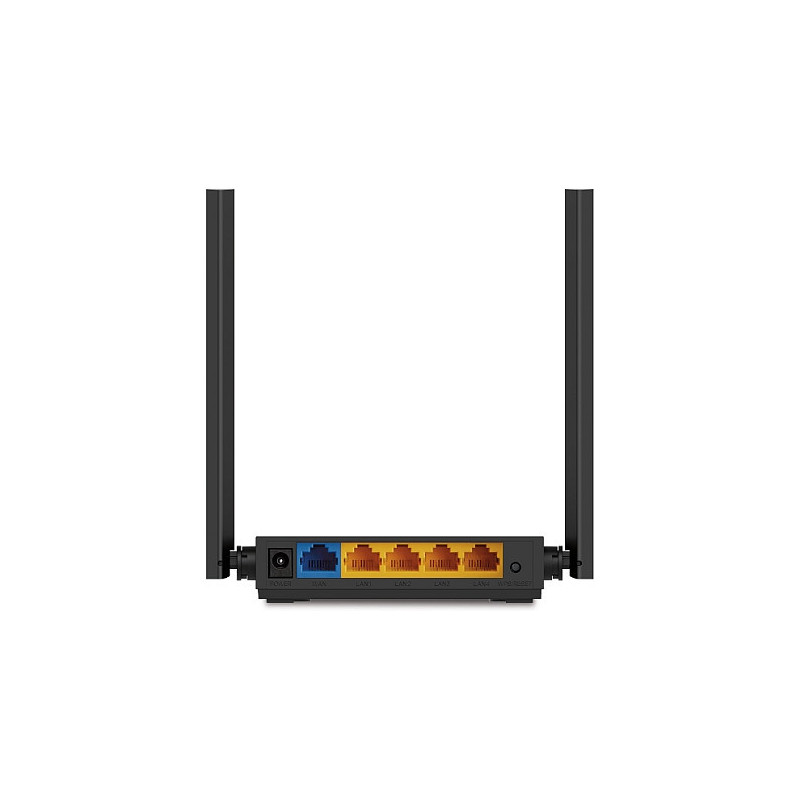

Ethernet LAN (RJ-45) ports: 4

Management features

Feature: Quality of Service (QoS) support
Feature: Reset button
Feature: WPS push button
Feature: MU-MIMO technology

Security

Security algorithms: WEP, WPA, WPA2, WPA2-Enterprise
Feature: Firewall
Feature: Access Control List (ACL)
Feature: Stateful Packet Inspection (SPI)
Feature: DMZ support

Protocols

Feature: DHCP client
Feature: DHCP server
Feature: Universal Plug and Play (UPnP)

Design

Product colour: Black
Product type: Tabletop router

Antenna

Antenna design: External
Antennas quantity: 4

Power

Power source type: AC
Output voltage: 9 V
Output current: 0.85 A

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 60 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%

Weight & dimensions

Width: 115 mm
Depth: 106.7 mm
Height: 24.3 mm
