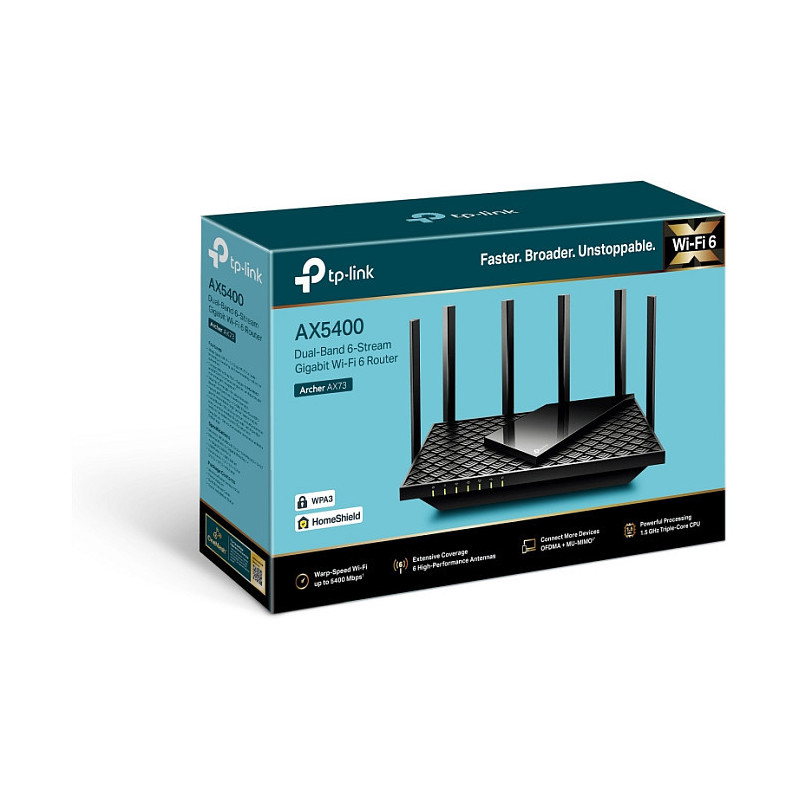

TP-Link Archer AX73 wireless router

TP-Link Archer AX5400 Dual-Band Gigabit Wi-Fi 6 Router, Black. WAN connection type: RJ-45. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), Top Wi-Fi standard: Wi-Fi 6 (802.11ax), WLAN data transfer rate (max): 5400 Mbit/s. Ethernet LAN interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Cabling technology: 10/100/1000Base-T(X). Security algorithms: WPA, WPA-Enterprise, WPA2, WPA2-Enterprise, WPA3. Supported network protocols: IPv4, IPv6
The latest generation of Wi-Fi technology brings faster speeds, less lag and higher capacity, enabling more simultaneous connections on your home network. Enjoy stable Wi-Fi connections, even in the kitchen and bedroom. High-Power FEM, 6 x Antennas, Beamforming and 4T4R structures combine to adapt Wi-Fi coverage to perfectly fit your home and concentrate signal strength towards your devices. HomeShield will record abnormal incoming traffic and the device will automatically block requests from enlisted IPs. Manage online time and block inappropriate content to keep your family safe online. 5400 Mbps wifi for faster browsing, streamings and downloading, all at the same time. Fully Featured wi-fi 6 equips with the top structure of 4t4r and he160 on the 5 ghz band to enable 4.8 gbps ultra-fast connection. Connect 200+ devicesSection supports mu-mimo and ofdma to reduce congestion and quadruple the average throughput. Extensive coverage 6 x antennas and beamforming ensure broad coverage. HomeShield tp-link's premium security services keep your home network safe with cutting-edge features for network and iot protection. More Vents, less heat improved vents area unleash the full power of the whole machine. USB Sharing 1 x usb 3.0 port enables easy media sharing and private cloud building. Easy Setup set up the router in minutes with tether app. Link Aggregation static link aggregation (lag) available with 2 x lan ports.

WAN connection

Ethernet WAN: Yes
DSL WAN: No
SIM card slot: No
3G/4G USB modem compatibility: No
WAN connection type: RJ-45

Wireless LAN features

Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
WLAN data transfer rate (max): 5400 Mbit/s
Wi-Fi standards: Wi-Fi 4 (802.11n), 802.11b, 802.11a, 802.11g, Wi-Fi 5 (802.11ac)
WLAN data transfer rate (first band): 4804 Mbit/s
WLAN data transfer rate (second band): 574 Mbit/s
Modulation: 1024-QAM, OFDM

Network

Ethernet LAN: Yes
Ethernet LAN interface type: Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
Cabling technology: 10/100/1000Base-T(X)
Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g
Port forwarding: Yes
Port triggering: Yes
Dynamic DNS (DDNS): Yes
Number of guest networks (2.4 GHz): 1
Number of guest networks (5 GHz): 1
Support Samba (storage): Yes
Built-in FTP server: Yes
Media server: Yes

Ports interfaces

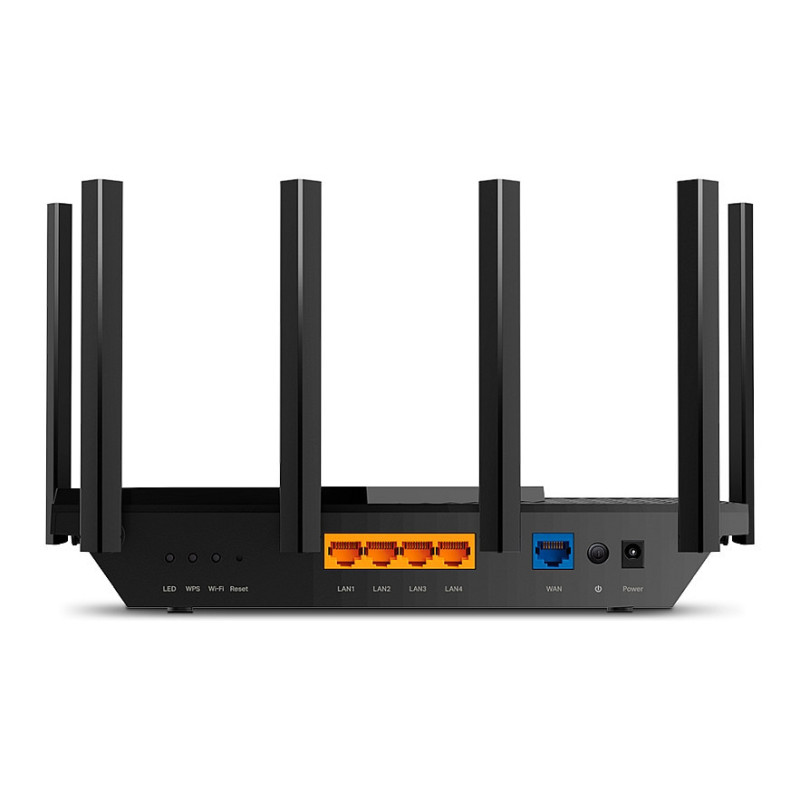

Ethernet LAN (RJ-45) ports: 4

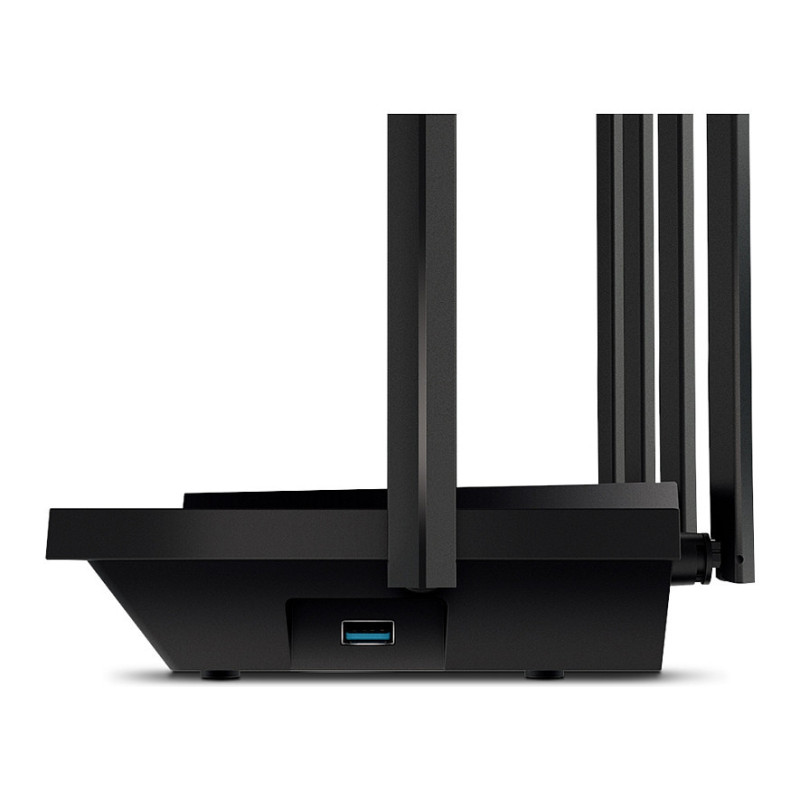

USB port: Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1

Management features

Web-based management: Yes
Quality of Service (QoS) support: Yes
Reset button: Yes
WPS push button: Yes
MU-MIMO technology: Yes

Security

Security algorithms: WPA, WPA-Enterprise, WPA2, WPA2-Enterprise, WPA3
Firewall: Yes
Access Control List (ACL): Yes
Stateful Packet Inspection (SPI): Yes
DoS attack prevention: Yes
Parental control: Yes
Filtering: Yes
MAC address filtering: Yes
IP address filtering: Yes
DMZ support: Yes
Network address translation (NAT): Yes

Protocols

DHCP client: Yes
Universal Plug and Play (UPnP): Yes
Supported network protocols: IPv4, IPv6

Design

Product colour: Black
On/off switch: Yes
Product type: Portable router

Certificates

Compliance certificates: RoHS, Federal Communications Commission (FCC), CE

Packaging content

Cables included: LAN (RJ-45)
AC adapter included: Yes
Quick installation guide: Yes
Packaging content: 1 x TP-Link Archer AX5400 Dual-Band Gigabit Wi-Fi 6 Router, Black

Sustainability

Sustainability compliance: Yes

Antenna

Antenna design: External
Antennas quantity: 6

Features

Built-in processor: Yes
Processor frequency: 1500 MHz
Processor cores: 3
Firmware upgradeable: Yes

Power

Power source type: DC
Output voltage: 12 V
Output current: 2.5 A

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%

Weight dimensions

Width: 272.5 mm
Depth: 147.2 mm
Height: 49.2 mm

Packaging data

Package width: 124 mm
Package depth: 310 mm
Package height: 38 mm
Package weight: 800 g

Logistics data

Quantity per pack: 1 pc(s)
Harmonized System (HS) code: 85176990
Country of origin: Malaysia
