TP-Link Archer AX23 wireless router

TP-Link Archer AX1800 Dual-Band Wi-Fi 6 Router. WAN connection type: RJ-45. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), Top Wi-Fi standard: Wi-Fi 6 (802.11ax), WLAN data transfer rate (max): 1800 Mbit/s. Ethernet LAN interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n. Security algorithms: 64-bit WEP, 128-bit WEP, WMM, WPA, WPA-PSK, WPA2, WPA2-PSK, NAT functionality: Port Forwarding, Port Triggering, UPnP, DMZ. Product type: Tabletop router, Product colour: Black

Explore the
New Era of WiFi
AX1800 Dual-Band Wi-Fi 6 Router

WiFi 6 Upgrades Everything
The latest generation of WiFi technology brings faster speeds, less lag, and higher capacity, enabling more simultaneous connections on your home network.

Super-Fast WiFi 6
Transfer HD movies in 10 seconds. WiFi 6's 1024-QAM improves encoding efficiency by 25% while the improved symbol rate boosts data rate by 11%. Enjoy broader bandwidth while streaming content on multiple devices.

Connect More, Stay Fast
Enjoy smooth gaming, video streaming, and live feeds simultaneously. OFDMA strengthens your WiFi by allowing multiple clients to share one band at the same time, cutting latency and jitter.

WiFi Coverage Throughout
Your Home
4× high-performance external antennas boost WiFi signals throughout your home. Beamforming technology detects devices and concentrates wireless signal strength towards them, especially for those in previously hard-to-reach areas.

TP-Link OneMesh™
Flexibly Create Whole Home WiFi
Want to build a whole-home WiFi? Archer AX23 supports OneMesh to form seamless coverage throughout your home, preventing drops and lag when moving between signals.

WPA3—The Next Level of Cybersecurity
The latest WiFi security protocol, WPA3, brings new capabilities to improve cybersecurity in personal networks. More secure encryption in WiFi password safety and enhanced protection against brute-force attacks combine to safeguard your home WiFi.

Universal ISP Support
Europe has the most diverse connection types, and TP-Link knows this. Archer AX23 works with all European ISPs by supporting most authentication methods, including the popular L2TP and PPTP methods in your region.

Easy Setup and Use
Whether you prefer the intuitive Tether app or TP-Link's powerful web interface, you can set up your Archer AX23 in minutes.
The Tether app allows you to manage network settings from any Android or iOS device.

Protect Your Children
Block inappropriate content for your children, and customize a time range for better online habits.


New Connection Notification
You will be notified by your phone when new devices connect. Kick off any suspicious connections and block them. It's as simple as that.


Easy Firmware Upgrade
Tired of upgrading firmware? OTA updates enable easy firmware upgrades with a click in the management panel. To keep your security and functions always up-to-date, just turn on the auto schedule.

WAN connection

Feature: Ethernet WAN
WAN connection type: RJ-45

Wireless LAN features

Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
WLAN data transfer rate (max): 1800 Mbit/s
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
WLAN data transfer rate (first band): 574 Mbit/s
WLAN data transfer rate (second band): 1201 Mbit/s
Modulation: OFDMA

Network

Feature: Ethernet LAN
Ethernet LAN interface type: Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Feature: Full duplex
Feature: Flow control support
Feature: Port forwarding
Feature: Dynamic DNS (DDNS)
Feature: Static route
Number of guest networks (2.4 GHz): 1
Number of guest networks (5 GHz): 1
VPN server: OpenVPN, PPTP

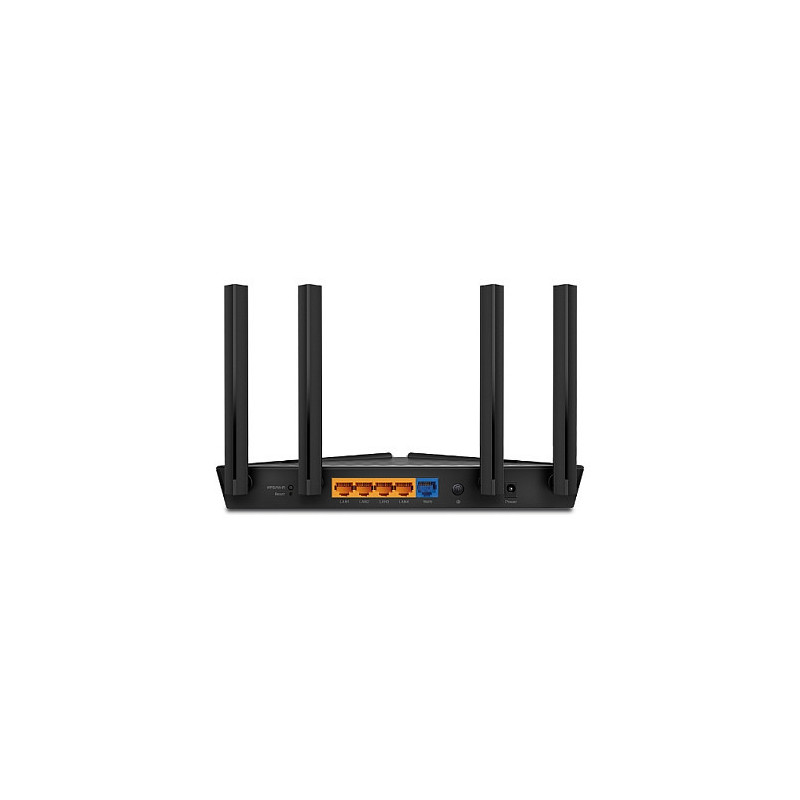

Ports & interfaces

Ethernet LAN (RJ-45) ports: 4
Feature: DC-in jack

Management features

Feature: Web-based management
Feature: Web-based setup wizard
Feature: Bandwidth control
Feature: Reset button
Feature: WPS push button

Security

Security algorithms: 64-bit WEP, 128-bit WEP, WMM, WPA, WPA-PSK, WPA2, WPA2-PSK
Feature: Firewall
Feature: Guest access
Feature: Access Control List (ACL)
Feature: IP address filtering
Feature: URL filtering
Feature: System event log
Feature: DMZ support
Feature: Network address translation (NAT)
NAT functionality: Port Forwarding, Port Triggering, UPnP, DMZ

Protocols

Feature: DHCP client
Feature: DHCP server
Feature: Universal Plug and Play (UPnP)

Design

Product colour: Black
Product type: Tabletop router

Certificates

Certification: FCC, CE, RoHS

Packaging content

Cables included: LAN (RJ-45)
Feature: AC adapter included
Feature: Warranty card
Feature: Quick installation guide

Antenna

Antenna design: External
Antenna connector type: SMA

Features

Feature: Built-in processor
Processor frequency: 1500 MHz
Processor cores: 2

Power

Power source type: DC
Output voltage: 12 V
Output current: 1 A

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 10 - 90%

System requirements

Linux operating systems supported: Yes
Mac operating systems supported: Yes

Weight & dimensions

Width: 260.2 mm
Depth: 135 mm
Height: 41.6 mm

Packaging data

Package width: 500 mm
Package depth: 350 mm
Package height: 395 mm
Package weight: 730 g

Logistics data

Export Control Classification Number (ECCN): 5A992
Harmonized System (HS) code: 8517.62
