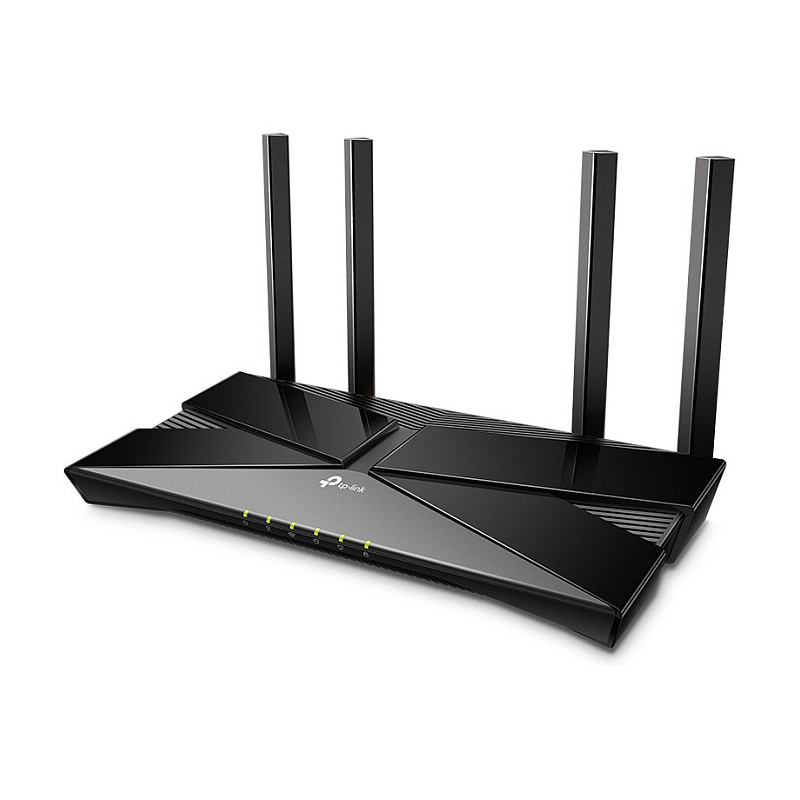

TP-Link Archer AX10 wireless router

TP-Link Archer AX1500 Dual-Band Wi-Fi 6 Router, Black. WAN connection type: RJ-45. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), Top Wi-Fi standard: Wi-Fi 6 (802.11ax), WLAN data transfer rate (max): 1500 Mbit/s. Ethernet LAN interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n. Security algorithms: 64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, Firewall security: SPI. Supported network protocols: IPv4, IPv6

Wi-Fi 6 delivers a huge boost in speed and total capacity. Get on the latest Wi-Fi technology to wipe out all the annoying jittering and slow down and enjoy the future network that loads faster and connects more. The latest 1024-QAM and higher symbol rate combine to boost speeds for newer devices to the Gigabit level. Connect to a 1 Gbps Wi-Fi network with your phone or laptop and enjoy speeds comparable to plugging in an Ethernet cable. Wi-Fi 6 efficiently transmits data, enabling data packets for different applications to share one broadcast and cut the latency. Enjoy flawless video and audio chats, better gaming speeds and instantaneous video loading on different devices—all at the same time. A 1.5 GHz triple-core CPU provides overwhelming power to tackle huge amounts of data transferring, minimizing the latency within your network. Enjoy instant response when you click the play button for online playback and get better quality for the online video chatting. Get Next-Gen Wi-Fi speeds up to 1.5 Gbps. Instant response to all your network activity with a 1.5 GHz triple-core CPU. Broader Coverage 4 antennas and beamforming technology focus signal towards individual clients for broader coverage. Connect Dozens of devices more simultaneous connections and higher average throughput with ofdma. Full gigabit ports take full advantages of broadband speeds up to 1 gbps. Easy setup finish your network upgrade in minutes with tether app. Easy and Smart Connect a new device to your Wi-Fi without using the password, but your voice. EasyMesh-Compatible Flexibly creates a mesh network by connecting to an easymesh-compatible router for seamless whole-home coverage.

WAN connection

Feature: Ethernet WAN
WAN connection type: RJ-45

Wireless LAN features

Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
WLAN data transfer rate (max): 1500 Mbit/s
Wi-Fi standards: Wi-Fi 4 (802.11n), Wi-Fi 6 (802.11ax)
WLAN data transfer rate (first band): 300 Mbit/s
WLAN data transfer rate (second band): 1201 Mbit/s

Network

Feature: Ethernet LAN
Ethernet LAN interface type: Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Feature: Port forwarding
Feature: Dynamic DNS (DDNS)

Ports & interfaces

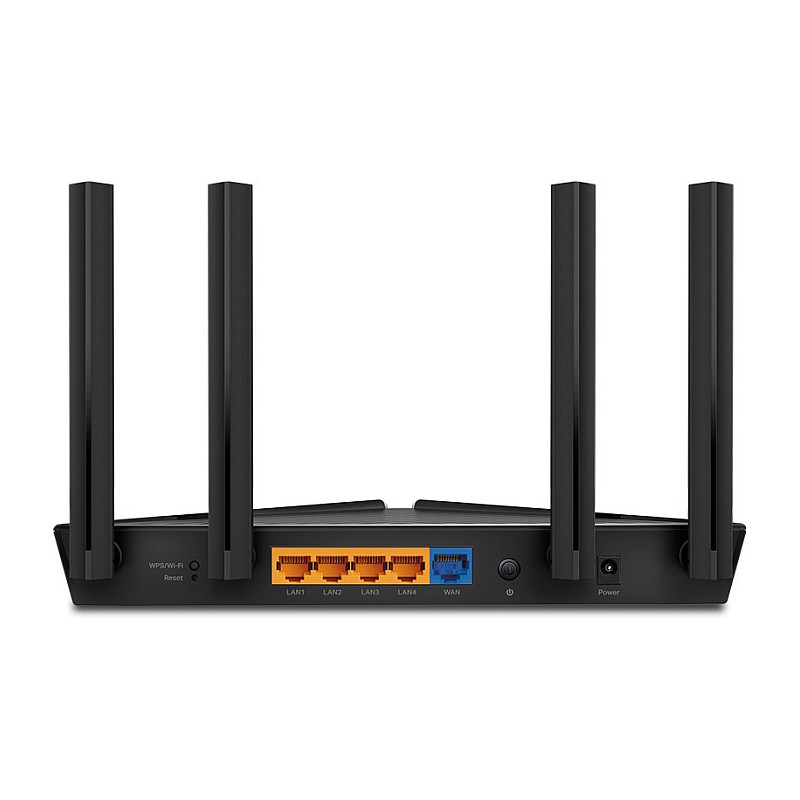

Ethernet LAN (RJ-45) ports: 4
Feature: DC-in jack

Management features

Feature: Reset button
Feature: WPS push button

Security

Security algorithms: 64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Feature: Firewall
Firewall security: SPI
Feature: Guest access
Feature: DMZ support

Protocols

Feature: DHCP client
Feature: DHCP server
Feature: Universal Plug and Play (UPnP)
Supported network protocols: IPv4, IPv6

Design

Product colour: Black
Feature: On/off switch
Product type: Tabletop router

Certificates

Certification: FCC, CE, RoHS

Packaging content

Cables included: LAN (RJ-45)
Feature: AC adapter included
Feature: Quick installation guide

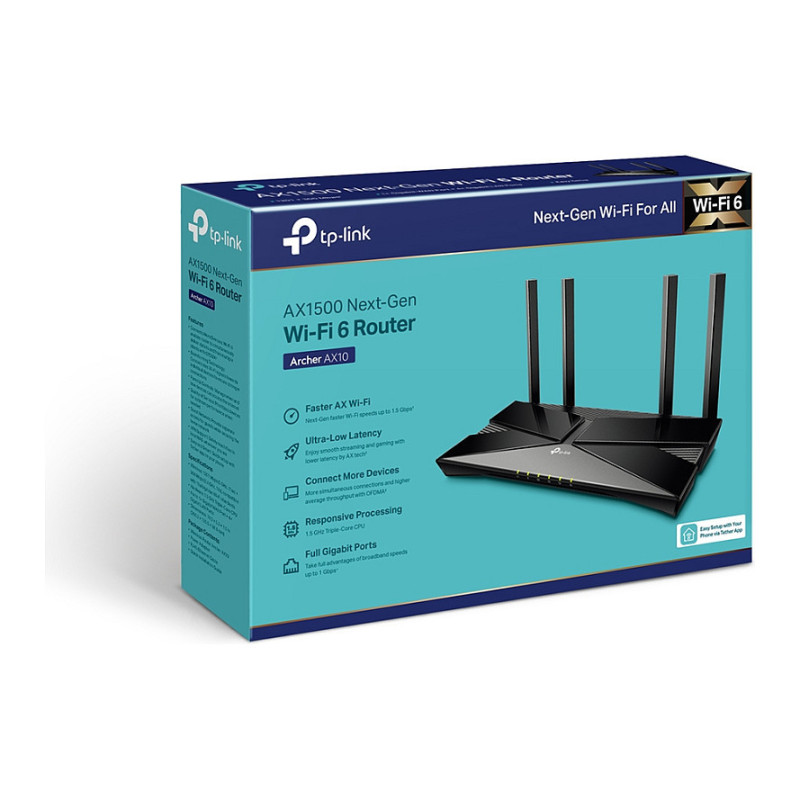

Packaging content: 1 x TP-Link Archer AX1500 Wi-Fi 6 Router, Black

Antenna

Antenna design: External
Antennas quantity: 4
Transmit power: CE: <20dBm(2.4 GHz), <23dBm(5.15 GHz~5.25 GHz); FCC:<30dBm(2.4 GHz & 5.15 GHz~5.825 GHz)

Features

Feature: Built-in processor
Processor frequency: 1500 MHz
Processor cores: 3
Internal memory: 256 MB
Flash memory: 16 MB

Power

Power source type: AC
Output voltage: 12 V
Output current: 1 A

System requirements

Browser supported: Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0
Windows operating systems supported: Windows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows XP
Linux operating systems supported: Yes
Mac operating systems supported: Yes
Feature: Mac compatibility

Weight & dimensions

Width: 260 mm
Depth: 126 mm
Height: 33 mm
Weight: 370 g

Packaging data

Package width: 124 mm
Package depth: 300 mm
Package height: 38 mm
Package weight: 780 g
Number of products included: 1 pc(s)

Logistics data

Quantity per pack: 1 pc(s)
Harmonized System (HS) code: 85176990
Country of origin: Malaysia
