TP-Link AC1200 wireless router

TP-Link AC1200. WAN connection type: RJ-45. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), Top Wi-Fi standard: Wi-Fi 5 (802.11ac), WLAN data transfer rate (max): 867 Mbit/s. Ethernet LAN interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Cabling technology: 10/100/1000Base-T(X). Security algorithms: 64-bit WEP, 128-bit WEP, WDS, WMM, WPA, WPA-PSK, WPA2, WPA2-PSK. Supported network protocols: IPv4, IPv6

Smooth Entertainment with AC1200 Dual Band WiFi
The Archer A6 creates a reliable and blazing-fast network powered by 802.11ac WiFi technology. The 2.4GHz band delivers
speeds up to 300Mbps for everyday tasks like emailing and web browsing while the 5GHz band delivers speeds up to
867Mbps making it ideal for HD video streaming and lag-free online gaming.

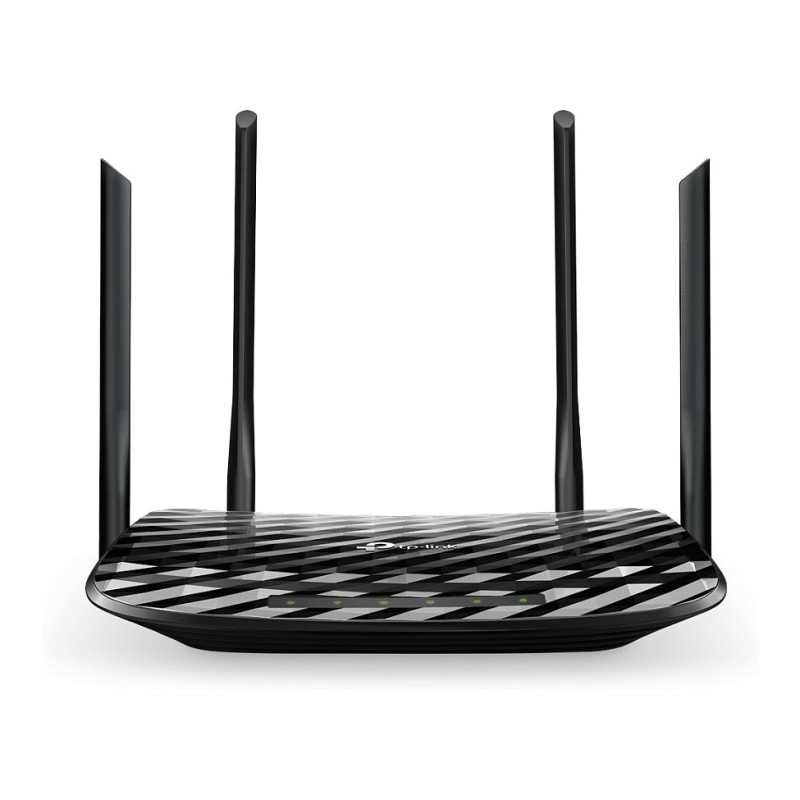

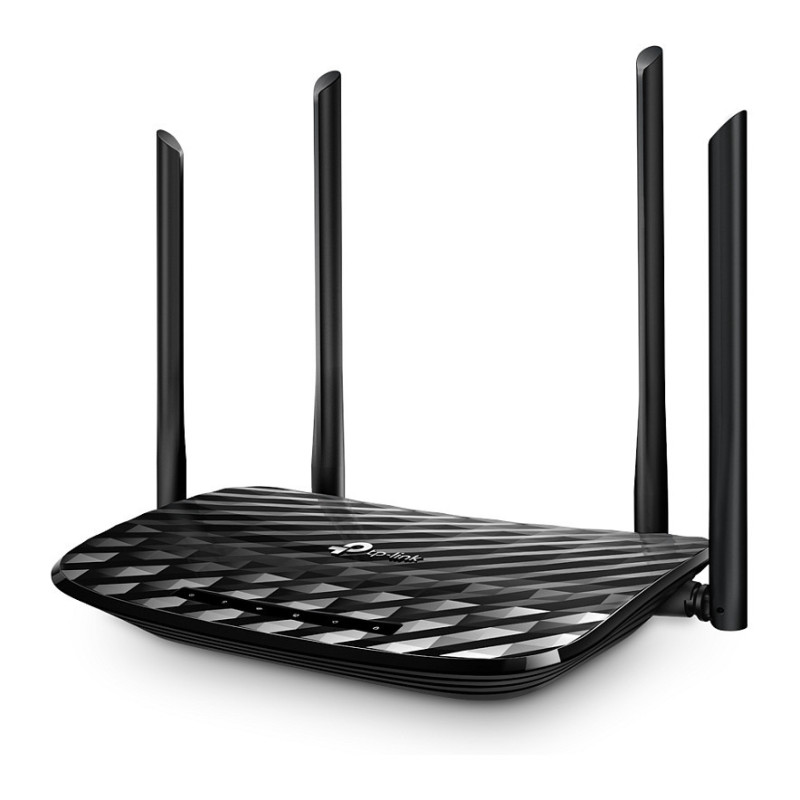

5 High-Performance Antennas for
WiFi Coverage throughout Your Home*
Four external antennas and one internal antenna send WiFi signals to every corner of your home. Stay connected and enjoy fast WiFi whether you are lounging on the sofa or on the balcony. With a powerful chipset, the Archer A6 provides ideal WiFi coverage.

Access Point Mode
Switch to Access Point Mode to share your wired network with other wireless devices.

MU-MIMO
Increase Speed, Throughput, Capacity
MU-MIMO enables the Archer A6 to serve multiple devices simultaneously. Say goodbye to bandwidth congestion and lag as you zip through a more efficient network built for more users and more devices.

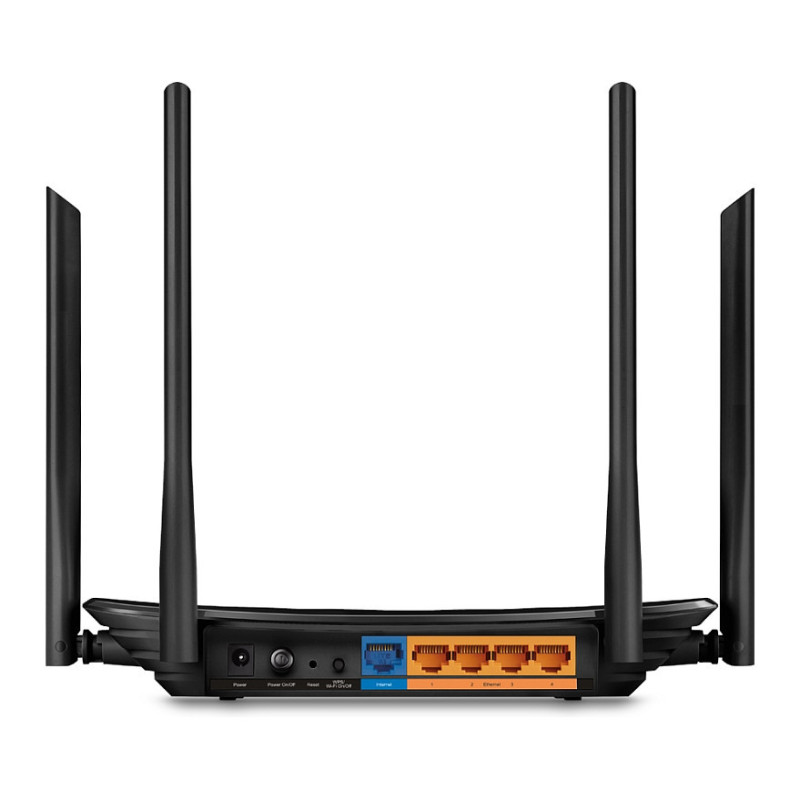

Gigabit Connectivity, 10× Faster
With one Gigabit WAN port and four Gigabit LAN port, speeds can be up to 10× faster than a standard Ethernet
connection. Connect your favorite wired devices to the Archer A6 and get impressed!
Easy Setup and Management with the Tether APP
The free Tether app is available for both Android and iOS devices, making it easy to set up the Archer A6 and manage your network settings.

*Maximum wireless transmission rates are the physical rates derived from IEEE Standard 802.11 specifications. Range and coverage specifications along with the number of connected devices were defined according to test results under normal usage conditions. Actual wireless transmission rate, wireless coverage, and number of connected devices are not guaranteed, and will vary as a result of 1) environmental factors, including building materials, physical objects and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead and 3) client limitations, including rated performance, location, connection quality, and client condition.
**Use of MU-MIMO requires clients to also support MU-MIMO.

WAN connection

Feature: Ethernet WAN
WAN connection type: RJ-45

Wireless LAN features

Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard: Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max): 867 Mbit/s
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)

Network

Feature: Ethernet LAN
Ethernet LAN interface type: Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
Cabling technology: 10/100/1000Base-T(X)
VPN support: OpenVPN，PPTP VPN

Ports & interfaces

Ethernet LAN (RJ-45) ports: 5

Management features

Feature: Web-based management
Feature: Reset button
Feature: WPS push button

Security

Security algorithms: 64-bit WEP, 128-bit WEP, WDS, WMM, WPA, WPA-PSK, WPA2, WPA2-PSK
Feature: Firewall
Feature: Access Control List (ACL)
Feature: Stateful Packet Inspection (SPI)
Feature: DoS attack prevention
Feature: DMZ support

Protocols

Feature: DHCP client
Feature: DHCP server
Feature: Universal Plug and Play (UPnP)
Supported network protocols: IPv4, IPv6

Design

Product colour: Black
Feature: Indication light
Feature: On/off switch
Product type: Tabletop router

Packaging content

Cables included: LAN (RJ-45)
Feature: AC adapter included
Feature: Quick installation guide

Antenna

Antenna design: Internal & external
Antennas quantity: 5
Transmit power: 30 dBmW

Power

Power source type: AC
Output voltage: 12 V
Output current: 1 A

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%

System requirements

Browser supported: Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0
Windows operating systems supported: Yes
Linux operating systems supported: Yes
Mac operating systems supported: Yes

Weight & dimensions

Width: 230 mm
Depth: 144 mm
Height: 35 mm
