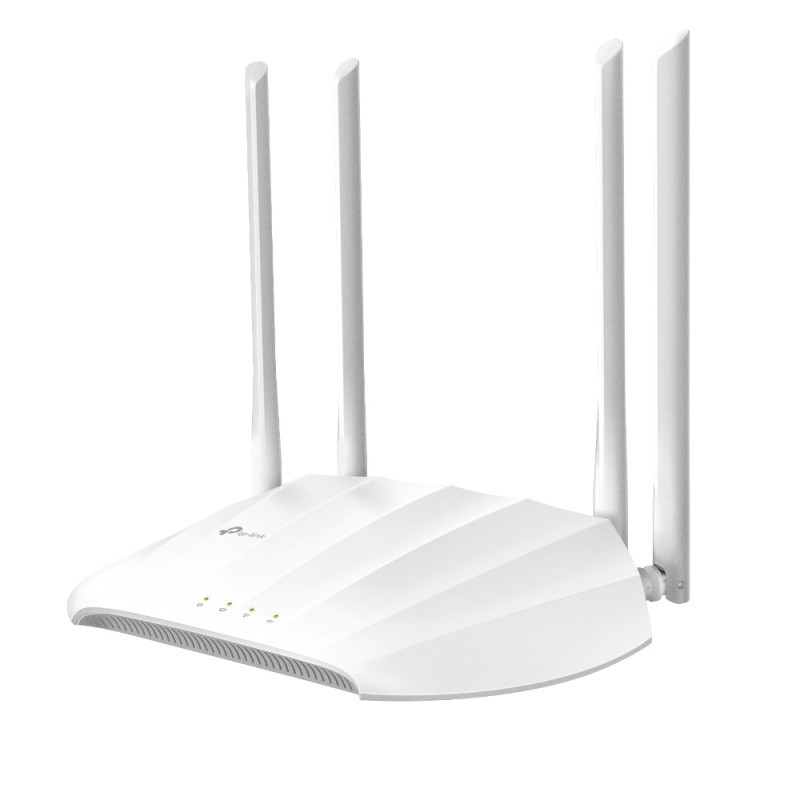

TP-LINK AC1200 Wireless Access Point
Product reference:
18-TL-WA1201
TP-LINK AC1200 Wireless Access Point
TP-LINK AC1200 Wireless Access Point
Product reference:
18-TL-WA1201
TP-LINK AC1200 Wireless Access Point
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
12 month
Delivery from Lithuania in
2 - 3
business days
- AC1200 Dual-Band Wi-Fi- 867 Mbps at 5 GHz and 300 Mbps at 2.4 GHz band.
- Flexible Deployment- Supports Passive PoE to carry electrical power and data simultaneously.
- Multiple Modes- Supports Access Point, Range Extender, Multi-SSID, and Client modes to meet any network needs.
- MU-MIMO Technology- Simultaneously transfers data to multiple devices for 2x faster performance.
- Boosted Coverage- Four fixed antennas equipped with Beamforming technology extend and concentrate the Wi-Fi signals.
- Captive Portal- Offers a designed portal page for heightened security and marketing.
| HARDWARE FEATURES | |
|---|---|
| Interface | 1× 10/100/1000 Mbps Ethernet Port (Supports Passive PoE) |

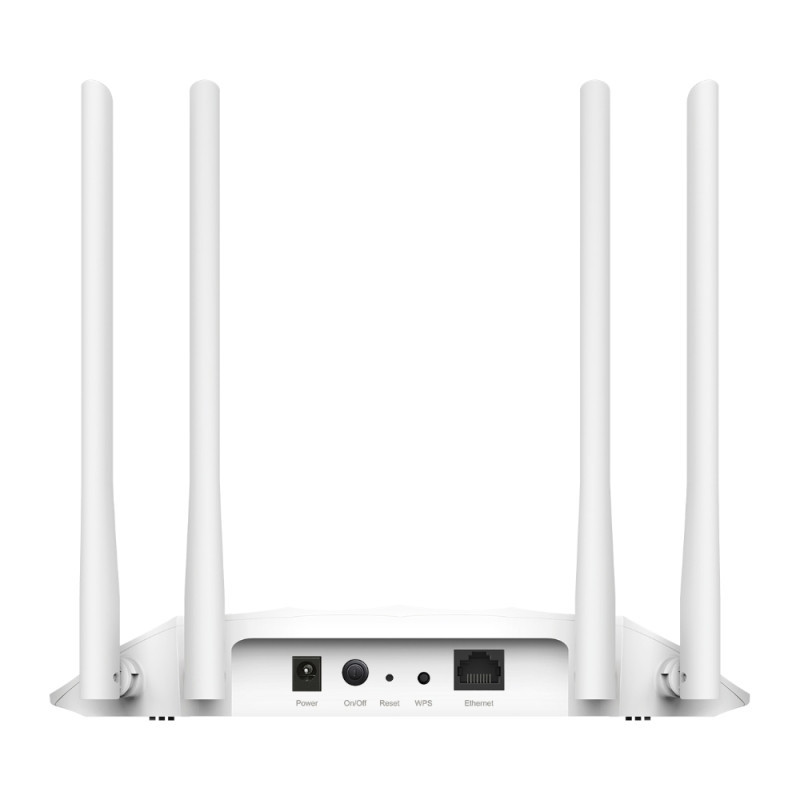

| Button | Power On/Off Button, WPS Button, Reset Button |
| External Power Supply | 12V/1.5A |
| Wireless Standards | IEEE802.11b/g/n 2.4 GHz, IEEE 802.11ac/n/a 5 GHz |
| Dimensions (W x D x H) | 8.9 × 5.7 × 1.5 in (225 × 145.5 × 37 mm) |
| Antenna Type | 4 Fixed High Performance Antennas |
| WIRELESS FEATURES | |
|---|---|
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate | 867 Mbps at 5 GHz, 300 Mbps at 2.4 GHz |
| Reception Sensitivity | 5 GHz: 11a 6 Mbps: -95 dBm, 11a 54 Mbps: -81 dBm 11ac VHT20(MCS0): -94 dBm, 11ac VHT20(MCS8): -71 dBm 11n HT40(MCS0): -91 dBm, 11n HT40(MCS7): -71 dBm 11ac VHT80(MCS0): -88 dBm, 11ac VHT80(MCS9): -63 dBm 2.4 GHz: 11g 54Mbps: -78 dBm 11n HT20(MCS0): -92 dBm, 11n HT20(MCS7): -74 dBm 11n HT40(MCS0): -88 dBm, 11n HT40(MCS7): -72 dBm |
| Transmit Power | CE: <20dBm(2.4GHz), <23dBm(5.15GHz~5.25GHz) FCC: <30dBm(2.4GHz5GHz) |
| Wireless Modes | Access Point, Range Extender, Client, Multi-SSID |
| Wireless Functions | Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics, Wireless Multicast Forwarding, DHCP Server, Access Control |
| Wireless Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA-PSK2 encryptions |
| DHCP | Server, DHCP Client List |
| Quality of Service | WMM |
| Advanced Functions | Captive Portal |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |
| Package Contents | Wireless Access Point TL-WA1201 Power Adapter RJ45 Ethernet Cable Quick Installation Guide PoE Power Injector |
| System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser |
| Environment | Operating Temperature: 0°C ~ 40°C(32°F ~ 104°F) Storage Temperature: -40°C ~ 70°C (-40°F ~ 158°F) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
| Protocol Support | IPv4, IPv6 |
